SOtM tX-USBexp Quick Start Manual

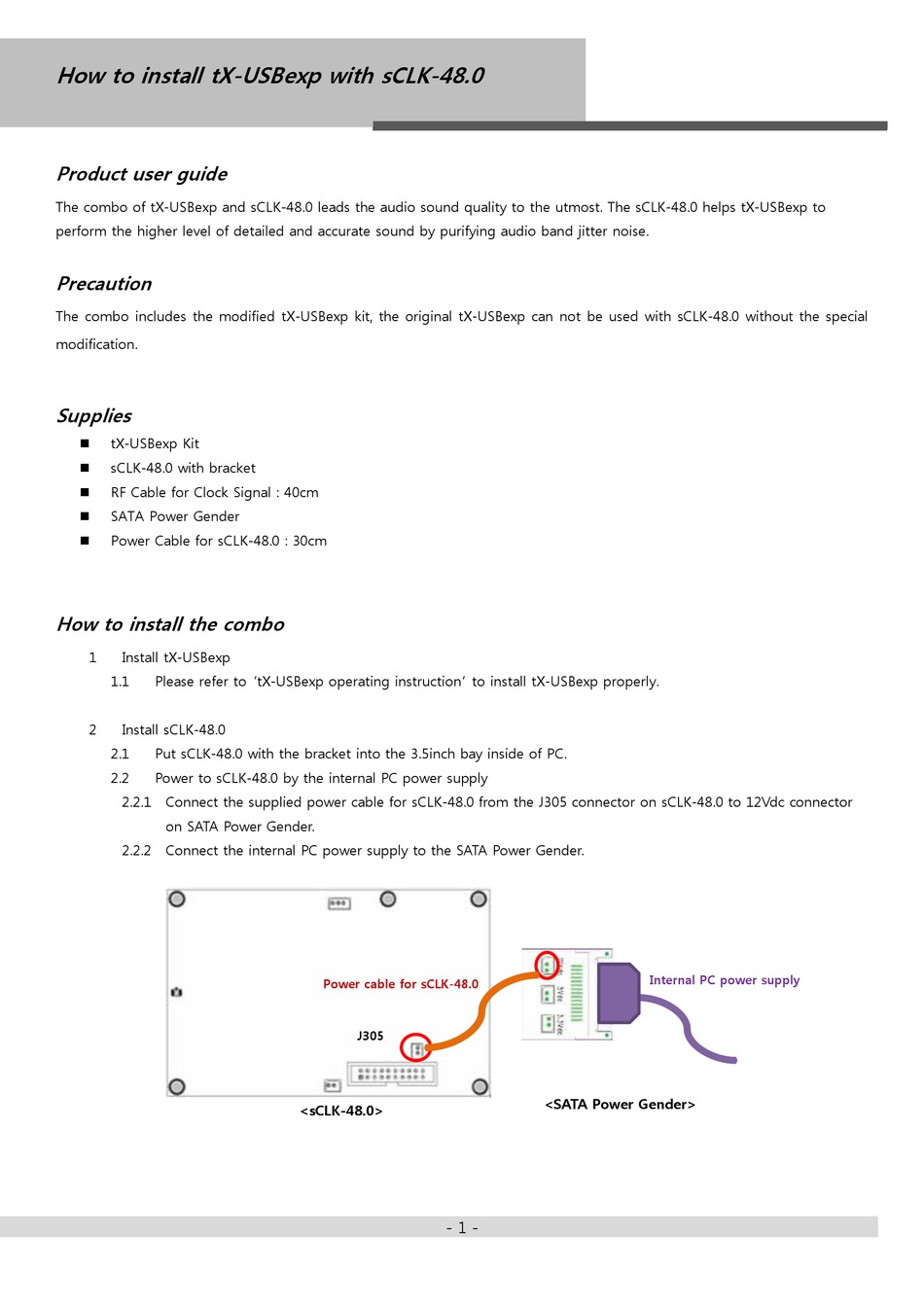

How to install tX-USBexp with sCLK-48.0

Product user guide
The combo of tX-USBexp and sCLK-48.0 leads the audio sound quality to the utmost. The sCLK-48.0 helps tX-USBexp to
perform the higher level of detailed and accurate sound by purifying audio band jitter noise.
Precaution
The combo includes the modified tX-USBexp kit, the original tX-USBexp can not be used with sCLK-48.0 without the special
modification.

Supplies

tX-USBexp Kit

sCLK-48.0 with bracket

RF Cable for Clock Signal : 40cm

SATA Power Gender

Power Cable for sCLK-48.0 : 30cm


How to install the combo

1 Install tX-USBexp
1.1 Please refer to 'tX-USBexp operating instruction' to install tX-USBexp properly.
2 Install sCLK-48.0
2.1 Put sCLK-48.0 with the bracket into the 3.5inch bay inside of PC.
2.2 Power to sCLK-48.0 by the internal PC power supply
2.2.1 Connect the supplied power cable for sCLK-48.0 from the J305 connector on sCLK-48.0 to 12Vdc connector
on SATA Power Gender.
2.2.2 Connect the internal PC power supply to the SATA Power Gender.
Power cable for sCLK-48.0
J305
<sCLK-48.0>
- 1 -
Internal PC power supply
<SATA Power Gender>
