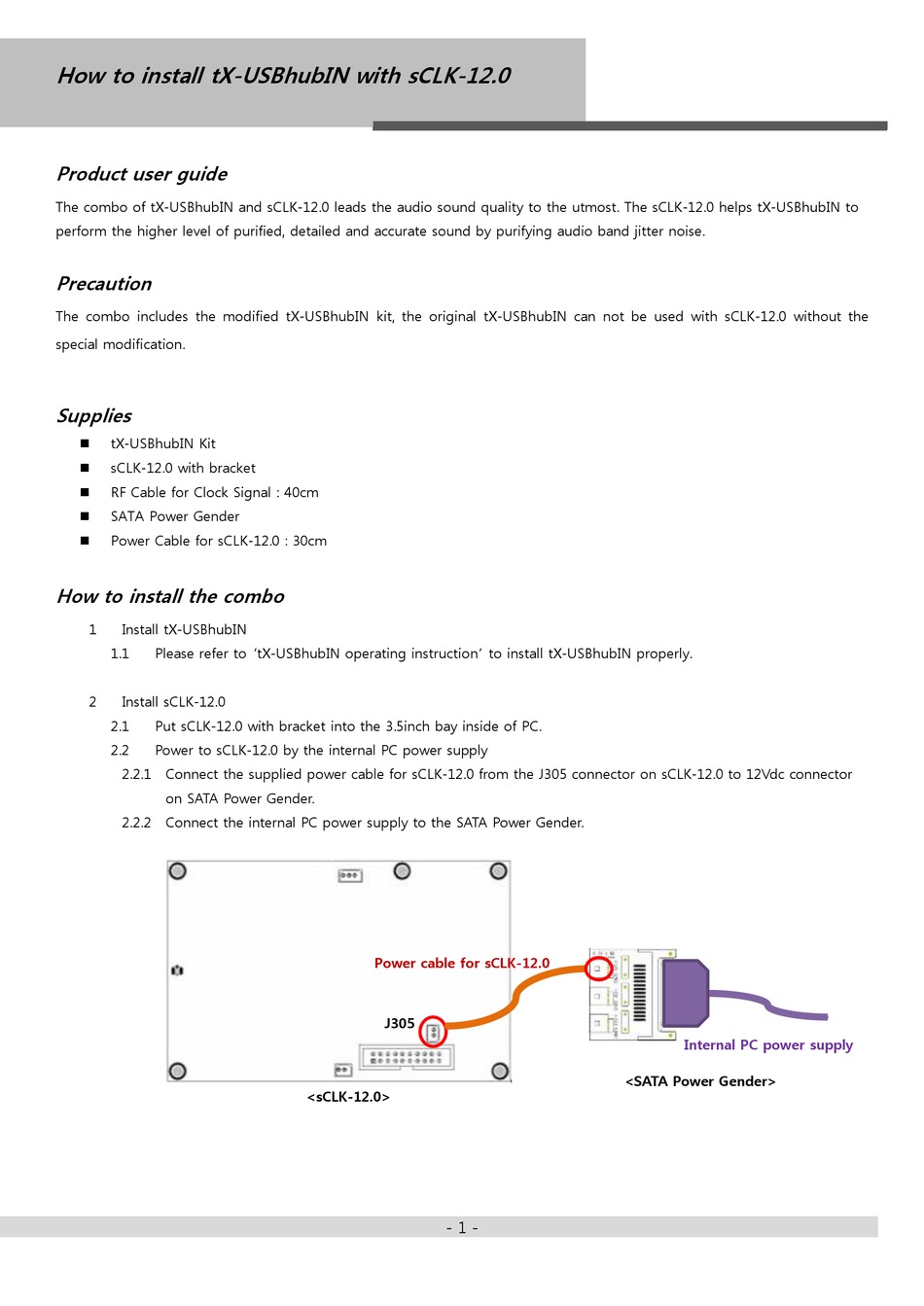

How to install tX-USBhubIN with sCLK-12.0
Product user guide
The combo of tX-USBhubIN and sCLK-12.0 leads the audio sound quality to the utmost. The sCLK-12.0 helps tX-USBhubIN to
perform the higher level of purified, detailed and accurate sound by purifying audio band jitter noise.
Precaution
The combo includes the modified tX-USBhubIN kit, the original tX-USBhubIN can not be used with sCLK-12.0 without the
special modification.

Supplies

tX-USBhubIN Kit

sCLK-12.0 with bracket

RF Cable for Clock Signal : 40cm

SATA Power Gender

Power Cable for sCLK-12.0 : 30cm


How to install the combo

1

Install tX-USBhubIN

1.1 Please refer to 'tX-USBhubIN operating instruction' to install tX-USBhubIN properly.
2

Install sCLK-12.0

2.1 Put sCLK-12.0 with bracket into the 3.5inch bay inside of PC.
2.2 Power to sCLK-12.0 by the internal PC power supply
2.2.1 Connect the supplied power cable for sCLK-12.0 from the J305 connector on sCLK-12.0 to 12Vdc connector
on SATA Power Gender.
2.2.2 Connect the internal PC power supply to the SATA Power Gender.
Power cable for sCLK-12.0
J305
<sCLK-12.0>
- 1 -
Internal PC power supply
<SATA Power Gender>
