ActionTec Verizon GT784 Instructions

Instructions to Connect
your New Gateway Router

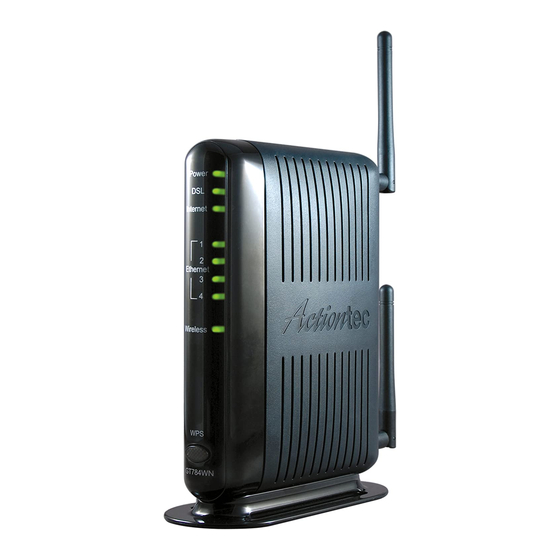

The Verizon GT784 gateway/router is
replacing your current 6110 Bridged device.
Please note: This process below should be
followed only if you are attaching another piece
of equipment (router/switch, etc) to this Verizon
Gateway GT784. If your existing set up requires
the Verizon GT784 to be put in bridge mode,
please follow these quick easy steps.
If you configure the Verizon GT784 in bridge mode, this will
disable the wireless functionality.
1

Before You Begin

Disconnect your existing Verizon modem/router including all
2
cables and cords and any other equipment attached to the
1
Verizon modem/router.
3
2

RouTeR SeTuP

Connecting your new gateway/router

4
3
A
Connect Yellow Ethernet cord from Ethernet port on PC
or laptop to any of the 4 Ethernet ports on the back of the
5
wireless router
4
B
Connect phone line to phone jack and wireless router
• Do not place a filter on phone line connected to the
6
5
router
• Use a 2-for-1 adapter If connecting a phone on the
same jack.
7
6
• Make sure to place a filter on the line connected to
the telephone
C
8
Connect Power supply to router and plug into power outlet
7
d
Turn router on using the power on/off switch
9
8
10
9
A
11
10
1
11
2
3

CoNfIGuRING BRIdGe Mode

Logging in to the Verizon GT784

4
To access the Verizon GT784, enter the following gateway
address into the browser address line:
5
6
REPINST6110
7
B C
d
http://192.168.1.1
3
4
The "Login" screen will appear
• Create and enter a new password for the Verizon GT784
5
• "Re-type the New Password" in the appropriate field
• Make sure to write the password down on a piece of paper
and keep it in a safe place for future reference
6
• Select your local time zone from the "Time Zone" drop-
down list
• Click Apply
7
1 8
2 9
10 3
4
11
5

Advanced Setup

• After the changes are applied, the Verizon GT784 Home
6
screen will appear.
• Click on the Advanced Setup tab located at the top of the screen
7
1
8
2
9
3
10
4
11
5
6
Advanced Setup Screen will Appear
• Click on "WAN IP Settings" located under "IP Addressing"
7
