SSR Motorsports Sprinter 12 Owner's Manual

Electric balance bike
Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sprinter 12 and is the answer not in the manual?

Questions and answers

Related Manuals for SSR Motorsports Sprinter 12

Summary of Contents for SSR Motorsports Sprinter 12

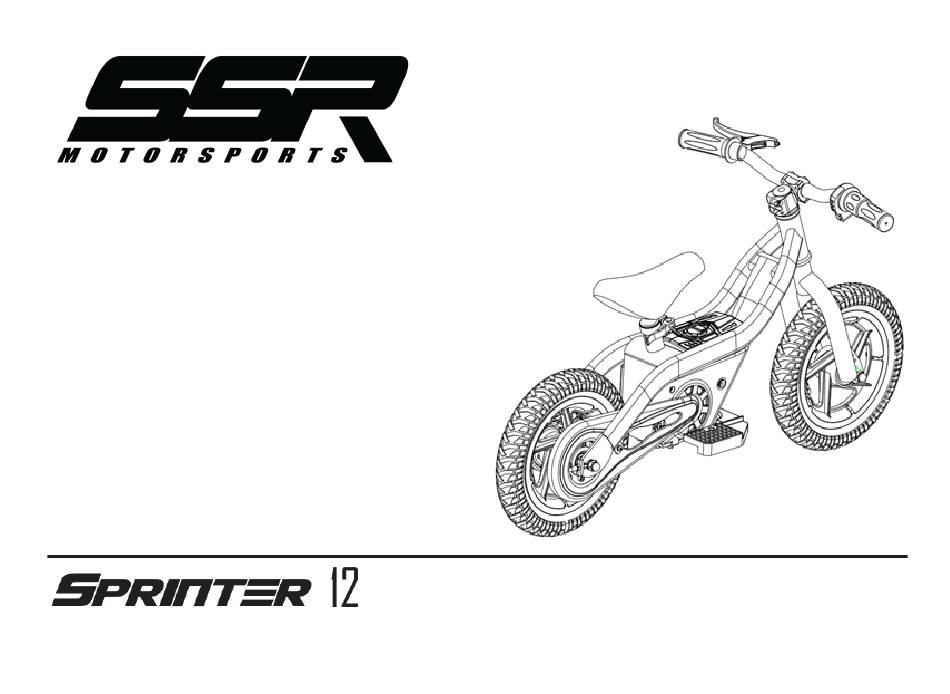

  • Page 1 Owner’s Manual...
  • Page 2 Preface Thank you for purchasing the Sprinter 12” Electric Balance Bike. For your safety, you should read this owner’s manual carefully and follow these instructions before you ride. This electric balance bike is designed for children. This manual introduces regular maintenance and service, please follow these instructions, it will help you to keep your balance bike in good working order and functioning for years to come.
  • Page 3 Warning: Means if you DO NOT follow the instructions, it could lead to serious injury to the rider. If this vehicle is sold, you should pass this manual on to the new owner together with the vehi- cle. Do not copy or translate any part of this manual without the expressed written permission of SSR Motorsports.

  • Page 4: Table Of Contents

    Table of Contents Preface Warning! 1. Before Use..........................2 1.1 Riding Hazards........................2 1.2 Box Contents.........................2 1.2.1 Box Contents Breakdown...................3 1.2.2 Product Specifications......................4 1.2.3 Description of Parts.....................5 1.2.4 How to assemble the Sprinter12..................6 2. Safe operation of the Sprinter12....................12 2.1 Weight Limit.........................13 2.2 Maximum Riding Range......................13 2.3 Speed Limiter........................13 3.

  • Page 5: Before Use

    1. BEFORE USE 1.1 RIDING HAZARDS This electric balance bike is a personal electric vehicle toy, our technology and production pro- cesses utilize strict testing for every component of the electric balance bike to ensure safety. Rid- ing without reading and understanding the contents of this manual may lead to injury. Falling, losing control, collisions, or failure to this e-balance bike manual, may lead to injury or even death.

  • Page 6: Box Contents Breakdown

    1.2.1 Box Contents Breakdown Main Product Battery Charger + Tool Battery Owner’s Manual...

  • Page 7: Product Specifications

    1.2.2 Product Specifications Net Weight 22 lbs. Dimensions 980x510x568mm Operating Range 6-10km E-Balance Bike Operating Temperature Range 32°-104°F Max Climbing Angle 6~9° Max Weight Capacity 50 lbs. Capacity 4.0Ah Type 18650 high rate discharge battery Battery Charging Duration 3-6 hours Charge Cycle Estimate 300 times Type...

  • Page 8: Description Of Parts

    1.2.3 Description of Parts...

  • Page 9: How To Assemble The Sprinter12

    1.2.4 How to assemble the Sprinter 12 STEP 1: Install the handlebar A: M5X20 Allen Bolt (4) 1. Center the handlebar (C) in the handlebar stem (D) B: Upper Handlebar Clamp 2. Install the upper handlebar clamp (B) using the 4 allen bolts (A) C: Handlebar with the allen wrench from the tool kit.
  • Page 10 STEP 2: Install the footrests Screw Hole Locations Install the footrests over the lower portions of the frame and install the screws in the locations shown above. Secure the screws tightly.
  • Page 11 STEP 3: Install the front wheel Position the front wheel in the fork so that you can install the front wheel mounting hardware. Make sure you align the locking washers into the slots on the front fork. Fasten the nuts tightly.
  • Page 12 STEP 4: Install the battery A. Install the battery: Align the female plug on the battery and the male plug on the bike. Then press the battery case downward until the two plugs are completely seated. (Wiggle the battery slowly, if it moves, it means the plugs are not completely seated.
  • Page 13 STEP 5: Adjusting the seat Lever A. Release the lock, adjust the seat height as needed, then lock it again. B. DO NOT adjust the seat higher than the limit line printed on the seat post.
  • Page 14 STEP 6: Check the battery capacity Battery capacity display: After completing the installation steps above, press the red button to check the battery capacity. Full battery capacity: Green, Yellow, and Red lights are on. Half battery capacity: Yellow, Red light on; Green light is off. Low battery capacity: Red light on, green and yellow light are off.

  • Page 15: Safe Operation Of The Sprinter12

    2. Safe operation of the Sprinter 12 We hope every user will ride the electric balance bike safely and enjoy it. You can recall the memories of learning how to ride a balance bike, electric toy car, or bicycle; any of these experiences can be applied.

  • Page 16: Weight Limit

    2.1 Age & Weight Limit To ensure safety and reduce damage, user must follow the minimum and maximum load ratings: Minimum Age: 36 Months Maximum Load: 50 Lbs. Overloading the balance bike may increase the possibility of injury. 2.2 Maximum Riding Range There are a lot of factors that will affect riding range &...

  • Page 17: Battery Usage

    3. Battery Usage This section mainly describes the charging method of the electric balance bike, how to maintain the battery, some security issues, and the battery specifications. For users’ safety, maximum extent of prolonging the battery life, and to improve battery performance, please follow these instructions. 3.1 Battery Power •...

  • Page 18: Charging Process

    3.2 Charging Process Ensure the charging port is dry. When the LED light turns red, it means the power is low, the battery will need to be charged. Charging Port Switch off the electric balance bike. (*lights on handlebar are off) Plug the charger cable into the electric balance bike, then connect the charger to power.

  • Page 19: Temperature

    3.3 Temperature The best charging temperature is 50 degrees to 104 degrees F. Extreme cold and extreme heat will not completely allow the battery to charge. 3.4 Battery Specifications Contents Specifications Battery Lithium Battery Charging Time 2-3 Hours Voltage Initial Capacity Working Temperature 5°F~122°F Charging Temperature...

  • Page 20: Cleaning Electric Balance Bike

    4.1 Cleaning the Electric Balance Bike Disconnect the charger and turn off the Electric balance bike. Wipe the covers with a clean cloth using a plastic polish/cleaner. Avoid using water or other liquids on the Electric balance bike when cleaning. If water or other liquids seep into the Electric balance bike, it will cause permanent damage to the internal electronics.

  • Page 21: Warranty

    5. Warranty Thank you again for purchasing the Sprinter12 Electric Balance Bike, we would like to provide you with excellent af- ter-sale service from your purchase date forward. ELECTRIC BALANCE BIKE LIMITED WARRANTY PERIODS All warranty periods begin on the date that the Electric Balance Bike is first delivered to you, or placed into dealer ser- vice, such as in the case of a dealer demonstrator.
  • Page 22 Damage caused by alterations or modifications not approved by SSR Motorsports, such as use of non-SSR Genuine Parts or Accessories. Damage caused by modifications that would change the original Electric Balance Bike specifications including, without limitation, modifications of any electric motor, electric motor controller, wiring or lighting components.
  • Page 23 Any parts replaced under coverage of this limited warranty become the property of SSR Motorsports. If you should suffer a second failure of the same item on your Electric Balance Bike during the warranty period, we ask that you immediately inform your servicing dealer or SSR Motorsports of that circumstance.
  • Page 24 When contacting SSR Motorsports, we urge you to write rather than call , so that you can provide us with a detailed description of your concern.
