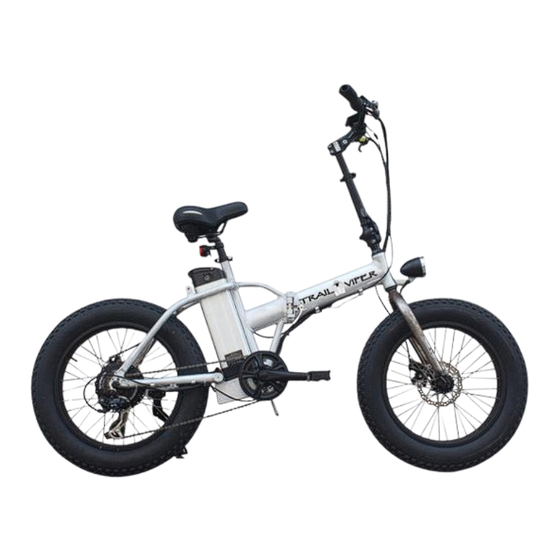

Trail Viper Manual Electric Bicycles WARNING: You are the only person responsible for your personal safety. Don’t operate or ride any Electric Bicycle unless you are already a competent bicycle rider. The bike can quickly reach high speed at 20MPH ,caution must be exercised when operating the bike. Carefully read the following information(even if you are an experienced rider),wear a helmet and safety equipment, and obey all the provincial and federal vehicles laws.
Page 2
Table of Contents Assembly Instructions ………………………………………………………1-5 Assemble Stem & front wheel …………………………………….. Assemble pedals ……………………………………………………. Assemble seat& Tire Pressure ……………………………………. Charging ……………………………………………………………. Braking System ……………………………………………………………….6 Derailleur System………………………………………………………………7 How to operate the e-bike ……………………………………………………8 Assembly Instructions Box Contents: 1x Bike Frame with Rear Wheel Attached. 1x Front Wheel 1x Stem&...
Page 3
WARNING: Please keep the keys to your electric bicycle in a safe place .Each set of keys are unique to your particular electric bicycle, and we will keep a copy of your key on file for better service. Assemble the Bike: Stem & Front wheel Tools required( received in your Tool Kits)
Page 4
Steps: 1. Insert the top stem to bottom stem and locked 2. lock the protect part. 3. insert the front wheel into fork and disc brake pads 4. insert the quick release axle into the front hub 5. Make as hard as you can. Safety is the first thing . Assemble the Bike: Pedals ,Set &...
Page 5
2. Seat Installation CAUTION: Less than 1/2 a turn on the adjusting nut can make the difference between safe clamping force and unsafe clamping force. CAUTION: A poorly adjusted seat can result in personal injury or death. 3. Tire Pressure CAUTION: The tires have not been filled with air to the correct capacity for shipping purposes.
Page 6
CAUTION: Fully charge the battery before the first use! Failure to do this can result in decreased battery performance for the life of the bike and avoid your battery warranty. CAUTION: Do not attempt to open or repair your battery or charger. If you need another battery or charger contact your dealer CAUTION: Do not touch the battery sockets or blades with your hands,...
Page 7
Bake system: Alu alloy brake lever, left side control front disc-brake, right side control rear disc-brake. When braking, the current is off, motor stop working. Derailleure system: Shimano 6 gears...
Page 8
Display: 5 level PAS speeds, 10mph 12mph 15mhp 17mhp 20mph Light button, battery display. Time, PAS system, trip,etc, For details, please check LCD display manual. This is round botton to operation LCD display. Step: 1. Turn Battery ON 2. Push the round botton for 2s, display on. You can choose different speed to ride.
