iiNet TP-Link TD-W9970 Quick Setup Manual page 4

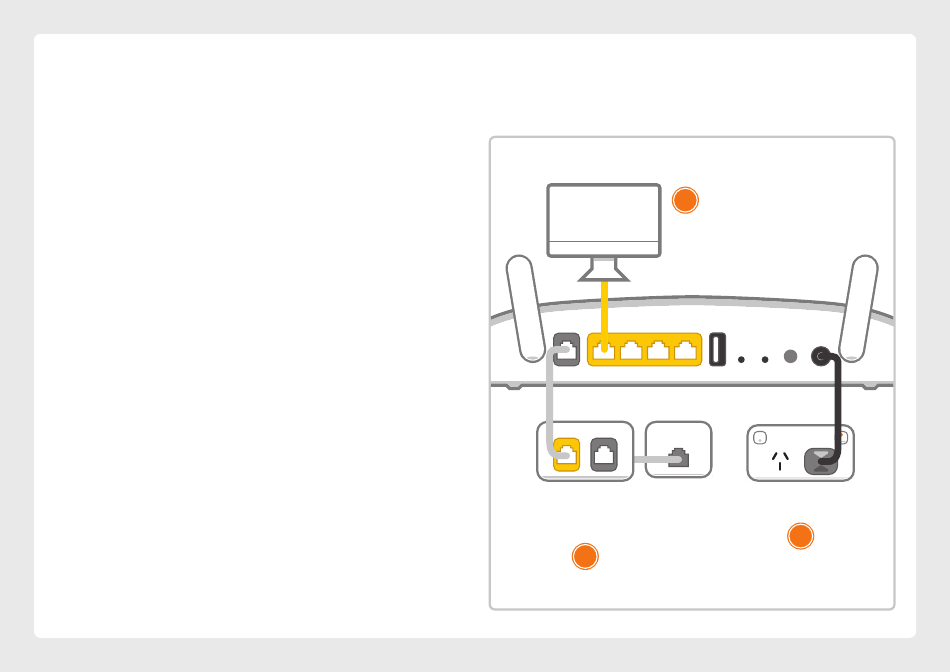

Plug in for ADSL2+
1. Use the supplied power cable to connect the
power port to a power outlet and ensure it is
turned on.
2. Use the supplied Phone cable to connect your
modem's grey VDSL port directly to the phone
socket on the wall OR the MODEM port on the line
filter, then plug the line filter into the wall.
Note: Devices plugged into any other phone
sockets in your home should have a line filter.
3. You can use an additional Ethernet cable to
connect your computer to any of your modem's 4
LAN ports. Alternatively, follow the steps later in
this guide to connect devices via WiFi.
4. Turn to next page to continue setup.
4
3
Ethernet Cable
Plug into your computer's
Ethernet Port
LAN4
VDSL LAN3 LAN2 LAN1 USB
WAN
MODEM LINE MODEM PHONE
Phone Cable
Plug directly into the
phone socket or via the
line filter's MODEM port.
2
(Optional)
WiFi WPS ON/OFF Power
Power Cable
Plug into power outlet
1
