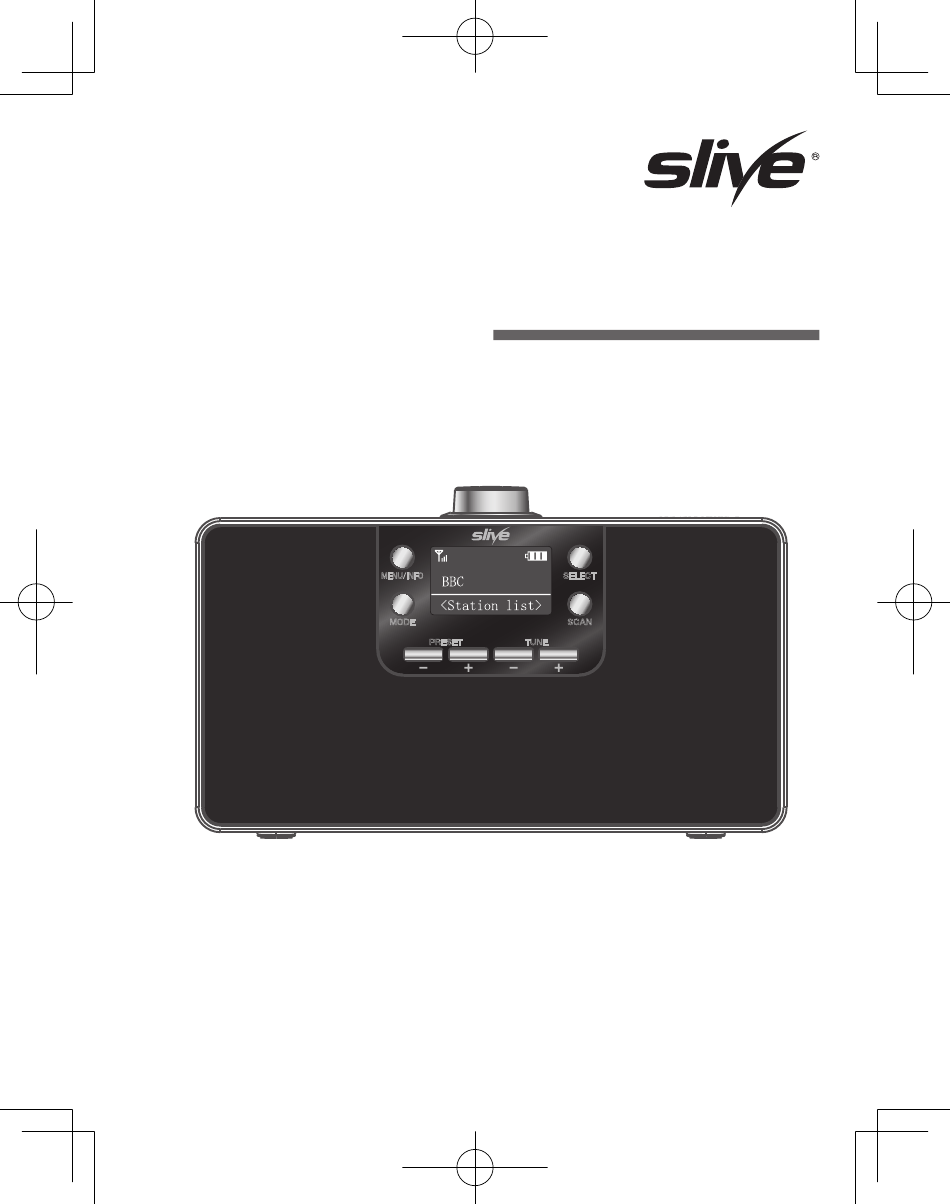

- Page 1 USER MANUAL DAB/DAB+/FM Radio Bluetooth SL-718 Model No: MENU/INFO SELECT MODE SCAN PRESET TUNE Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully. Please keep this manual for future reference.
-
Page 2: Table Of Contents
Contents Safety precautions Menus tree 14-15 Check the package contents Using Bluetooth Getting started Basic operation Location of controls Setting sleep time Setting alarm Setting up your DAB radio Setting time Using rechargeble battery Factory reset SW version Charging the battery Troubleshooting Battery level indicate Technical specification... -
Page 3: Safety Precautions
Safety Precautions Ensure that you read all of the safety information before using this unit WARNING! ■ Unit To reduce the risk of fire, electric shock or product damage, ● Do not let water or other liquids drip or splash inside the unit. ●... -
Page 4: Check The Package Contents
■ Battery ● Danger of explosion if battery is incorrectly replaced.Replace only with the type recommended by the manufacturer. ● When disposing of the batteries,please contact your local authorities or dealer and ask for the correct method of disposal. ● Do not near or expose to flame. ●... -
Page 5: Getting Started
Getting started Location of controls 1.SPEAKER 9. TUNE - 2.MENU/INFO 10.TUNE + 3.LCD DISPLAY 11.ROD ANTENNA 4.SELECT 12.BATTERY DOOR 5.MODE 13.HEADPHONE SOCKET 6.SCAN 14.MICRO USB IN SOCKET 7.PRESET - 15.STANDBY /VOLUME/SNOOZE 8.PRESET +... -
Page 6: Setting Up Your Dab Radio
Setting up your DAB radio 1. Unclip the antenna and fully extend it(F.1). 2.Connect the micro USB end of the charging cable to the back of the radio (DC INPUT SOCKET)(F.2). 3.Plug the standard USB end of the charging cable into a computer or other USB charging device. -
Page 7: Charging The Battery
Note:When the battery is charging,It is normal for it to get warm.The efficiency of the battery may decrease over time. 2.Charging the battery When the battery starts charging,The battery bar keeps running on the display,When the battery is fullly charged,It will show ‘... -
Page 8: Using Headphones (Not Included)
Using headphones (not included) A stereo headphone jack has been provided so that the radio can be used without disturbing others. Plug in the headphones at the point marked and adjust the listening volume to your chosen level. Note: Excessive sound pressure from earphones and headphones can cause hearing loss. -
Page 9: Changing The Digital Radio Station
Note: The auto scan will search for the entire DAB Band III channels, If there is no stations found after auto scan, the radio will display "Full Scan", All the stations that have been found will be stored automatically.After the scan has finished, the first alphanumerically found stations will be automatically selected and played. -
Page 10: Manually Tuning To Digital Radio Station
Note: If there is already an existing DAB station stored under a preset, it will be over written when you store the new station. DAB Manual tune 1. Press and hold the MENU/INFO button, and press the TUNE + button to select “2:Manual tune”(F.6). And then press the SCAN button to final confirm. -
Page 11: Prune(Clearing The Invalid Radio Stations)
1. Press and hold the MENU/INFO button, and press the TUNE + button to select ‘3:DRC’, and then press the SCAN button to confirm (F.9). 2. Press the TUNE - /+ buttons to choose ‘1:DRC off / 2:DRC low / 3: DRC high’ and press the SCAN button to final confirm(F.10). -
Page 12: Fm Radio
FM RADIO Listening to FM radio Auto scan and change the FM radio station 1.Turn the unit on. 2. Press the MODE button to choose FM mode. 3. To activate auto scan, press and hold the SCAN button, The display shows ‘Scanning’ together with a slide bar that indicates the progress of the scan and the amount of stations that have been found so far (F.13). -
Page 13: Storing A Radio Station As A Preset
Storing a FM station preset 1.Your radio can store up to 20 FM radio stations in its preset memories for instant access to your favourite stations. 2. Choose the FM radio station frequency that you wish to preset. 3. Press and hold the ‘SELECT’ button to enter the <Preset Store>. -
Page 14: Changing The Scan Setting For Fm Radio
Scan setting In FM mode, press and hold the MENU/INFO,select “1:scan setting”. and press the SCAN button to confirm(F.15 ). Press the TUNE- / +buttons to choose “1:All stations / 2:Strong stations only”, and then press the SCAN button to confirm the setting(F.16). -
Page 15: Menus Tree
Menus: The following controls are used to move about the menu tree to choose and select the required settings: Press and hold the MENU/INFO button to enter into the “MENU”. Press the TUNE- / +buttons to navigate the desired option,and then press the SCAN button to confirm,or you can press the MENU/INFO button to exit the operation. -
Page 16: Using Bluetooth
View stations information Note: there is a diversity of station information transmitted by broadcast, and this radio also offers a shortcut for you to view them. In DAB mode, press the MENU/INFO button repeatedly, the display will show the information through DLS (Dynamic Link Segment) ,Program type,Ensemble Frequency, Audio Bit Rate,Stereo,Time. -
Page 17: Basic Operation
Basic operation Setting Sleep Time This function enables your unit to switch to standby mode by itself after a set sleep time 1. Press and hold the MENU/INFO button,Select ‘System’and choose ‘1:Sleep’,and then press the‘SCAN’ button to confirm. 2. Press the TUNE - /+ buttons to choose 30, 60, 90 or 120 minutes,and press the SCAN button to confirm.‘Zzz’... -
Page 18: Setting Time
Alarm active day: Daily When the display shows ‘Alarm Saved’, the alarm setting is successful,the ‘ ’ will show on the display. 4. To temporarily switch off alarm, press to activate Snooze function when the alarm is sounding. Press the SNOOZE button can set snooze time of 10 minutes. -
Page 19: Factory Reset
Factory reset Note: If moving the radio to another location in the country the pre-tuned and stored DAB stations may no longer be available and it will be necessary to reset the radio back to the factory settings. 1.With the unit switched on, press and hold the MENU/INFO button and press the TUNE + button to select‘System’and then press the SCAN button to cofirm. -
Page 20: Sw Version
SW version Displays the software version of your DAB Troubleshooting Problem Solution .Use the VOLUME dial to turn the volume up I can’t hear any sound .Make sure that the radio has been able to locate DAB/FM .Make sure that DAB coverage The display shows ‘NO exists in your area SERVICES AVAILABLE’in DAB... -
Page 21: Technical Specification
Technical Specification Model Number SL-718 AC Adaptor (Not included) Input AC100-240V, 50/60Hz, 0.5A Speaker Output Power 1W×2 DAB/DAB+ Frequency Range FM radio 87.5-108MHz 128×64 Backlit dot matrix LCD LCD Display 18650 3.7V 2000mAh Battery Capacity Lithium rechargeable battery 101mm high×190mm wide×80mm deep... -
Page 22: Correct Disposal
www.shengli-cn.com Correct disposal of this product This marking indicates that this product should not be disposed with other household waste throughout the EU.To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.To return your used device,please use the return and collection system where product was purchased.They can take this Product for...
