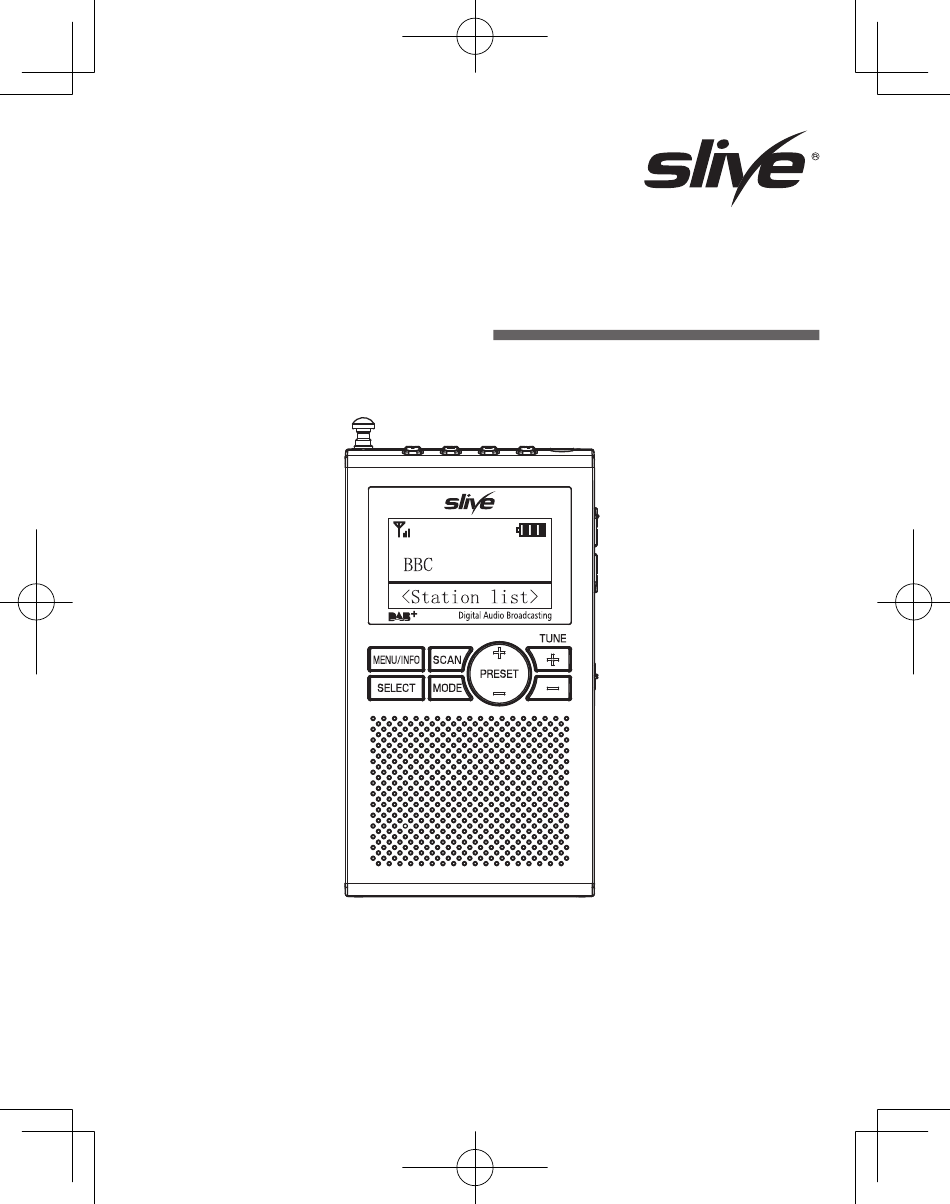

- Page 1 USER MANUAL Pocket DAB & FM Radio With speaker SL-P01 Model No: Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully. Please keep this manual for future reference.
-
Page 2: Table Of Contents
Contents Important safety information Setting up your pocket radio Check the package contents Charging the battery Your pocket DAB radio SL-P01 Using your Pocket DAB/FM radio Switch on and standby Adjusting the volume Locking the keys Using the headphones Changing the mode... -
Page 3: Important Safety Information
Important safety information • Keep the product and all its parts out of reach of small children. • This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. -
Page 4: Setting Up Your Pocket Radio
Setting up your pocket radio Carefully remove your DAB Digital Radio from the box. You may wish to store the packaging for future use. In the box Inside the box you will find • 1 x Pocket portable DAB/FM radio •... - Page 5 1.Connect the micro USB end of the charging cable to the USB socket on the right side of the pocket radio (next to the STANDBY switch). 2.Plug the standard USB end of the charging cable into a computer or other USB charging device. 3.Plug the earphones supplied into the headphone socket on the top of the pocket radio.The earphones also work as the radio aerial and so these need to be connected when you first...
-
Page 6: Your Pocket Dab Radio Sl-P01
Getting started Your SL-P01 Front controls 13 14 15 1.LCD DISPLAY 2.MENU/INFO 3.SCAN 4.PRESET + 5.TUNE + 6.SELECT 7.MODE 8.PRESET - 9.TUNE - Top controls 10.AERIAL 11.DIRECT PRESET STATION 1 12.DIRECT PRESET STATION 2 13.DIRECT PRESET STATION 3 14.DIRECT PRESET STATION 4 15.HEADPHONES SOCKET... -
Page 7: Using Your Pocket Dab/Fm Radio
Using your Pocket DAB/FM radio Switching your pocket radio on and standby • Slide up the standby switch for 2 seconds on the right side of the pocket radio to turn on the unit. • With the unit on, Slide up the standby switch for 2 seconds on the right side of the pocket radio to go back to standby mode. -
Page 8: Changing The Mode
Changing the mode • Press the‘MODE’ button to change between DAB and FM mode. ‘DAB’ or ‘FM’, as appropriate will be displayed to confirm the mode. DAB RADIO Listening to digital radio For initial use, your radio will conduct a full scan store all DAB+ radio stations possibly it can detected. -
Page 9: Changing The Digital Radio Station
Changing DAB stations( DAB mode ): 1.Press and release the ‘Tune-’ or ‘Tune+’ buttons to scroll through the available stations in the station list. 2.Listen to the DAB radio stations that you would like to listen. Storing a DAB station preset 1.Your pocket radio can store up to 20 DAB radio stations in its preset memories for instant access to your favourite stations. -
Page 10: Drc (Dynamic Range Control)
Note: A”?”next to a radio station name means the station is inactive or unavailable. (F.3) (F.4) (F.5) Manual tune Setting 01:5A 174.928MHz 1:Full scan 02:5B 176.640MHz 2:Manual tune 03:5C 178.352MHz 5A 174.928MHz 3:DRC DRC (Dynamic Range Control) You can set the level of the compression of stations to eliminate the differences in dynamic range or sound level between radio stations. -
Page 11: Fm Radio
(F.8) (F.9) Setting Prune? 4:Prune 1: <No> Yes 5:System 2: No <Yes> FM RADIO Listening to FM radio Auto scan and change the FM radio stations 1.Turn the unit on. 2. Press the MODE button to choose FM mode. 3. To activate auto scan, press and hold the SCAN button, The display shows ‘Scanning’... -
Page 12: Listening To A Preset
4.‘Preset Store’ <1:(Empty)> is displayed. Press and release the ‘Tune –‘ or ‘Tune +’ buttons to scroll to the preset location that you would like to store the radio station to (1-20). 5.Press and release the ‘SCAN’ button, the display will confirm ‘Preset X stored’(F.10), where ‘X’... -
Page 13: System Menu Options
System menu options There are several system menu setting options available on your pocket radio that you can change. 1.Press and hold the ‘MENU/INFO’ button to access the Menu. 2.Use the ‘TUNE +’ buttons to scroll to ‘System’. 3.Press and release the ‘SCAN’ button to confirm. 4.Use the ‘Tune +’... - Page 14 • <4:Timer> <Set Timer> to choose off, 30, 60. 90 ,120 minutes.When the timer setting is successful. The ‘ ’ will show on the display.Press any key to turn it off when the alarm is sounding. You can easily count how much time you are suppose to spend on sport.
-
Page 15: Troubleshooting
Troubleshooting Problem Solution I can’t hear any sound .Use the VOLUME dial to turn the volume up .Make sure that the radio has been able to locate DAB/FM stations The display shows ‘NO SERVICES .Make sure that DAB coverage exists in your area AVAILABLE’in DAB mode .Try adjusting the position of aerial or... -
Page 16: Correct Disposal
www.shengli-cn.com Correct disposal of this product This marking indicates that this product should not be disposed with other household waste throughout the EU.To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.To return your used device,please use the return and collection system where product wad purchased.They can take this Product for...
