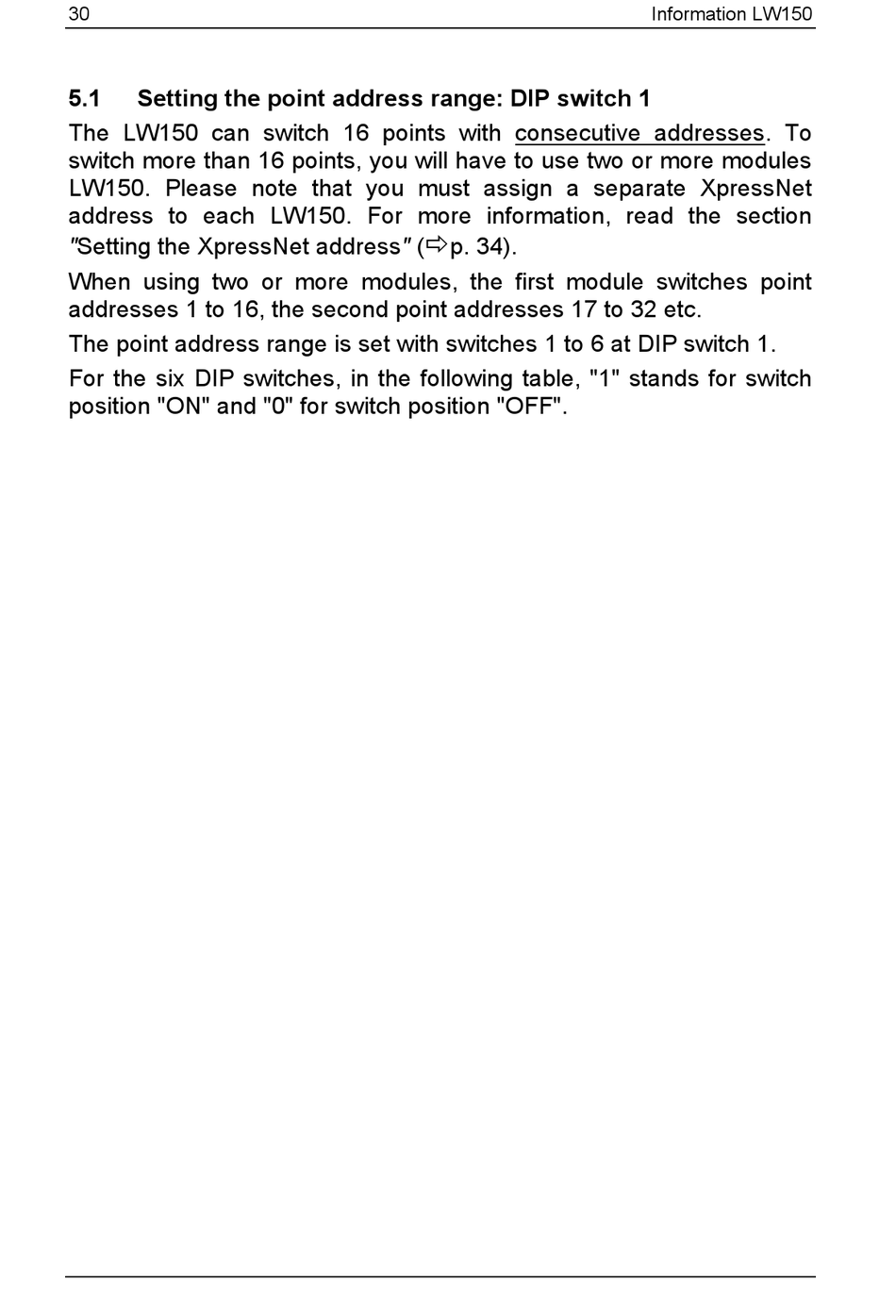

5.1 Setting the point address range: DIP switch 1
The LW150 can switch 16 points with consecutive addresses. To
switch more than 16 points, you will have to use two or more modules
LW150. Please note that you must assign a separate XpressNet
address to each LW150. For more information, read the section

"Setting the XpressNet address" ( p. 34).
When using two or more modules, the first module switches point
addresses 1 to 16, the second point addresses 17 to 32 etc.
The point address range is set with switches 1 to 6 at DIP switch 1.
For the six DIP switches, in the following table, "1" stands for switch
position "ON" and "0" for switch position "OFF".
