Safety 1st 49512A Manual

IMPORTANT INFORMATION:
q H igh, prolonged fever requires
medical attention especially for
young children. Please contact
your physician.
q D o not allow children to take their
temperatures unattended.
q R ead the enclosed instructions
carefully to ensure accurate temperature readings. Temperature readings are affected by many
factors including exercise, drinking hot or cold beverages prior to taking a reading as well as
technique.
q Do not allow children to walk or run during temperature taking. The probe could present a hazard.
q Oral, underarm, and rectal temperatures vary by approximately 0.9°F/0.5°C.
SPECIAL PRODUCT FEATURES:
q Fast 40-second rectal readings! 60-second
oral and underarm readings.
q F lexible tip with over insertion gauge for
added comfort.
q ° F (or °C) Stops flashing when reaches
highest temperature.
q M emory recall of last reading.
q A utomatic shut-off after approximately 10
minutes for longer battery life.
q L ow battery indicator " ".
q W ater resistant probe.
WHAT IS A "NORMAL" TEMPERATURE?:
Temperature readings vary in different individuals. A normal temperature refers to each individual's
average temperature while they are well. Normal average temperatures range from 97°F/36.1°C to
100°F/37.7°C when taken orally. See "RECTAL USE" and "UNDERARM (AXILLARY) USE" for the oral
equivalent of a rectal or underarm reading.
HOW TO TAKE TEMPERATURE:
1. Select oral, underarm or rectal as your measurement site based on the individual requiring a
temperature measurement.
2. Push the on-off button located beside the display window. The display will read: 188.8°F
a function check indicating the unit is working properly.
If you choose to recall the last measured temperature, hold the on-off button down for two
seconds, and the last temperature will be displayed on the screen for two seconds. The
thermometer will read -- - °F (or -- - °C) and begin measuring temperature when exposed
to body heat.
3. The °F (or °C) symbol will continuously flash until completion of the temperature taking process.
Please note that the " " indicates a low battery. An "ERR" message in the window indicates
your unit is not functioning properly. Do not expect an accurate temperature reading if this low
battery indicator is present. Out-of-range indicator displays "L" when measurement is lower than
90.0°F (32.2°C) and "H" when higher than 109.9°F (43.3°C).
4. When peak temperature is reached, the °F (or °C) symbol will stop flashing.
5. Read and record the temperature and time for reference. The reading will automatically be
stored in the memory.
6. Push the on-off button to turn the unit off. If you do not turn the unit off, it will shut off
automatically in approximately 10 minutes.
RECTAL USE:
q Commonly used for babies, young children or when it is difficult to take an oral or underarm
temperature.
q L ubricate probe tip with a water-soluble lubricant or petroleum jelly.
q G ently insert the probe tip no more than 1/2 inch (1.3) cm into the rectum. Do not force the
tip into the rectum if resistance is encountered. Please note the ring at the end of the probe
helps ensure you don't insert too far. Reference over insertion gauge above.

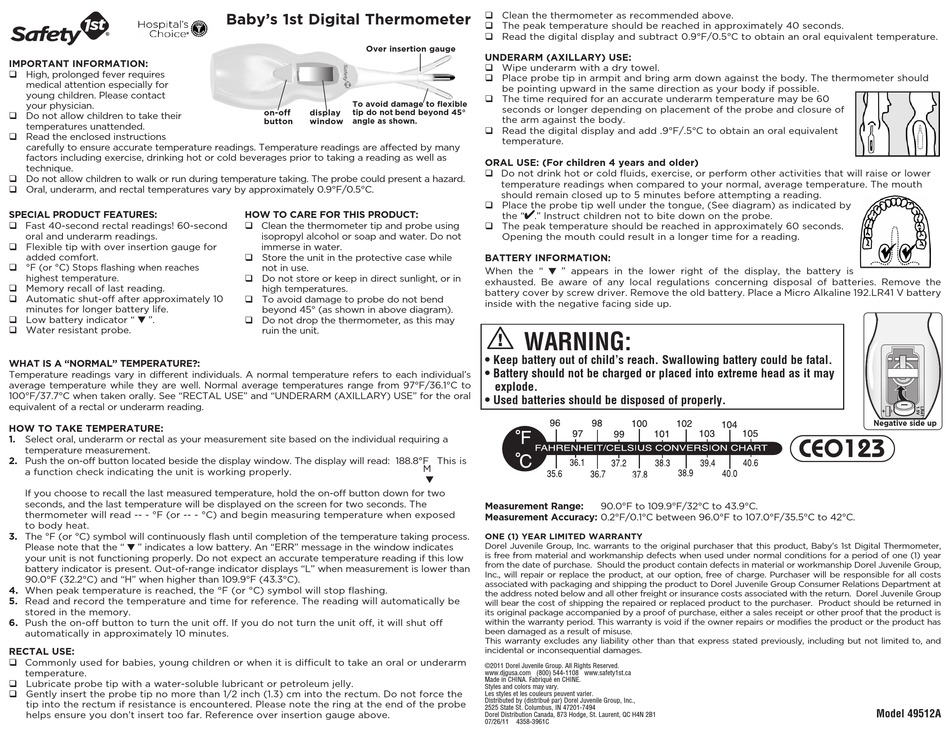

Baby's 1st Digital Thermometer
Over insertion gauge
To avoid damage to flexible
on-off display tip do not bend beyond 45°
button window angle as shown.
HOW TO CARE FOR THIS PRODUCT:
q Clean the thermometer tip and probe using
isopropyl alcohol or soap and water. Do not
immerse in water.
q S tore the unit in the protective case while
not in use.
q D o not store or keep in direct sunlight, or in
high temperatures.
q T o avoid damage to probe do not bend
beyond 45° (as shown in above diagram).
q D o not drop the thermometer, as this may
ruin the unit.
q C lean the thermometer as recommended above.
q T he peak temperature should be reached in approximately 40 seconds.
q R ead the digital display and subtract 0.9°F/0.5°C to obtain an oral equivalent temperature.
UNDERARM (AXILLARY) USE:
q W ipe underarm with a dry towel.
q P lace probe tip in armpit and bring arm down against the body. The thermometer should
be pointing upward in the same direction as your body if possible.
q T he time required for an accurate underarm temperature may be 60
seconds or longer depending on placement of the probe and closure of
the arm against the body.
q R ead the digital display and add .9°F/.5°C to obtain an oral equivalent
temperature.
ORAL USE: (For children 4 years and older)
q Do not drink hot or cold fluids, exercise, or perform other activities that will raise or lower
temperature readings when compared to your normal, average temperature. The mouth
should remain closed up to 5 minutes before attempting a reading.
q P lace the probe tip well under the tongue, (See diagram) as indicated by
the " ." Instruct children not to bite down on the probe.
q T he peak temperature should be reached in approximately 60 seconds.
Opening the mouth could result in a longer time for a reading.
BATTERY INFORMATION:
When the " " appears in the lower right of the display, the battery is
exhausted. Be aware of any local regulations concerning disposal of batteries. Remove the
battery cover by screw driver. Remove the old battery. Place a Micro Alkaline 192.LR41 V battery
inside with the negative facing side up.
WARNING:
• Keep battery out of child's reach. Swallowing battery could be fatal.
• Battery should not be charged or placed into extreme head as it may
explode.
• Used batteries should be disposed of properly.
This is
M
Measurement Range:
Measurement Accuracy: 0.2°F/0.1°C between 96.0°F to 107.0°F/35.5°C to 42°C.
ONE (1) YEAR LIMITED WARRANTY
Dorel Juvenile Group, Inc. warrants to the original purchaser that this product, Baby's 1st Digital Thermometer,
is free from material and workmanship defects when used under normal conditions for a period of one (1) year
from the date of purchase. Should the product contain defects in material or workmanship Dorel Juvenile Group,
Inc., will repair or replace the product, at our option, free of charge. Purchaser will be responsible for all costs
associated with packaging and shipping the product to Dorel Juvenile Group Consumer Relations Department at
the address noted below and all other freight or insurance costs associated with the return. Dorel Juvenile Group
will bear the cost of shipping the repaired or replaced product to the purchaser. Product should be returned in
its original package accompanied by a proof of purchase, either a sales receipt or other proof that the product is
within the warranty period. This warranty is void if the owner repairs or modifies the product or the product has
been damaged as a result of misuse.
This warranty excludes any liability other than that express stated previously, including but not limited to, and
incidental or inconsequential damages.
©2011 Dorel Juvenile Group. All Rights Reserved.
www.djgusa.com (800) 544-1108 www.safety1st.ca
Made in CHINA. Fabriqué en CHINE.
Styles and colors may vary.
Les styles et les couleurs peuvent varier.
Distributed by (distribué par) Dorel Juvenile Group, Inc.,
2525 State St. Columbus, IN 47201-7494
Dorel Distribution Canada, 873 Hodge, St. Laurent, QC H4N 2B1
07/26/11 4358-3961C
90.0°F to 109.9°F/32°C to 43.9°C.
Negative side up
Model 49512A
