Leica DIGITAL-MODUL-R Instructions Manual page 15

Important: To change the focusing screen, only use
the tweezers; do not attempt to use your bare hands
and ensure that you do not touch the focusing
screen or the mirror with the tweezers or your hand
while inserting, to prevent dirt and scratches on the
sensitive surfaces.

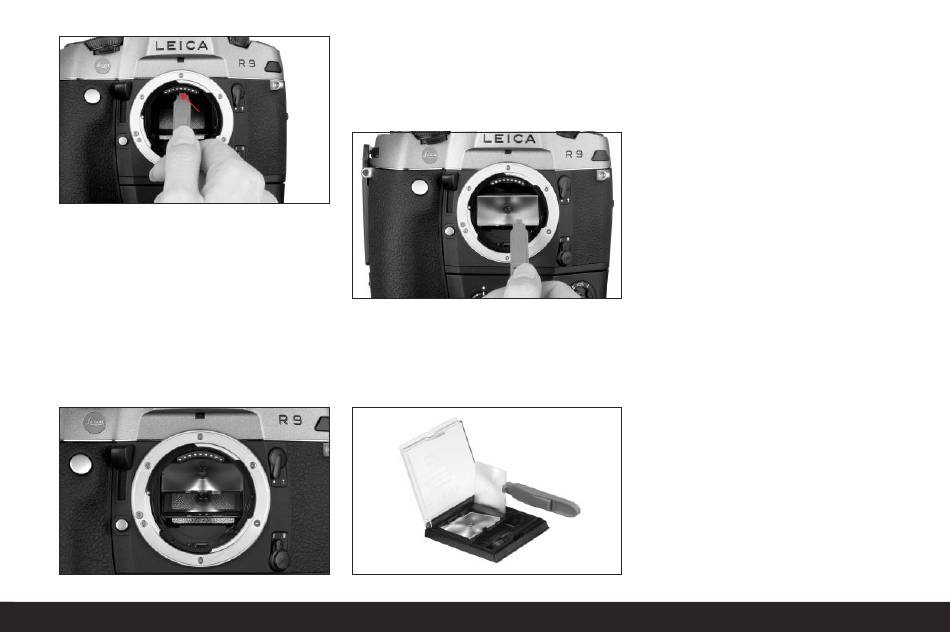

3. Pull the latch forward so that the frame and the in-
lying focusing screen swing downwards (Figure 3).
4. Then grip the tab on the focusing screen with the
tweezers (front right).
5. Lift the focusing screen upwards out of the frame
and
6. then remove it downwards (Figure 4).
2
Note: For secure temporary storage while making
the change, you should place the focusing screen
in the slit provided in the container, as shown in
Figure 5.
3
Inserting
1. Pick up the focusing screen lying in the container by
its tab using the tweezers,
2. remove it from its compartment by exerting a slight
pressure on the spring groove,
3. move it diagonally upwards into the opening in the
bayonet, and
4. place it in the frame.
5. Now place the cam on the front of the tweezers
behind the frame retaining spring and
6. press the frame upwards until it clicks into place.
Important: Do not use force; if necessary check
that the focusing screen is correctly positioned in
the frame.
4
Use the tweezers to place the replaced focusing screen
under the spring groove in the container and click it
into place in its compartment.
5
Detailed guide / Preparation / 73
