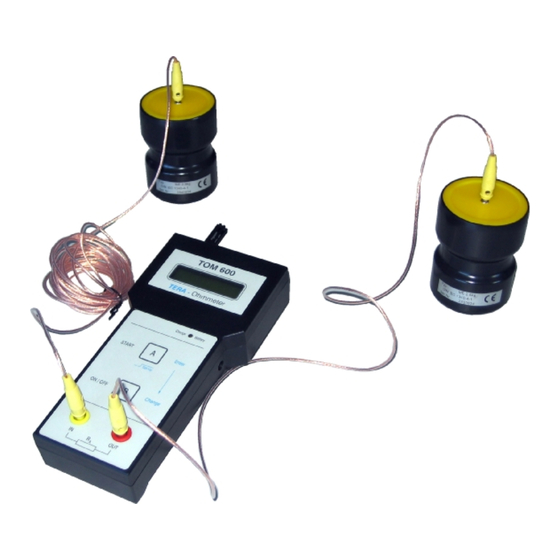

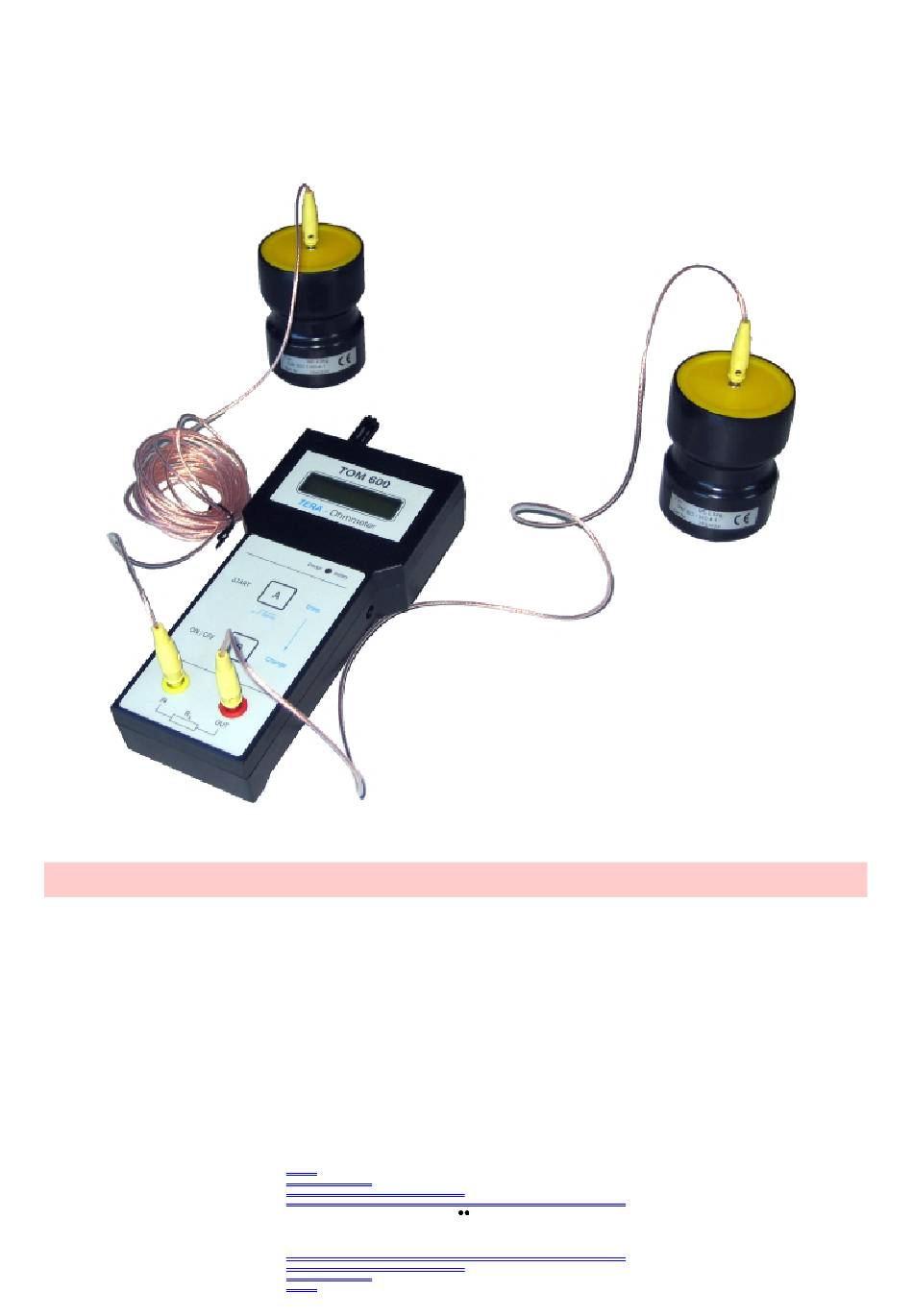

TERA Ohmmeter 600
SYSTEM PROF. DR. ING. HANS KLEINWÄCHTER
TOM600(ME)
The TERA Ohmmeter TOM 600 operates with the Voltage-Current-Measurement.
12
High resistances up to 2x10
Ohm (2 TERA Ohm) can be measured with a voltage of
100 volts and a precision of 5%
As peculiarity, the ambient temperature and the humidity will be measured and stored to
every measured resistance value
KLEINWACHTER
Forschungs-. Entwlcklungs-.
Produktlons-u. Vertrlebsges.m.b.H
1
Advertisement
Table of Contents
Related Manuals for Tera TOM 600 ME
Summary of Contents for Tera TOM 600 ME
- Page 1 The TERA Ohmmeter TOM 600 operates with the Voltage-Current-Measurement. High resistances up to 2x10 Ohm (2 TERA Ohm) can be measured with a voltage of 100 volts and a precision of 5% As peculiarity, the ambient temperature and the humidity will be measured and stored to...
- Page 2 2. Operating Instruction 2.1 Start Operation The TERA Ohmmeter TOM 600 is delivered with 4 x Mignon (AA) NiMH – Batteries, and is directly ready to start. For charging the batteries and stationary operation use the enclosed plug power supply only.
- Page 3 If the timer should be turned off, immediately appears at the display: >2.0xE12W T=OFF * mathematical representation of technical representation < 2TW * * Alternating to the timer display T=OFF is shown the measure voltage mode: Auto, 100V or 10V To turn off the appliance press again key B .
-
Page 4: Setup Function
3. SET-UP Function By pressing the key (A) Set-Up longer as 2 seconds the „set-up" function is starting. At the display appears: SET TIMER ! TIMER OFF (On) By pressing key (B) „Change” the timer is switches between off and on. If pressing key (A) „Set-Up“, by TIMER OFF the timer is switched off and you can continued by point 3.1. - Page 5 3.1 Measure Voltage/Display Mode Now it will be ask for your choose off the measure voltage. In the display appears : VOLTGE MODE : AUTO (MAN.10V) (MAN. 100V) By pressing key (B) „Change” the display is switching between AUTO (Automatic), MAN. 10V, and MAN. 100V.
-
Page 6: Other Display Information
4. Other Display Information If the maximum measurement is exceeded appears at the display: Measure voltage = Auto, 100V R>2.0xE12? (R>2,0 T? ) Measure voltage = 10V R>2.0xE11? (R>200 G? ) If the minimal measurement is under-stride appears at the display: Measure voltage = Auto, 10V R<2.0xE04? (R<20 k? ) Measure voltage = 100V... -
Page 7: Warranty
Start the Software Connect the TERA – Ohmmeter with the PC – Interface cable to a free serial PC Interface (COM 1 or 2) from your PC, and press key „A“ to switch on the TERA – Ohmmeter. Make a Double click at the Desktop at the TOM 600 Icon. The software will start automatically when Excel is installed at your PC. -
Page 8: Optional Accessories
9. Part of Delivery Tera – Ohmmeter TOM-600 with temperatur and huminity sensor pce. rechargeable NIMH Mignon (AA) Batteries conductive suitcase with foam insert Plug Power supply 9V-DC / 300mA 1 pce. Teflon insulated measurement cord, 1m 1 pce. Teflon insulated measurement cord, 5m Serial PC - Cable 9 pol. - Page 9 12. Legend TOM 600 TERA-Ohmmeter Charge Battery START Enter Set-Up ON/OFF Charge 1. Power Supply connector 9V DC 2. Serial PC – Interface 3. Measure Voltage Output 4. Measure Input 5. Contrast – Potentiometer for LC Display 6. Temperature / Humidty - Sensor...
- Page 10 Kleinwächter GmbH Krummattstr. 9 79688 Hausen i.W. erklärt in alleiniger Verantwortung, dass die Produkte TERA Ohmmeter TOM 600 (ME) Messgeräte zur Messung des elektrischen Gleichspannungsfeldes auf die sich diese Erklärung bezieht, die Forderung der EWG-Richtlinie über die elektromagnetische Verträglichkeit Richtlinie des Rates vom 3.5.1989 (89/336) Stand: Juli 1993 erfüllt, insbesondere der Normen...
