Summary of Contents for Tera TOM 584 TF

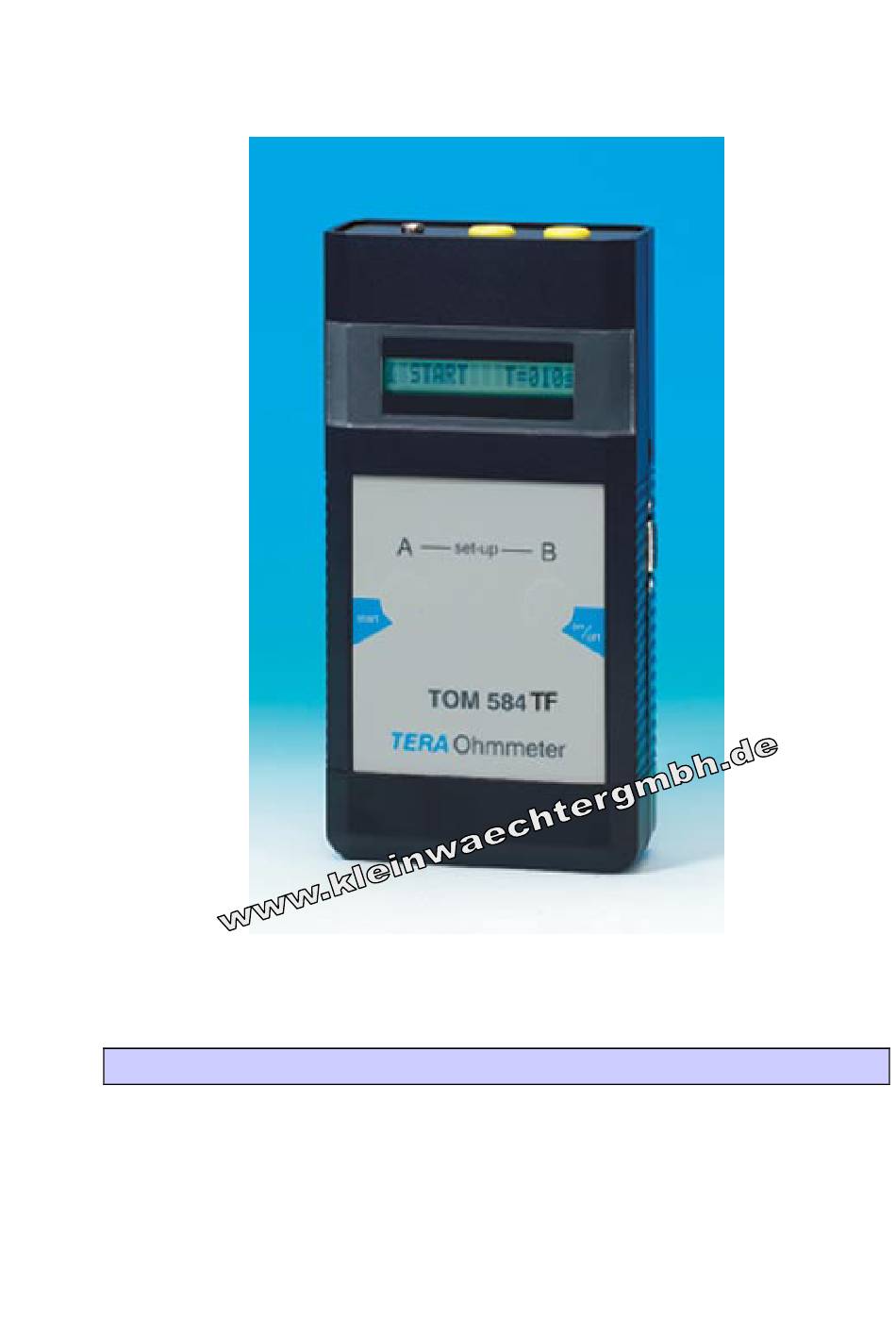

- Page 1 TERA Ohmmeter TOM 584 TF The TERA Ohmmeter TOM 584 works with the Current - Voltage- Measurement. This is the inexpensive version of the TOM 374. High resistances up to 2x10 Ohm (2 Tera-Ohm) can be measured with 100 volts...
-
Page 2: Table Of Contents
List of contents More Instruments from „Kleinwächter GmbH“ Description Operation Instruction Start up Charging the battery Ranges and Voltagees Set – Up Functions Timer Other Display Information’s Display Contrast PC – Operating System requirements Softwareinstallation Starting the Software Software Manual Warranty Safety Notice Specifications... -
Page 3: More Instruments From „Kleinwächter Gmbh
More Instruments from „Kleinwächter GmbH“ TERA Ohmmeter TOM-374 The TERA Ohmmeter TOM-374 works with the voltage measuring process. An Electro Field Meter is integrated as input amplifier with its very high impedance. Through it, it is possible, to measure resistances directly against earth. -
Page 4: Description
Operating Instruction 2.1. Start operation The TERA Ohmmeter TOM 584 is delivered with a 9V NiMH – Battery, and is directly ready to start. Only the enclosed plug power supply should be used for charging the battery, and stationary work. •... -
Page 5: Ranges And Voltagees
2.3. Measure ranges and measure voltages The TOM 584 has an automatic ranging approve the hole resistor range. The appliance, accordingly the adjacent resistance, selects the Measure voltage automatically. • Measured resistor less then 200 kΩ —- Measure Voltage 10 VDC •... -
Page 6: Timer
Timer If the timer was not activated, the TOM 584 directly switches on the resistance display in the on-line operation. In the display appears: =5.5xE10Ω Ω Ω Ω T=OFF Other Display Information’s If the maximum measurement is exceeded appears in the display: >2.0xE12 (T=OFF) If the minimal measurement becomes under-stride appears in the display: <2.0xE04Ω... -
Page 7: Starting The Software
Connect the TERA – Ohmmeter with the PC – Interface cable to a free serial PC Interface (COM 1 or COM 2) from your PC, and press key „A“ to switch on the TERA – Ohmmeter. Start under Windows your EXCEL Program. -
Page 8: Warranty
Charge time with enclosed power adapter: maximum 14 hours Power Supply : 9V-DC / 300 mA Parts of Delivery • Tera – Ohmmeter TOM 584 • 9V NiMH - Battery • Plug Power supply 9V-DC / 300mA •... -
Page 9: Optional Accessories
Optional accessories To the TOM 584 are offered optional different Measure Electrodes with the appropriate cables: Accessories set with: ESD - suitcase with sufficiently place for the measuring instrument plus all accessories 2,50 kg Electrode pair trough EOS/ESD S 4.1/S 7.1 DIN EN 61340 –5-1, -4-1, -2-3 For Measuring Grounding Resistors and Point to Point Resistors, specially for installed ESD Table- or floor... -
Page 10: Legend
Legend Power Supply connector 9-12V DC Serial PC – Interface Measure Voltage Output Measure Input Contrast – Potentiometer for the LC - Display Ground connector... -
Page 11: Conformity Explanation
Krummattstr. 9 79688 Hausen i.W. erklärt in alleiniger Verantwortung, dass die Produkte TERA Ohmmeter TOM 584 / TOM 584 TF Messgeräte zur Messung hochohmiger Widerstände bis 2 Teraohm auf die sich diese Erklärung bezieht, die Forderung der EWG-Richtlinie über die elektromagnetische Verträglichkeit Richtlinie des Rates vom 3.5.1989 (89/336) Stand: Juli 1993...
