Tera TOM 600 Manual

Ohmmeter
Hide thumbs Also See for TOM 600:
Table of Contents

Advertisement

Quick Links

Manual

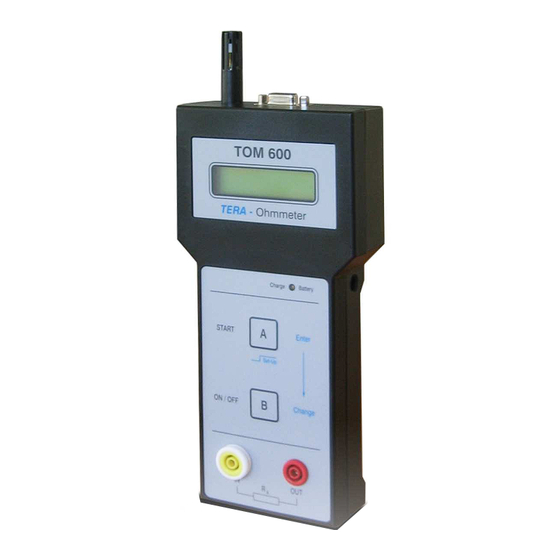

TERA Ohmmeter TOM 600
With integrated temperature and humidity sensor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TOM 600 and is the answer not in the manual?

Questions and answers

Related Manuals for Tera TOM 600

Summary of Contents for Tera TOM 600

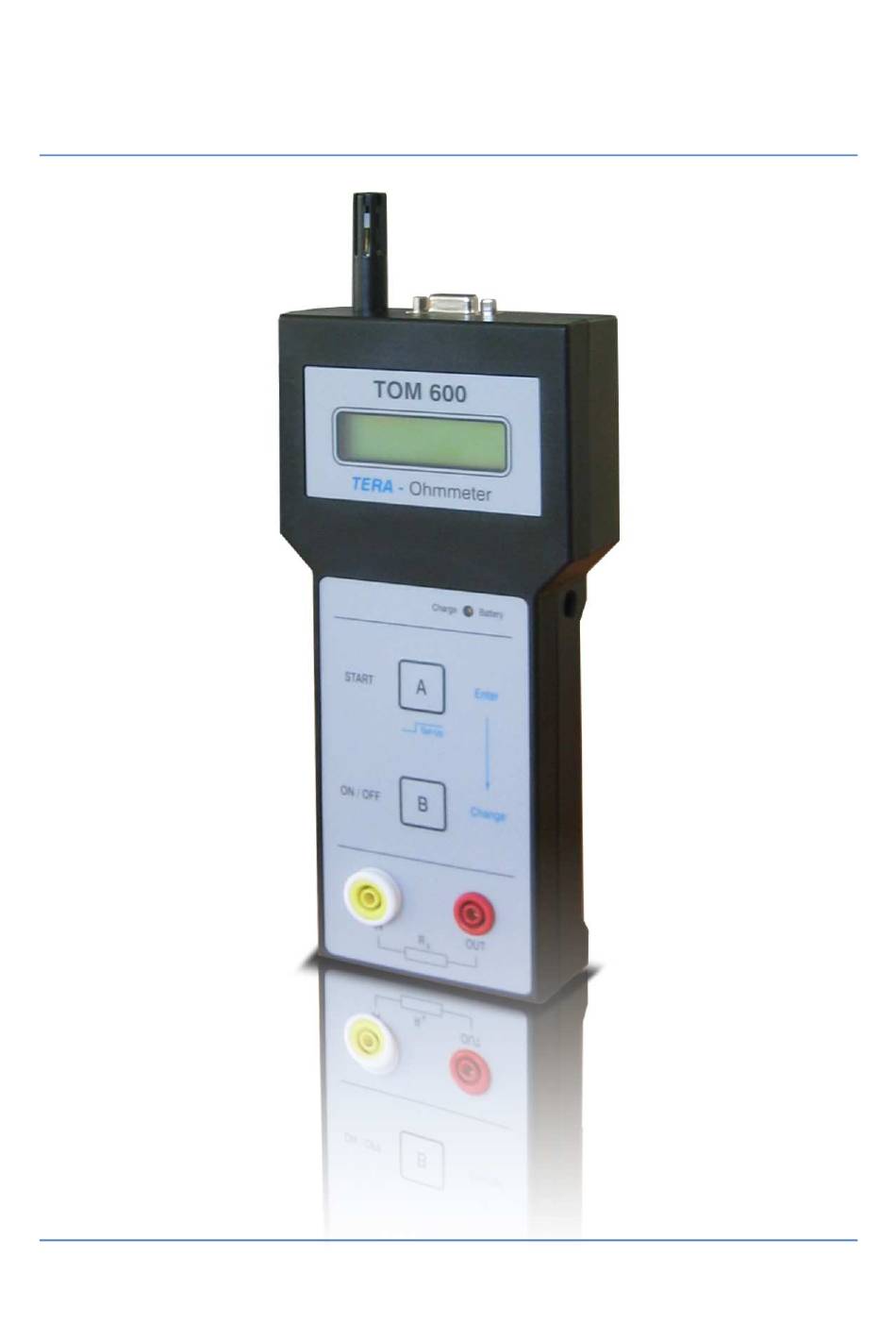

  • Page 1 Manual TERA Ohmmeter TOM 600 With integrated temperature and humidity sensor...

  • Page 2: Product Description

    Manual TOM 600 1. Product Description Due to its compact design and battery powered operation the TOM 600 is suited for mobile applications in industrial areas. Furthermore it can be driven stationary with the provided wall power supply. The menu-driven TOM 600 is operated by only 2 push-buttons and therefore very user-friendly.
  • Page 3 1.2. Legend 1 Temperature and humidity sensor 6 USB interface 2 LCD display 7 Display contrast trimmer 3 Button A 8 Battery charge indicator 4 Button B 9 Power supply connector 5 Measurement input 10 Measurement voltage output...

  • Page 4: Charging The Nimh Battery

    Charging the NiMH Battery The provided wall power supply has to be used to charge the batteries or operate the TOM 600. For this the jack (9) must be connected to the power supply. If the charging works properly the green indicator LED (8) is lit.
  • Page 5 Setup 2.3. Range Selection and Measurement Voltage The TOM 600 provides a automatic range selection over the entire measurement range. The device selects the measurement range according to the connected resistance. Measurement range Measurement voltage ≤ 200kΩ: 10V DC > 200kΩ: 100V DC The automatic range selection can be turned off in the setup.
  • Page 6 Manual TOM 600 Afterwards the device prompts whether the data stored in the EEPROM (files) should be deleted: DEL FILES? YES/NO Pressing button «B» switches between YES and NO. The selected action is confirmed by pressing button «A». If all data is erased the saving will start on File No. 001 the next time. The display...

  • Page 7: Further Messages

    Stored data can be read out via the PC interface later. 3.2. Timer In case of not activated timer the TOM 600 switches automatically to a live display of the measured resistance value. The device returns e.g.: R=5.5xE10Ω Ω Ω Ω T=OFF AUTO AIR: xx°C xx%r.F...

  • Page 8: Installation

    KL_ReadOut Manual 5.3. Starting the Software Attach the TOM 600 by use of the provided cable to a USB Port and wait until Windows confirm it. Then turn the device on. Double-click the corresponding desktop icon to start the KL_ReadOut software.

  • Page 9: Maintenance / Calibration

    • Declaration of factory calibration 9. Security Advices The TOM 600 is not approved for measurements in explosive areas. Operation in power plants is not permitted. Notice Please make sure the object to be measured is potential free before every measurement.
  • Page 10 Manual TOM 600 10. Measuring Electrodes ME 250 The 2.5kg electrodes enable measurements of surface and bleeder resistances on table or floor coverings according to the following norms: • EOS / ESD – S 4.1 /S 7.1 • EN 100015 Teil1, IEC 93 •...
  • Page 11 Measuring Techniques according to IEC 61340-4-1 11. Measuring Techniques according to IEC 61340-4-1 11.1. Surface Resistance (point to point) The electrodes have to be put on the covering to measure. The measured resistance depends on the conductivity, the surface condition and the distance between the electrodes. 11.2.
  • Page 12 Manual TOM 600 11.3. Leakage Resistance (point to ground) The resistance of a covering to ground potential is measured. The measured resistance depends on the material’s conductivity, its surface condition, the electrodes distance to the grounding point and the quality of the grounding.
