Summary of Contents for Tenergy TN456

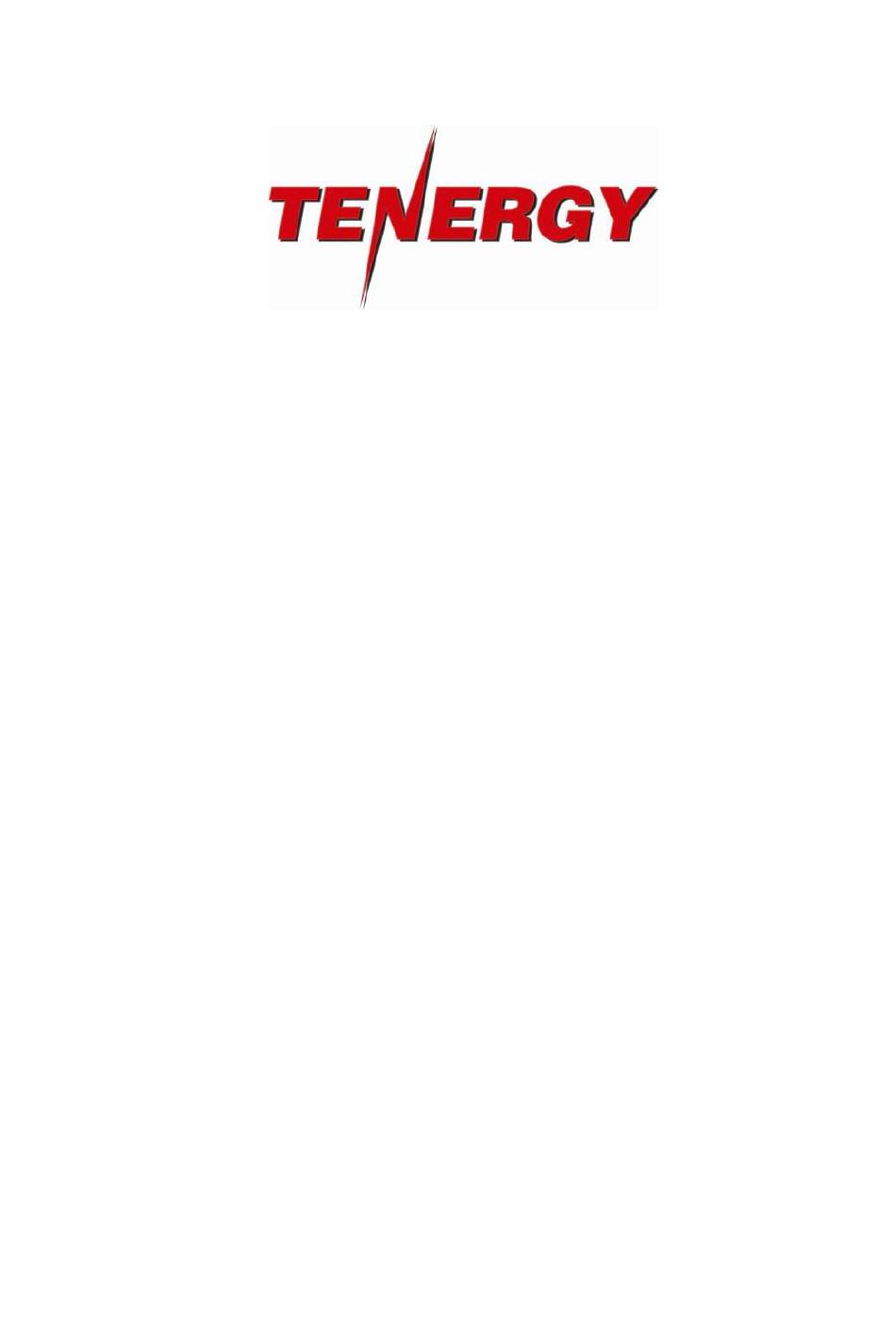

- Page 1 Intelligent NiMH/NiCd/Li-ion Charger TN456 USER’S MANUAL www.Tenergy.com...
-
Page 2: Table Of Contents
CONTENTS 1. Intended Use ..................3 2. Package Contents ..................4 3. Safety Instructions .................4 3.1 Product Safety .................4 3.2 Battery safety...................4 4. Operating Elements ................5 5. Power Supply ..................5 6. Operation....................5 6.1 Mode Selection ................6 6.2 Current selection................6 7. Operation Modes and Display..............6 7.1 Operation Mode ................6 7.2 Display .....................8 8. -
Page 3: Intended Use
Tenergy 4-Bay NiMH/NiCd/Li-ion Intelligent Charger with Backlit LCD, TN456 Tenergy's TN456 is an intelligent charger designed for 1.2V NiMH / NiCd (A, AA, AAA, SC, C) and 3.7V Li-ion (26650, 22650, 26500, 18650, 17670, 18490, 17500, 17335, 16340(123A), 14500, 10440) rechargeable batteries. -
Page 4: Package Contents
Please read the operating instructions thoroughly and keep them for future reference. 2 Package Contents ⚫ Tenergy TN456 Charger x 1 ⚫ Power Adapter x 1 ⚫ User Manual x 1 3. -

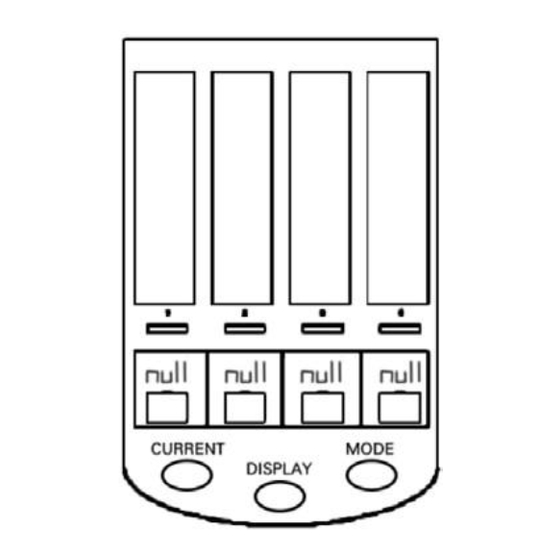

Page 5: Operating Elements
Batteries must not be dismantled, short-circuited or thrown into fire. Never recharge non-rechargeable batteries as it may lead to explosion. If you have any queries about the device that are not answered user manual, please check with the distributor or manufacturer for further help. 4. -
Page 6: Mode Selection
6.1 Mode Selection ⚫ Press and hold the MODE for 1 second to change the operating mode for all charging slots. ⚫ Press MODE button again to toggle between the Charge and Test modes. ⚫ After selecting the mode you can change the charging/discharging current pressing CURRENT. - Page 7 tage 2 Charge over Test mode: Checks the present capacity of a rechargeable battery. The maximum capacity is determined by discharging the rechargeable battery after it was fully charged. If the maximum capacity is much lower than the rated capacity, then it may reach the end of its lifetime.
-
Page 8: Display
Stage 4 The testing process is over. 7.2 Display ⚫ Charge/Discharge current: Shows the present charge/discharge current setting. ⚫ Elapsed Time*: The charging/discharging time of the last cycle is displayed. ⚫ Accumulated capacity: The accumulated battery capacity is displayed in mAh. ⚫... -
Page 9: Disposal
than the recommended settings. ⚫ Please don`t use this charger with other power adapters. ⚫ The charger's temperature may increase significantly during operation. Please use it in a well-ventilated area. ⚫ Please unplug the power supply and remove your batteries from the charger's charging slots when the charger is not in use.
