Please read the manual completely before use!
Specifications ......................................................
Special Features..................................................
Input Power .......................................................... 2
Controls and Connections ..................................
Determining Battery Type and Specifications ....
Getting Started .....................................................
Starting Charge ........................................................
2
Charge Complete .....................................................
2
Error Messages and Troubleshooting Guide .........
3
Care and Handling of NiMH Batteries .....................
3
Care and Handling of LiPo and LiFe Batteries .......
4
5
6
6
7
7
Advertisement
Table of Contents
Related Manuals for Tenergy E6AC
Summary of Contents for Tenergy E6AC

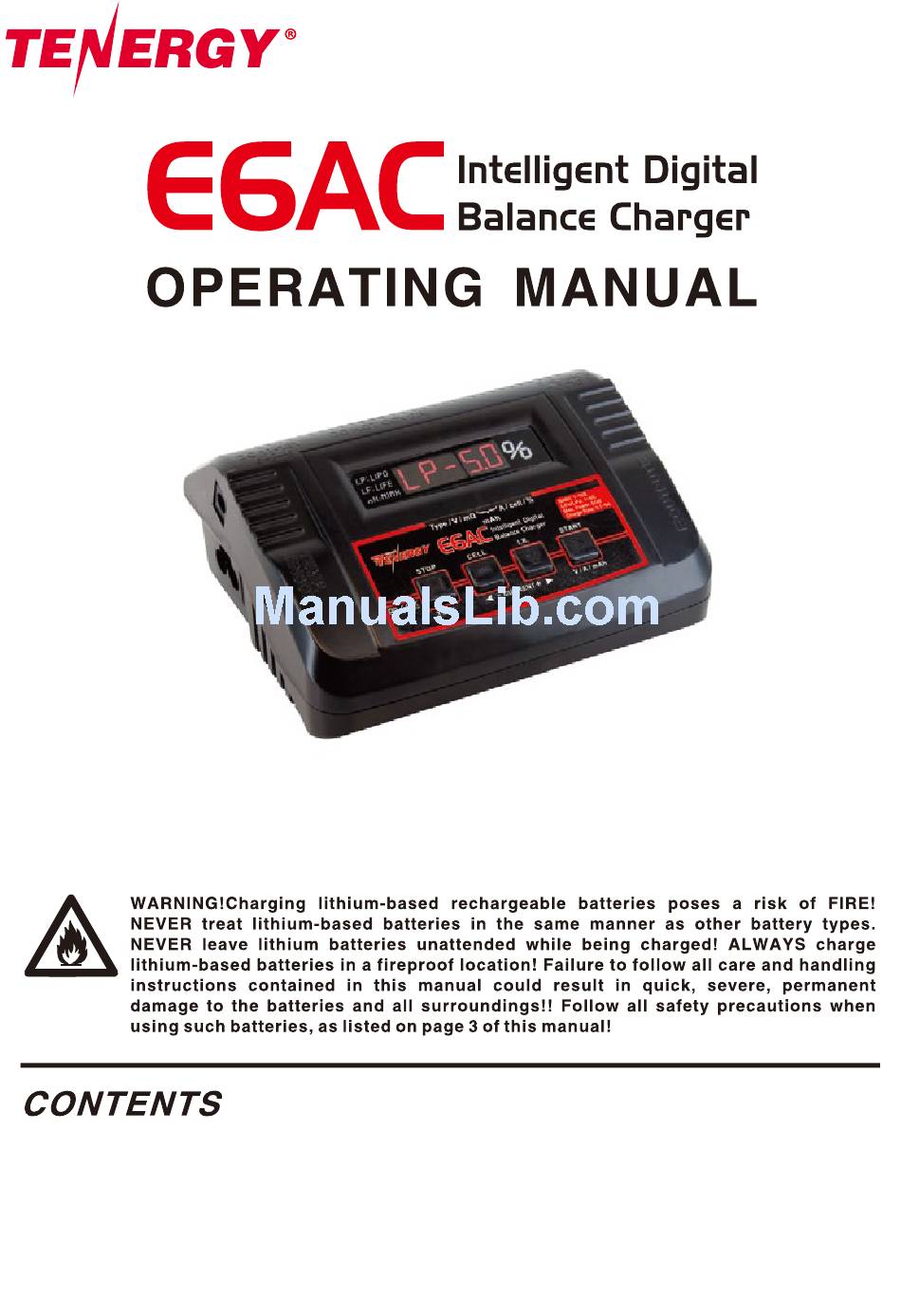

- Page 1 Please read the manual completely before use! Specifications ............Starting Charge ............Charge Complete ............. Special Features..........Error Messages and Troubleshooting Guide ..Input Power ............2 Controls and Connections ........Care and Handling of NiMH Batteries ..... Determining Battery Type and Specifications ..Care and Handling of LiPo and LiFe Batteries ..
-
Page 2: Input Power
100-240V AC 50/60Hz 11-18V DC, built in lead with alligator clips Reverse polarity and current overload protection 134x110x60mm 269g 1-6S LiPo/LiFe 1-15S NiMH 0.1-5A 50W max. Peak detection for NiMH, CC/CV for Lithiums 360 minutes(Defualt) ±5mV per cell * Build-in AC power supply is great for portability * A DC power lead with alligator clips easily connects to many 12V DC power sources * Easy to read LED shows battery voltage, charge current and capacity * Push button controls and audible tones make for easy set up and control... - Page 3 LED Screen TYPE/STOP Button: For selecting LiPo, LiFe and NiMH battery and to manually stop charging DEC/CELL: For viewing battery’s voltage on LED or to decrease charge current INC/I.R.: To view battery’s cell I.R. on LED or to increase charge current 11-18V DC Input START/V/A/mAh: To view battery’s charging voltage/current/capacity...
- Page 4 LP 5.0 capacity:50% LF 5.0 I.R. WARNING! Never set the battery type to a type that does not match your battery as it might result in fire!
- Page 5 DURING CHARGE To view charging status voltage current capacity (mAh) 25.0 I. . >2S AUTO RETURN To view individual cell voltage 4.20 C5 4.20 C6 4.20 C4 4.20 C2 4.20 C3 To view individual cell impedance...
- Page 6 LP-FU LED ERROR MESSAGE AND SOLUTION Connection disruption. Make sure a good connection exists between the battery and charger. Reverse polarity. Re-connect the battery to charger’s output with the proper polarity The battery has been disconnected during charge. Re-establish a good physical connection between the battery and charger, and re-start charge.
- Page 7 need to be cool down immediately. WARNING!! DO NOT try to charge lithium-polymer(LiPo) or LiFe cells in the same way as other battery types! Always read the instructions that are included with your lithium batteries carefully before use. Failure to follow these care and handling instructions can quickly result in severe, permanent damage to the batteries and their surroundings and even start a FIRE!
