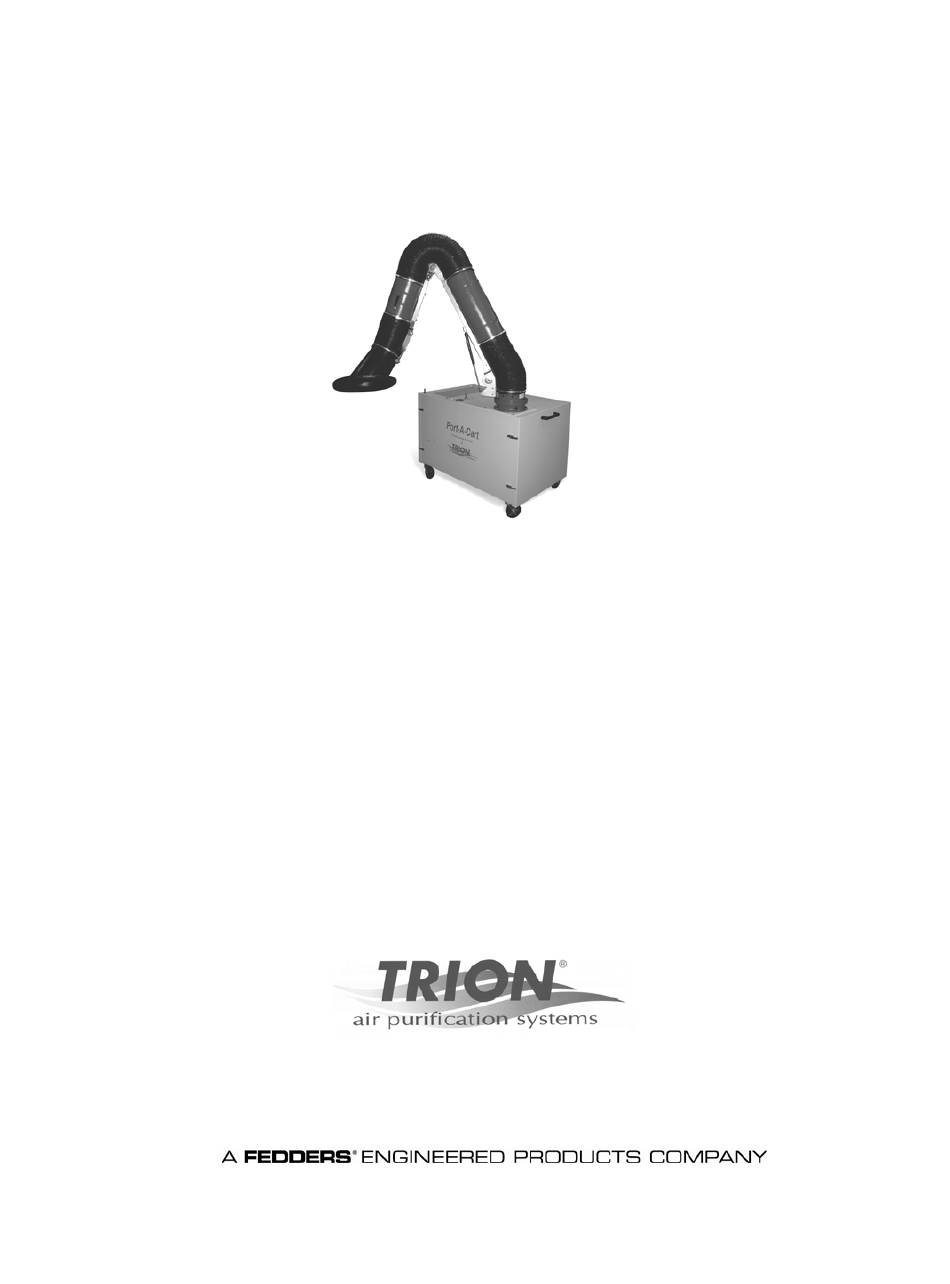

- Page 1 ™ PORT-A-CART Portable Cartridge Air Cleaner INSTALLATION • OPERATION • SERVICE • For Industrial Applications www.trioninc.com Manual Part Number 157199-001· March 2004...
-
Page 2: Table Of Contents
Table of Contents Specifications ..................3 System Design .................. 3 Installation ..................3 Unpack and Inspect..............3 Installing Source Capture Arm ..........3 Positioning the Unit ..............4 Electrical Power Requirements ............4 Operation ..................4 Maintenance..................5 Cleaning Filter ................ 5 Manual Cleaning .............. -
Page 3: Specifications
SPECIFICATIONS: PORT-A-CART™ work space. The unit is equipped with cast- ers, a source capture arm, a filtration compart- ment, and a blower compartment. Simply roll Power Requirement: 120 volts, 60 Hz, the unit to a level location near the source of Phase, amps, pollutants, adjust the arm, and place the cast-... -
Page 4: Positioning The Unit
3. POSITIONING THE UNIT WARNING ! Electric Shock Hazard Roll the unit to a level floor space in the area in Can Cause Electrical or Equipment which it is to be used. When the unit has been Damage properly positioned, lock the two swivel casters to Do not connect power before the installa- prevent movement during operation. -
Page 5: Maintenance
OPTIONAL PULSE CLEANING MAINTENANCE A backflush pulse cleaning system is avail- WARNING ! able. It consists of an air tank, a pulse valve and a manual switch. The air tank is located Sharp Edges Can Cause inside the blower compartment. The pulse Personal Injury valve is located to direct a blast of air into the... -
Page 6: The Cartridge Filter
LIMITED WARANTY THE CARTRIDGE FILTER Trion warrants the equipment of its manufacture to be free from defects in workmanship and ma- CAUTION : Before servicing any portion of terial for a period of 36 months after shipment. the air cleaner: This warranty is limited, however, to the repair or replacement of defective equipment, which is 1. -
Page 7: Troubleshooting Guide
TROUBLESHOOTING GUIDE CAUTION: During maintenance, filter replacement, or troubleshooting, make certain the power cord has been disconnected and the blower has completely stopped. The unit should not be operated with the filter access door open. PROBLEM POSSIBLE CAUSE SOLUTION Unit fails to start No power to the unit Check circuit Faulty motor... -
Page 8: Figure 1 Wiring Diagram
Figure 1—Wiring Diagram... -
Page 9: Figure 2 Outline Diagram
Figure 2—Outline Diagram... -
Page 10: Parts List
PARTS LIST See Figure 3 Reference Key Qty. per unit Part Number Description 251100-001 Cartridge Filter 145443-001 Minihelic Gage, 0-5” 150825-001 Motor, 1 1/2 Hp, 120/208-230 volt 250827-001 Blower Wheel 256941-001 Impregnated Carbon Filter 256950-002 Power Cord 238001-002 Toggle Switch, DPST 245386-017 Latch 252122-001... -
Page 11: Figure 3 Parts List Diagram
Figure 3-Parts List Diagram... -
Page 12: Contact Information
Tel. 49 0 2237 922 103 Shanghai, P.R. China, 200001 Fax 49 0 2237 922 104 Tel. 86 21 63403232 Fax. 86 21 63403867 Fedders International Fedders International, Inc. Air Conditioning 128 Joo Seng Road A-30, Chintels House #05-01 Kalish Colony...
