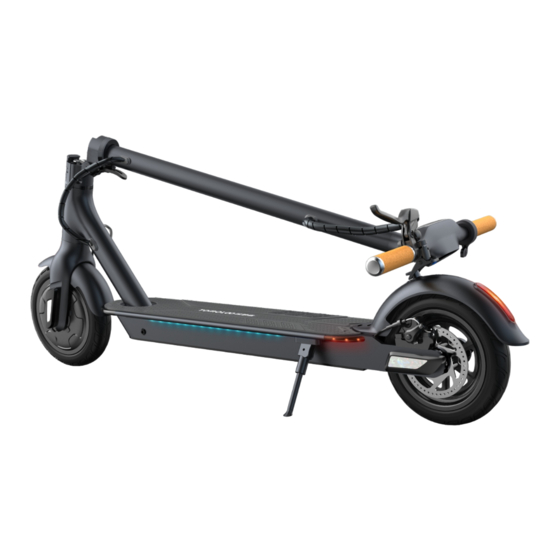

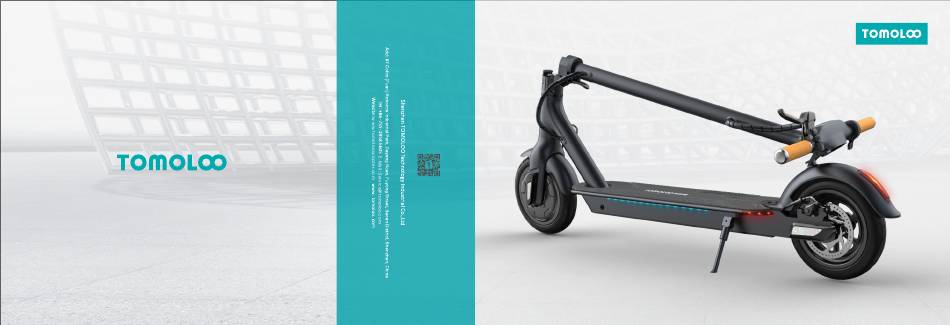

- Page 1 Two Wheel Folding Electric Scooter...
- Page 2 If you have any questions or need more information, please contact the franchised dealer or after- sales service. 2. This manual can be also downloaded from the website: www.tomoloo.com 3. WARNING: For the purposes of recharging the batter y, only use the detachable supply unit (model: FY- Please pay attention to the following signs and relating content: 4202000) provided with this appliance.
- Page 3 Contents C h a p t e r 8 R o u t i n e m a i n t e n a n c e ................About the manual..........................1 C h a p t e r 9 P a r a m e t e r t a b l e...
- Page 4 Chapter 1 Chapter 2 Products and components Function Icon and description components Throttle Headlight User manual x1 (Atmosphere lights) The control panel Brake bar Screw M3 x4 Knob x2 Hex wrench M5 x1, M3 x1, M4x1 Folding mechanism Buckle Brake lights Motor Charger adapter x1 Disk brakes...
-
Page 5: Control Panel
Control panel Chapter 3 Installation Guide 1. Install the brakes to correct position with the Hex wrench (M5 in the tool bag). Headlight status Batter y Bluetooth status Speed gear Power switch Speed Control instructions 2.Install the handlebars, pay attention to the installation direction. 1.Long press the power switch button to turn on the machine, and the front light, buttom atmosphere light, tail light, and brake light are all on. - Page 6 5. Use the Hex wrench M3 in the tool bag to lock the screws M3 4. Install the handlebar to the standpipe. x 4 on both sides of the standpipe as below picture reffered. 6. After the installation is completed, switch on and off to confirm if scooter operable.
- Page 7 Chapter 4 Chapter 5 Charging instructions How to ride the two e-scooter *There are risks of falling and injur y when study riding, so please wear a helmet and protective gear as shown in the picture. Open rubber cap. Insert in the charging plug. Close the rubber cap,after charging is completed.
- Page 8 Chapter 6 Riding security 3. When the electric scooter is sliding, the other foot steps 4. Release the throttle can slow down the speed, and automatic on the pedal. After the feet step on the pedal, slightly press energy recover y system can help to slow down. Emergent the throttle (speed above 5km/h will start the throttle).
- Page 9 Chapter 7 Folding and Transportation Do not press on the accelerator pin Avoid barriers while driving. while walking with the e-scooter. Make sure that the e-scooter has been turned off, then to pull the folding-finger-pull out meanwhile holding the standpipe, then open up the folding spanner, aim it at the bell and the fender hook, then buckle the bell with the back-fender.
- Page 10 • We must strictly follow the safety requirements of this manual for drivers in countries and regions, where there are no national standards and regulations for electric scooters, Tomoloo shall not be liable for any liability, personal injur y, accident, legal dispute, and all other unfavorable events resulting from the use of violating the instructions indicated in this manual.
-
Page 11: Daily Maintenance
Chapter 8 Daily Maintenance If there is a crack in the body of the electric scooter, wipe it with a small amount of water with a soft cloth. If it is difficult to clean, you can use a toothbrush with toothpaste to brush it repeatedly and then use a damp cloth to clean it. If the body Electric scooter cleaning and storage plastic has scratches, you can use sandpaper or other abrasive materials for polishing. - Page 12 Chapter 9 Handle shake debug Parameter Table If you feel the standpipe is loose and shakes when you are riding, please use the M5 & M4 hex wrench to reinforce the screw as below picture referred. Description Specifications Parameters LxWxH(CM) 1180mmx550x1180mm Product Dimensions Folding Size LxWxH(CM)
- Page 13 Chapter 10 APP Download Guide Description Specifications Parameters In the APP application library, search and scan the QR code below to download and install. Bluetooth password: 000000 Rated voltage(VDC) Maximum Charge Voltage(VDC) Batter y Pack Rated Capacity 7.5Ah Temperature, short circuit, undervoltage, Protection overcurrent, overcharge, overdischarge Rated Power(W)
- Page 14 Cleaning and user maintenance shall not be made by children without supervision. 2. This manual can be also downloaded from the website: www.tomoloo.com 3. WARNING: For the purposes of recharging the batter y, only use the detachable supply unit (model: FY- 4202000) provided with this appliance.
