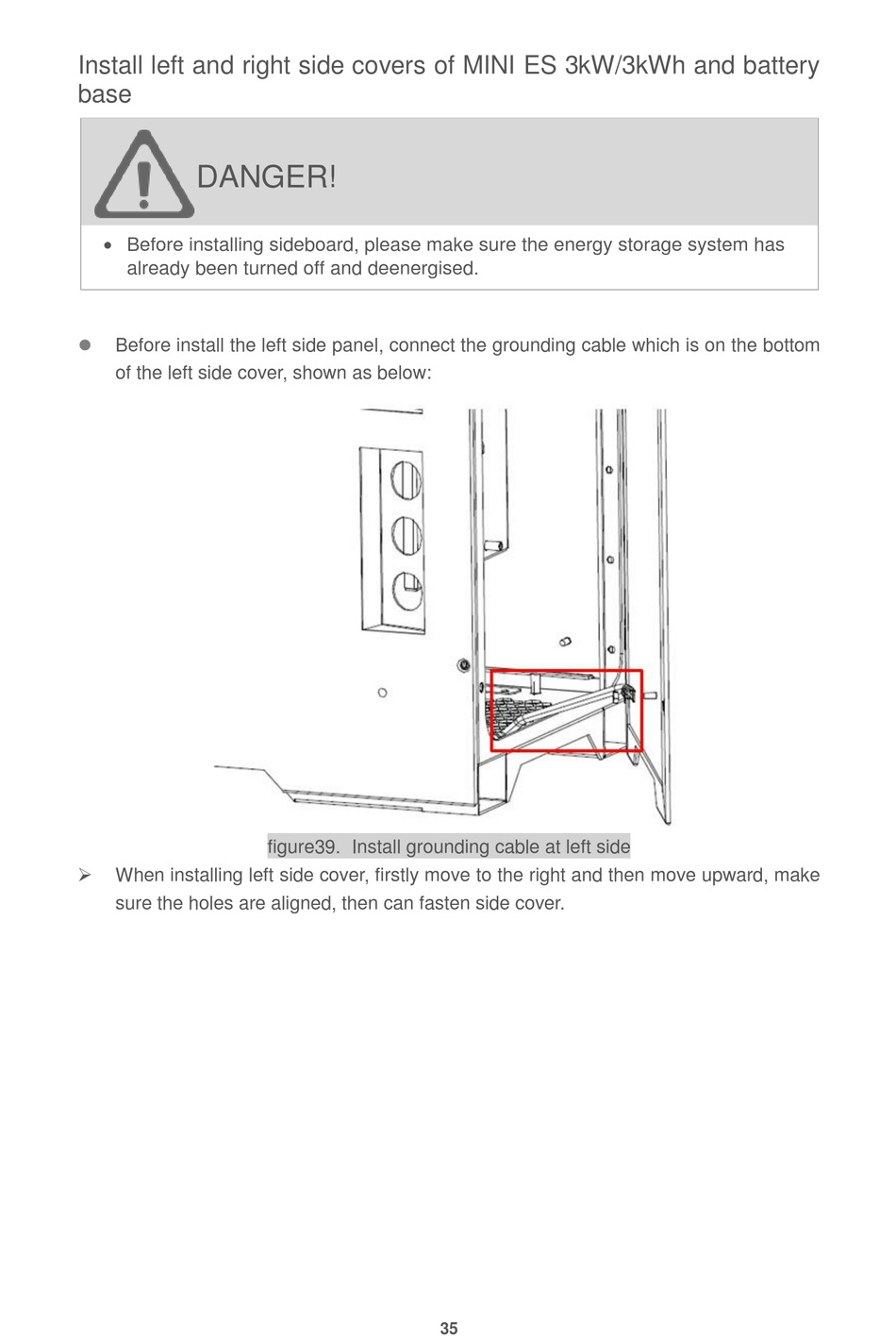

Install left and right side covers of MINI ES 3kW/3kWh and battery
base
Before install the left side panel, connect the grounding cable which is on the bottom
of the left side cover, shown as below:
When installing left side cover, firstly move to the right and then move upward, make
sure the holes are aligned, then can fasten side cover.
figure39. Install grounding cable at left side
35
