- Page 1 密级 机密 技术要求： 1. 所有内容的印刷颜色均为PANTONE BLACK C； 2. 规格按A5尺寸输出菲林印刷； 3. 该手册内的彩色图片也按黑白制作； 4. 如供应商的排版需要加空白页，请加在封底前。 英文用户手册 6710023992 DW9 70 FI(J7713D) (TEKA) 西班牙 80G双胶纸 标记 处数 分区 签 名 日 期 阶 段 标 记 比 例 更改文件号 会 签 设 计 REV.

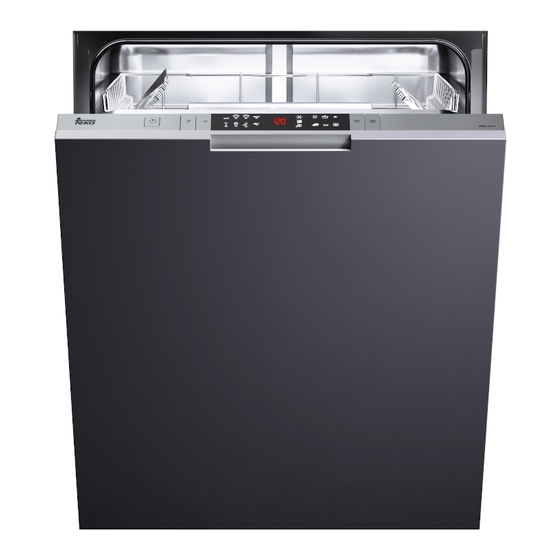

- Page 2 Instruction Manual DW9 70 FI 14 place settings Alt function Auto program...
-
Page 3: Table Of Contents
1) Safety Instructions........1 Read this Manual 2) Quick user guide..........4 Dear Customer, Please carefully read this manual before using the 3) Operation Instructions........5 dishwasher, it will help you use and maintain the Control Panel...........5 dishwasher properly. Dishwasher Features........5 Keep this manual for future reference. Pass it on to any subsequent owner of the appliance. - Page 4 1.IMPORTANT SAFETY INFORMATION When using your dishwasher, WARNING! follow the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments;...
- Page 5 EARTHING INSTRUCTIONS This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-earthing conductor and a grounding plug.
- Page 6 2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position. Check that the detergent powder is empty after completion of the wash cycle. Do not wash plastic items unless they are marked dishwasher safe or the equivalent.
- Page 7 Disposal This appliance's packaging materials are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it. It is prohibited to dispose of this appliance as household waste.Correct Disposal of this product: this symbol on the product or in its packing indicates that this product may not be treated as household waste.
-
Page 8: Quick User Guide
2.Quick user guide For detailed operating method read the corresponding content on the instruction manual. touch Switch on the appliance Open the door, the On/Off button to switch on the appliance . Open the flap(marked with A), fill in the main wash detergent , and then close the flap; Fill the detergent dispenser Pre wash detergent drop into the tank directly;... -
Page 9: Operation Instructions
3.Operation Instruction IMPORTANT To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Control Panel 1. Power Button- touch on and off. 5.Status Indicators : Rinse detergent need to be refilled 2. -
Page 10: Prior To First Time Use
4. Prior to first time use Before using your dishwasher for the first time: Set the water softener Add 1.5Kg dishwasher salt and then full fill the salt container with water Fill the rinse aid dispenser Fill in detergent A. Water Softener The water softener must be set manually, using the water hardness dial. -
Page 11: C Filling The Rinse Aid Dispenser
B. Loading the Salt Into the Softener Always use the salt intended for dishwasher use. The salt container is located beneath the lower basket and should be filled as explained in the following: Warning! Only use salt specifically designed for dishwashers use! Every other type of salt not specifically designed for dishwasher use, especially table salt, will damage the water softener. -
Page 12: D Function Of Detergent
When to Refill the Rinse Aid Dispenser If the rinse-aid warning indicator lights up in the control panel, you should refill the rinse aid. Remove the rinse reservoir cap by lifting up the handle . Pour the rinse aid into the dispenser, being careful not to overfill. Close the cap after all. - Page 13 Detergents There are 3 sorts of detergents 1.With phosphate and with chlorine 2.With phosphate and without chlorine 3.Without phosphate and without chlorine Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when °...
- Page 14 Amount of Detergent to Use Fill in Detergent Fill the main wash detergent in the container blew the flap; Put the pre wash detergent into the tank directly; NOTE: If the lid is closed: press release button. The lid will open. Always add the detergent just before starting each wash cycle.
-
Page 15: Preparing And Loading Dishest
5. Preparing and Loading Dishes Recommendation Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with the lowest possible temperature. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended. -
Page 16: Loading The Upper Basket
Standard Loading Pattern Loading the Upper Basket Loading the Lower Basket We suggest that you place large items and the most The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and difficult to clean items into the lower basket: such as tea cups and saucers, as well as plates, small bowls pots, pans, lids, serving dishes and bowls, as shown and shallow pans (as long as they are not too dirty). -
Page 17: Starting A Washing Program
6.Starting a washing program Wash Cycle Table Means: Rinse-aid dispenser needs to be filled. NOTE: Description Detergent Cycle Selection Running Energy Rinse Water Program pre/main of Cycle time(min) Information (Kwh) ℃ Pre-wash (45 Auto sensing wash, lightly, Autowash(45-55 ℃) Auto normally or heavily soiled Rinse crockery, with or with out... -
Page 18: Changing The Program Mid-Cycle
→ → → → → → → → ECO Glass 90min Rapid Pre-wash Auto Intensive Normal ECO If a program is selected, the response light will turn on. Then close the door, the dishwasher will start its cycle. Changing the Program Mid-Cycle Premise: A cycle that is underway can only be modified if it has only been running for a short time. -
Page 19: Maintenance And Cleaning
7.Maintenance and Cleaning Filter System The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter). -
Page 20: Caring For The Dishwasher
Remarks: - After each cycle, check for any debris in the filter to avoid future blockage. - By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water. NOTE: The entire filter assembly should be cleaned once a week. -
Page 21: Installation Instruction
How to Keep Your Dishwasher in Shape After Every Wash When not in use for a long Time It is recommend that you run a wash cycle with the After every wash, turn off the water supply to the dishwasher empty and then remove the plug from the appliance and leave the door slightly open so that socket, turn off the water supply and leave the door of moisture and odours are not trapped inside. -
Page 22: Aesthetic Panel's Dimensions And Installation
Please carefully read the installation instruction. Illustrations of cabinet dimensions and installation position of the dishwasher Preparations should be made before moving the dishwasher to the installation place. Choose a place near the sink to facilitate the installation of inlet and drain hoses (see figure 1). - Page 23 2 Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door of dishwasher (see figure 4). After positioning of the panel , press top of the aesthetic wooden panel to make sure that the plastic hook are fastened .
-
Page 24: Connection Of Drain Hoses
● Connection of drain hoses Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The height of the drain pipe must be less than 1000mm. PLEASE FIX THE DRAIN HOSE EITHER WAY OF A, B Front Counter... -
Page 25: Dishwasher Installation Steps
Dishwasher installation steps ● Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the template for positioning of the brackets. 2 Connect the inlet hose to the cold water supply . 3 Connect the drain hose. Refer to diagram . (Figure 6) 4 Connect the power cord . -
Page 26: About Electricity Connecting
Dishwasher must be level for proper dish rack operation and wash performance. Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level. level the dishwasher by adjusting the three levelling legs individually. When level the dishwasher, please pay attention not to let the dishwasher tip over. -
Page 27: Cold Water Connection
ABOUT THE SAFETY SUPPLY HOSE. The safety supply hose consists of the double walls. The hose's system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water. -
Page 28: Troubleshooting Tips
9.Troubleshooting Tips Before Calling for Service Review the charts on the following pages may save you from calling for service. Problem Possible CausesWhat To Do Dishwasher doesn t Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher circuit breaker tripped start... -
Page 29: Error Codes
Problem Possible Causes What To Do The dishes The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. are not clean The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table ". Not enough detergent Use more detergent, or change your detergent. -
Page 30: Technical Information
Technical Information Height : 815mm Width : 598 mm Depth : 550mm with the door closed Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 14 place settings... - Page 32 Cutlery basket could be have 5 positions: Mode 1 Position one: lift the left basket up, both left and right baskets are sideling. Mode 2 Position two: adjust the left basket to lower position, left basket is flat and right basket is sideling. Mode 3 Position three: lift the right basket up, both left and right baskets are flat.
- Page 33 Technical Data Sheet Sheet of household dishwasher according to EU Directive 1059/2010: Manufacturer TEKA Type / Description DW9 70 FI Standard place settings Energy efficiency class A+++ Annual energy consumption 237 kWh Energy consumption of the standard cleaning cycle 0.83 kWh Power consumption of off-mode 0.45 W...
