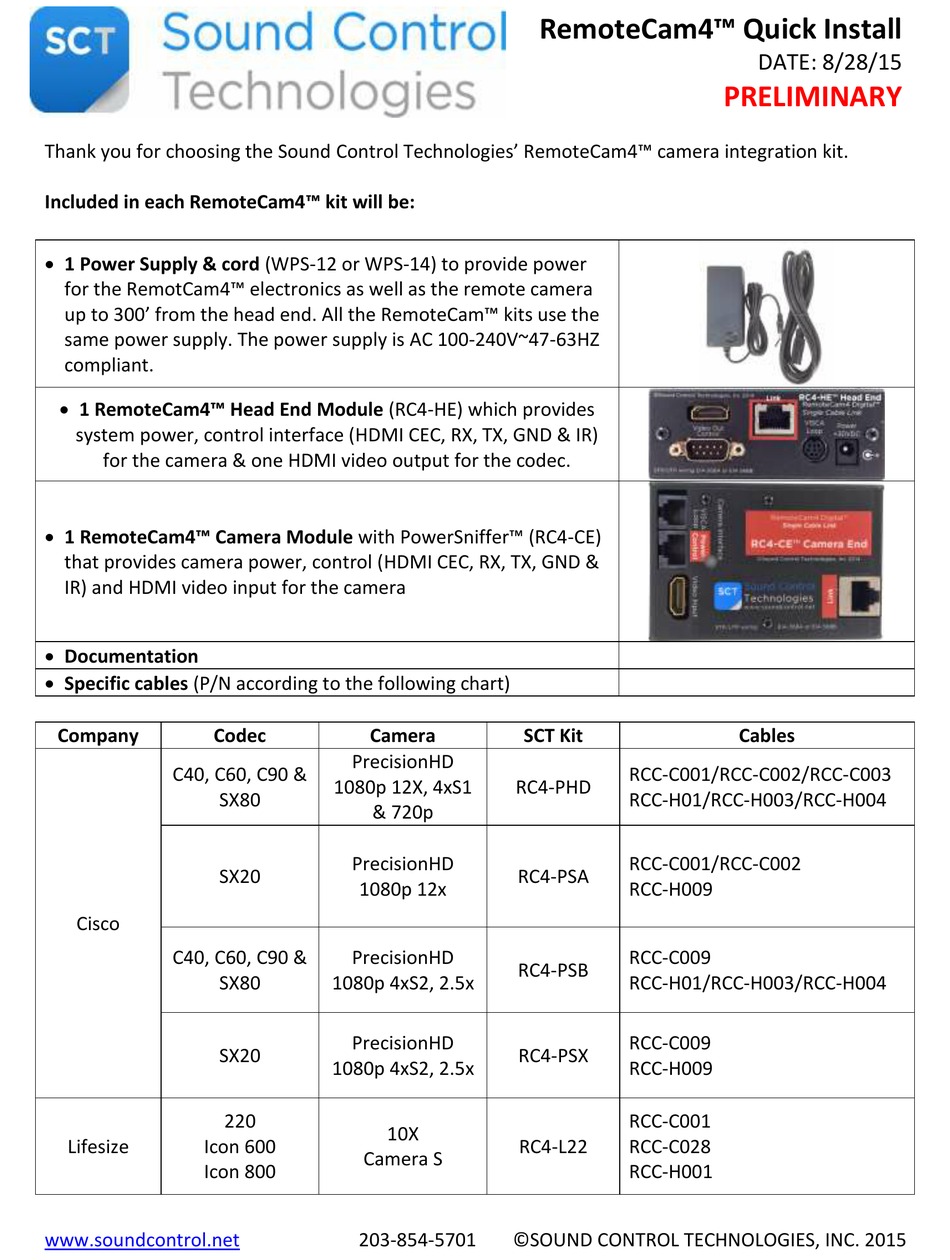

Sound Control Technologies RemoteCam4 Quick Install

Thank you for choosing the Sound Control Technologies' RemoteCam4™ camera integration kit.
Included in each RemoteCam4™ kit will be:
 1 Power Supply & cord (WPS-12 or WPS-14) to provide power
for the RemotCam4™ electronics as well as the remote camera
up to 300' from the head end. All the RemoteCam™ kits use the
same power supply. The power supply is AC 100-240V~47-63HZ
compliant.
 1 RemoteCam4™ Head End Module (RC4-HE) which provides
system power, control interface (HDMI CEC, RX, TX, GND & IR)
for the camera & one HDMI video output for the codec.
 1 RemoteCam4™ Camera Module with PowerSniffer™ (RC4-CE)
that provides camera power, control (HDMI CEC, RX, TX, GND &
IR) and HDMI video input for the camera
 Documentation
 Specific cables (P/N according to the following chart)
Company Codec
C40, C60, C90 &
SX80
SX20
Cisco
C40, C60, C90 &
SX80
SX20
Lifesize Icon 600
Icon 800
www.soundcontrol.net
Camera
PrecisionHD
1080p 12X, 4xS1
& 720p
PrecisionHD
1080p 12x
PrecisionHD
1080p 4xS2, 2.5x
PrecisionHD
1080p 4xS2, 2.5x
220
10X
Camera S
203-854-5701
RemoteCam4™ Quick Install
SCT Kit
RCC-C001/RCC-C002/RCC-C003
RC4-PHD
RCC-H01/RCC-H003/RCC-H004
RCC-C001/RCC-C002
RC4-PSA
RCC-H009
RCC-C009
RC4-PSB
RCC-H01/RCC-H003/RCC-H004
RCC-C009
RC4-PSX
RCC-H009
RCC-C001
RC4-L22 RCC-C028
RCC-H001
©SOUND CONTROL TECHNOLOGIES, INC. 2015
DATE: 8/28/15
PRELIMINARY
Cables
