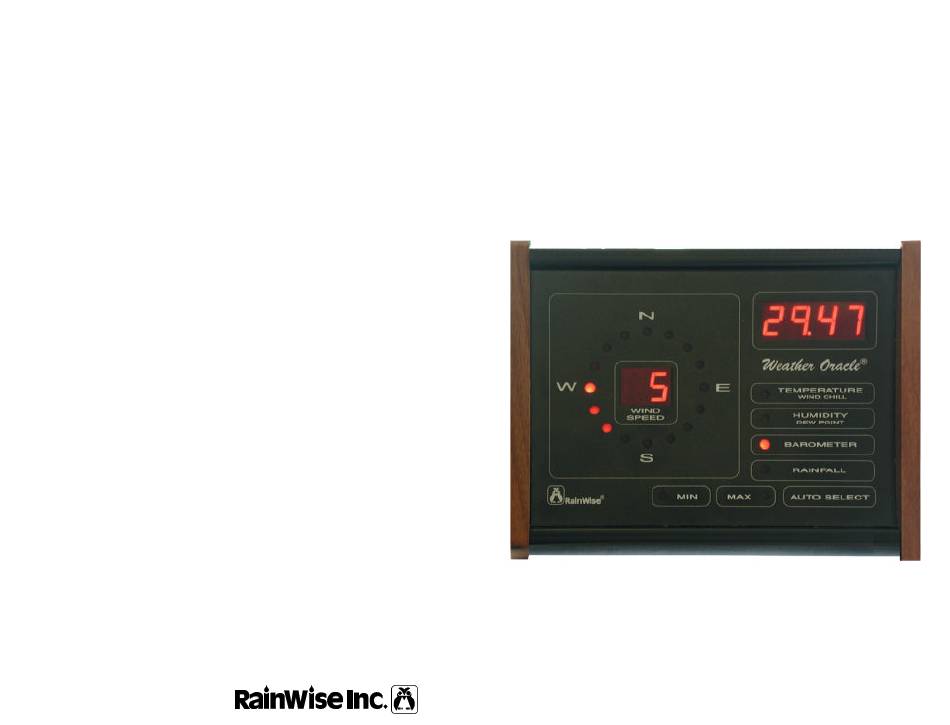

RainWise Weather Oracle Instructions

VIEWING MAXIMUMS AND MINIMUMS:
Select the desired item on the main display and press MIN or MAX. The MIN or MAX
LED will light and the main display will show the minimum or maximum value, then the date,
and finally the time of occurence.
To view the maximum wind speed, press WIND SPEED. The WIND SPEED display will
show the maximum speed and the direction at the time of occurence. The main display will
show the date and then the time of occurence.
TO VIEW RAINFALL ACCUMULATION:
There are two registers for RAINFALL.
1. Pressing RAINFALL will show the current rainfall.
2. To view rainfall accumulation, after pressing RAINFALL, press MAX. The main display
will show the accumulation followed by the date and time of the last reset.
TO CLEAR MAXIMUMS OR MINIMUMS:
1. Select the sensor that you wish to clear.
2. Press MAX or MIN.
3. Quickly press AUTO SELECT. This will clear the maximum or minimum.
TO CLEAR CURRENT RAINFALL:
1. Press RAINFALL.
2. Press MIN.
3. Quickly press AUTO SELECT. This will clear out the current rainfall.
TO CLEAR RAINFALL ACCUMULATION:
1. Press RAINFALL.
2. Press MAX.
3. Quickly press AUTO SELECT. This will clear out the accumulation.
DIAGNOSTIC DISPLAY MODE:
1. Press and hold AUTO SELECT; Press MIN.
The Temperature, Humidity and Barometer LED's will all light. This indicates that
the system is in the diagnostic mode. One LED will flash. This indicates the selected
item:
TEMPERATURE - for checking the battery condition.
HUMIDITY - for checking the reception.
BAROMETER shows the program version for the display and sensor unit.
In the event of a problem our service technician will explain the operation of this feature.
GENERAL INFORMATION:
If the wind speed exceeds 99, both decimal points will light indicating that 100 should
be added to the number viewed. This is true regardless of the units displayed.
The dim LEDs show the direction variation for the previous 30 seconds.
The time given in maximums and minimums is in 24:00 (military) time.
When the barometer is steady the readout is steady.
When the barometer is falling, all four digits in the display flash.
When the barometer is rising, the left two digits flash.
®
P.O. BOX 443 • BAR HARBOR, MAINE 04609 • 800-762-5723
INSTRUCTIONS INSTRUCTIONS
FOR THE FOR THE
RainWise RainWise
Weather Oracle Weather Oracle
MK-III & WS-2000
SOLAR POWERED WIRELESS WEATHER STATIONS
®
For
REV: 09-04-02
