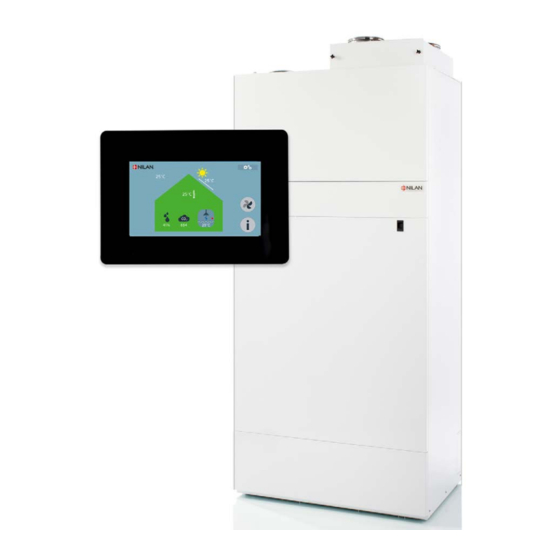

nilan CTS700 TOUCH Compact P Polar User Manual
  1. Manuals
  2. Brands
  3. nilan Manuals
  4. Control Unit
  5. Compact P Polar EK 6 kW CTS 700
  6. User manual

nilan CTS700 TOUCH Compact P Polar User Manual

Hide thumbs Also See for CTS700 TOUCH Compact P Polar:
Table of Contents

Advertisement

Quick Links

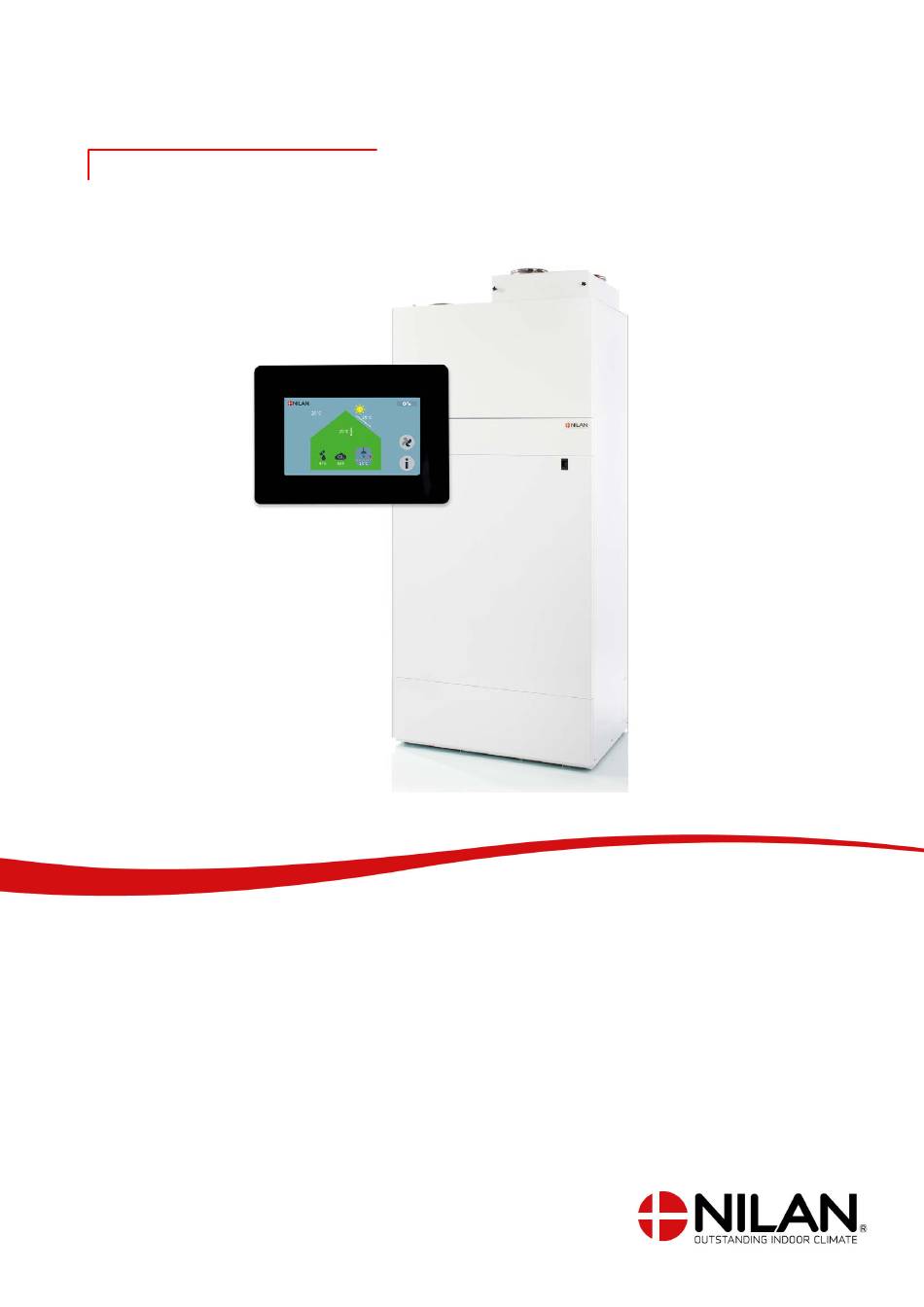

USER MANUAL
CTS700 TOUCH
BY NILAN
Compact P / Compact P Polar (English)
Version 2.40 - 23.05.2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTS700 TOUCH Compact P Polar and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for nilan CTS700 TOUCH Compact P Polar

Summary of Contents for nilan CTS700 TOUCH Compact P Polar

  • Page 1 USER MANUAL CTS700 TOUCH BY NILAN Compact P / Compact P Polar (English) Version 2.40 - 23.05.2019...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety Important information ..................................................Power supply ....................................................Heat pump domestic hot water ..........................................Disposal ..........................................................Ventilation unit ..................................................... Heatpump ......................................................Quickguide Safety switch ....................................................... Emergency stop ventilation ............................................The control panel ....................................................Front page controls .................................................. Front page setting options ..............................................
  • Page 3 Compact P / Compact P Polar (English) BY NILAN Troubleshooting Alarm lists ........................................................Alarm list, ventilation and domestic hot water ..................................Emergency operation ..................................................Emergency operation domestic hot water ....................................Technical data Ecodesign data ....................................................... Hot water production ................................................. CE declaration ......................................................

  • Page 4: Important Information

    Responsibility for maintenance of the heat pump rests with the owner/user. Disposal Ventilation unit Nilan’s units consist mainly of recyclable materials. They must, therefore, not be mixed with household waste, but must be delivered to your local recycling center for disposal.

  • Page 5: Quickguide Safety Switch

    Compact P / Compact P Polar (English) BY NILAN Quickguide Safety switch Emergency stop ventilation If the ventilation has been stopped for a lengthy period, condensation will occur in the duct system. This occurs when the warm air in the dwelling penetrates into the cool ducts. This presents the risk that the water will drip out of the ceiling valves, damaging floors and furniture.

  • Page 6: The Control Panel

    The control panel Front page controls The front page of the touch panel contains the setting options and the information the user needs most frequently. 1. Displays the current room temperature in the house, measured via the extract air or via an external temperature sensor 2.

  • Page 7: Front Page Setting Options

    Compact P / Compact P Polar (English) BY NILAN Front page setting options The settings which the user needs in daily use, can be changed on the front page of the touch-panel. 1. By touching the current room temperature, the wanted room temperature is shown. You can change the wanted room temperature by touching the red or blue arrow.

  • Page 8: Information

    Information By touching the information button, you get an overview about the actual operation state of the unit.

  • Page 9: Warnings And Alarms

    Compact P / Compact P Polar (English) BY NILAN Warnings and alarms If a fault occurs in the unit's operation, a warning or an alarm will be shown. A warning is a yellow button, which advises that something needs attention, e.g. that filters or sacrificial anodes need replacing.

  • Page 10: Settings Menu Overview

    Settings menu overview The settings menu is arranged for clarity and ease of navigation. Ventilation: This is where all the settings for the ventilation of the dwelling are made. Domestic hot water production: This is where all the settings for the domestic hot water production are made.

  • Page 11: User And Installer Rights

    • Settings with a white lock can only be set by installers • Settings with a red lock can only be set by Nilan The reason why some settings are locked for the user, is because it requires a certain amount of knowledge about how the unit works in order to change these settings, and if they are set wrongly the unit does not work properly and can be damaged.

  • Page 12: Service And Maintanance Maintenance

    Maintenance Regular maintenance Your Nilan ventilation unit will last for many years if it is correctly maintained. Correct maintenance will also ensure that the unit runs optimally at all times with low energy consumption. In the following we point out the regular maintenance which you can perform yourself and the annual service which should be carried out by a professional.

  • Page 13: Illustration Of Filter Change

    Compact P / Compact P Polar (English) BY NILAN Illustration of filter change 1. Set the unit to standby on the control panel in the 2. Turn the thumb screws in the door at the top right of "Filter settings" menu under Ventilation before opening the unit and open the door.

  • Page 14: Water Trap

    Water trap If the water trap in the condensate outlet dries out, air will blow into the unit. This will prevent the condensate water from draining away. Instead it will accumulate in the condensate tray. When there is no space left in the condensate tray, it will spill over, possibly causing water damage on the floor. ATTENTION The water trap must be checked at regular intervals and filled with water.

  • Page 15: Service

    Compact P / Compact P Polar (English) BY NILAN Service Annual service It is important to perform an annual service on the unit to ensure it will continue to perform optimally with low energy consumption and long service life. You are recommended to take out a service agreement with the installer, as certain elements of the service require an authorised technician.

  • Page 16: Check Ventilation Ducts

    Check ventilation ducts It is important for operation of the unit that there is free air passage through the ventilation ducts. After some years of operation, dirt will attach itself to ventilation ducts or tubes, and accumulations may lead to higher pressure drop in the ducts, leading to higher power consumption. It is therefore important to clean out the ducts when too much dirt has collected.

  • Page 17: User Settings Ventilation

    Compact P / Compact P Polar (English) BY NILAN User settings Ventilation Filter settings The filter alarm has a timer which is set at the factory to give 90 days between filter changes. Supply air filters and extract air filters are set separately. The unit leaves the factory with a G4 standard filter, but an F7 pollen filter can be purchased for the outdoor air.

  • Page 18: Operating Mode

    Operating mode It is possible to provide the unit with an input which determines whether it will operate in Auto, Heating or Cooling. Ventilation Operating mode Settings: Auto/ Heating/ Cooling Standard setting: Auto Description: Auto : The unit operates in accordance with the set values.

  • Page 19: Humidity Control

    Compact P / Compact P Polar (English) BY NILAN Humidity control The unit has a built-in humidity control to control the ventilation relative to the average humidity, in order to maintain a good relative humidity in the house. If the average humidity in the house is below a set level (factory setting 30%), it is possible to reduce the ventilation to avoid further drying of humidity in the house.

  • Page 20: Settings Active Cooling

    Settings active cooling Depending on architecture, the dwelling may require cooling in the summer. Compact P has an integral heat pump, primarily used for production of domestic hot water. The heat pump has a reversible cooling cycle, and in summer is able to cool the supply air, while still producing domestic hot water. Thus, in principle, this gives "free"...
  • Page 21 Compact P / Compact P Polar (English) BY NILAN Prioritisation sequence in the control system: 1. User selection 2 and 1 with high priority for ventilation User selection 2 2. High ventilation in connection with cooling User selection 1 3. Low ventilation in connection with low outdoor air...

  • Page 22: Ventilation At Times Of Low Outdoor Air Temperature

    Ventilation at times of low outdoor air temperature It is possible to prevent low humidity in the home by reducing ventilation in case of low outdoor temperatures. This function is particularly useful in countries with heavy frosts and at high altitudes where the outdoor air is very dry.

  • Page 23: Co 2 Control

    Compact P / Compact P Polar (English) BY NILAN control ATTENTION A CO sensor is not standard in all units, but may be purchased as an accessory. If the occupancy varies greatly, it may be better to control ventilation by the CO -level in the extract air.

  • Page 24: Reading Off Temperatures

    Reading off temperatures Here readings can be taken from all temperature sensors. Ventilation Temperature sensor overview ↳ TExt room temperature (°C) Description: Indicates the room temperature measured by an external room sensor (only if connected). ↳ Temperature sensor status Description: Indicates whether sensor is in working order (OK / Error / Absent).

  • Page 25: Domestic Hot Water

    Compact P / Compact P Polar (English) BY NILAN Domestic hot water DHW standby function It is possible to set the hot water production on standby for a period between 1 and 180 days. In this way, energy for heating the domestic hot water can be saved when on vacation, or the holiday cabin is closed for the winter.

  • Page 26: Dhw Settings Domestic Hot Water Production

    DHW settings domestic hot water production Settings for hot water production have been set at the factory, but it may be necessary to adjust them to match the user´s needs. Domestic hot water production DHW hot water tank ↳ Settings hot water production ↳...

  • Page 27: Dhw Anti-Legionella

    Compact P / Compact P Polar (English) BY NILAN DHW anti-legionella The control system has an integral anti-legionella function for treatment of any legionella in the hot water tank. Domestic hot water production DHW hot water tank ↳ Anti-legionella settings ↳...

  • Page 28: General Settings

    General settings Display settings The brigtness of the display can be adjusted. It is also possible to set the display to shut down at a set time to save energy. General settings Display settings ↳ Brightness (%) Settings: 0 ↔ 100 % Standard setting: 100 % Description:...

  • Page 29: Week Program

    Compact P / Compact P Polar (English) BY NILAN Week program It is possible to program the unit to run in accordance with specific settings at fixed times of the week via a week program. General settings Week program ↳ List of week programs Description: This shows a list of week programs.

  • Page 30: Information

    Information Event log Warnings, alarms or changes to settings can all be read off in the event log. It is also possible to reset warnings and alarms in this menu. Information Event log ↳ See events Description: Pressing this shows a list of events, warnings and alarms.

  • Page 31: Read Data For Ventilation And Domestic Hot Water

    Compact P / Compact P Polar (English) BY NILAN Read data for ventilation and domestic hot water It is possible to read off current data for Compact P ventilation and domestic hot water. Information Compact P all device data ↳ Software version Description: Shows the installed software version.
  • Page 32 ↳ T1 Outdoor temperature Description: Shows the outdoor temperature. ↳ T2 supply air temperature Description: Shows the supply air temperature without after- heating element. ↳ T3 extract air temperature Description: Shows the room temperature. ↳ T4 extract air temp. heat exchanger Description: Shows the discharge air temperature after the heat exchanger.

  • Page 33: Troubleshooting

    Compact P / Compact P Polar (English) BY NILAN Troubleshooting Alarm lists Alarm list, ventilation and domestic hot water The first column in the event log shows whether it is master (M) or slave (3) that the event is applicable...
  • Page 34 Info Too long start-up of a function Software error Turn the unit off and on again. If the error reoccurs, contact the installer. Info Slave device connected A new slave device has been connected Failure in de-icing De-icing error (2 hours) Check counterflow heat exchanger.

  • Page 35: Emergency Operation

    Compact P / Compact P Polar (English) BY NILAN Emergency operation Emergency operation domestic hot water If an error occurs in the controller or components in the Compact P, and the unit therefore stops, it will not be able to produce domestic hot water.

  • Page 36: Technical Data

    Technical data Ecodesign data Hot water production Consumer profile, water heater L (large) Energy efficiency class Energy efficiency for water heating - average climate 94 % Annual electricity consumption - average climate 1081 kWh/annum Temperature settings on the thermostat 10 - 65 °C Sound power level LWA 57 dB(A) The water heater can function outside peak load periods (Smart-grid)

  • Page 37: Ce Declaration

    Compact P / Compact P Polar (English) BY NILAN CE declaration Compact P / Compact P Polar...
  • Page 39 Compact P / Compact P Polar (English) BY NILAN...
  • Page 40 United Kingdom: S L Services 25 St Leonards Road, Horsham RH13 6EH West Sussex Tlf. +44 (0) 7919 444452 stuart315@aol.com www.nilanuk.com Ireland: Nilan Ireland Ballylahive, Abbeydorney Tlf. +353 (0) 87 9798361 maurice@nilan.ie www.nilanireland.ie Nilan A/S Nilanvej 2 DK-8722 Hedensted Tlf.
