HW installation
Step 1: Please connect serial port to device as follow pinout
Step 2: Please connect to 5~32 VDC power supplier, after boot up, the LED of power will
light up.
Step 3: After plugging in power adapter. The modem is usually fully operational within 4
seconds, after powering it up. Depending on the signal strength of the network in the area,
logging into a network may take longer and is outside the control of the modem.
The device is ready after LED of signal is lighted. Then user can operate it.

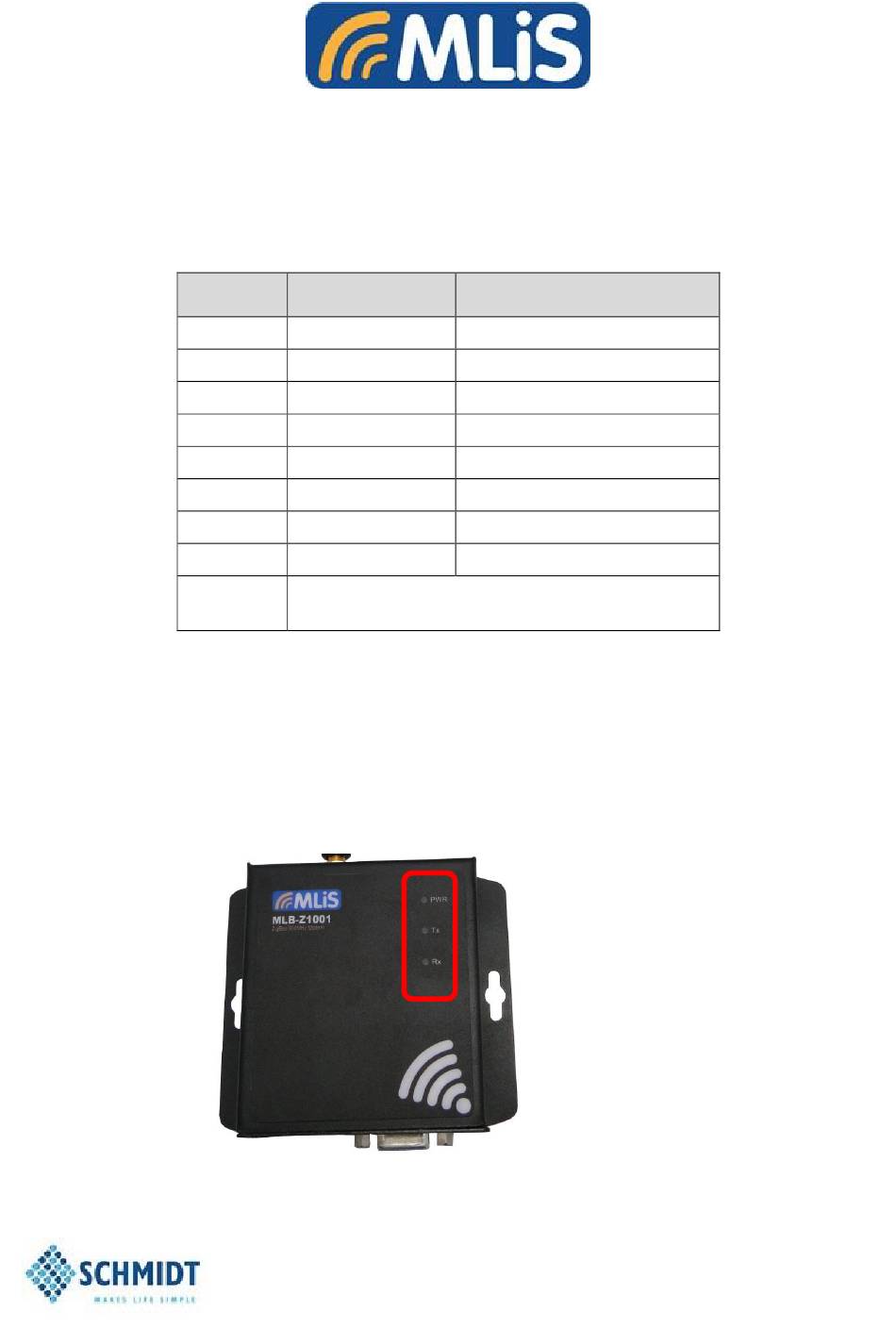

MLB-Z1001 Quick Installation Guide
Pin No.
Signal Name
1
DCD
2
RXD
3
TXD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
Function
Input
Input
Output
Output
GND
Input
Output
Input
Not used
