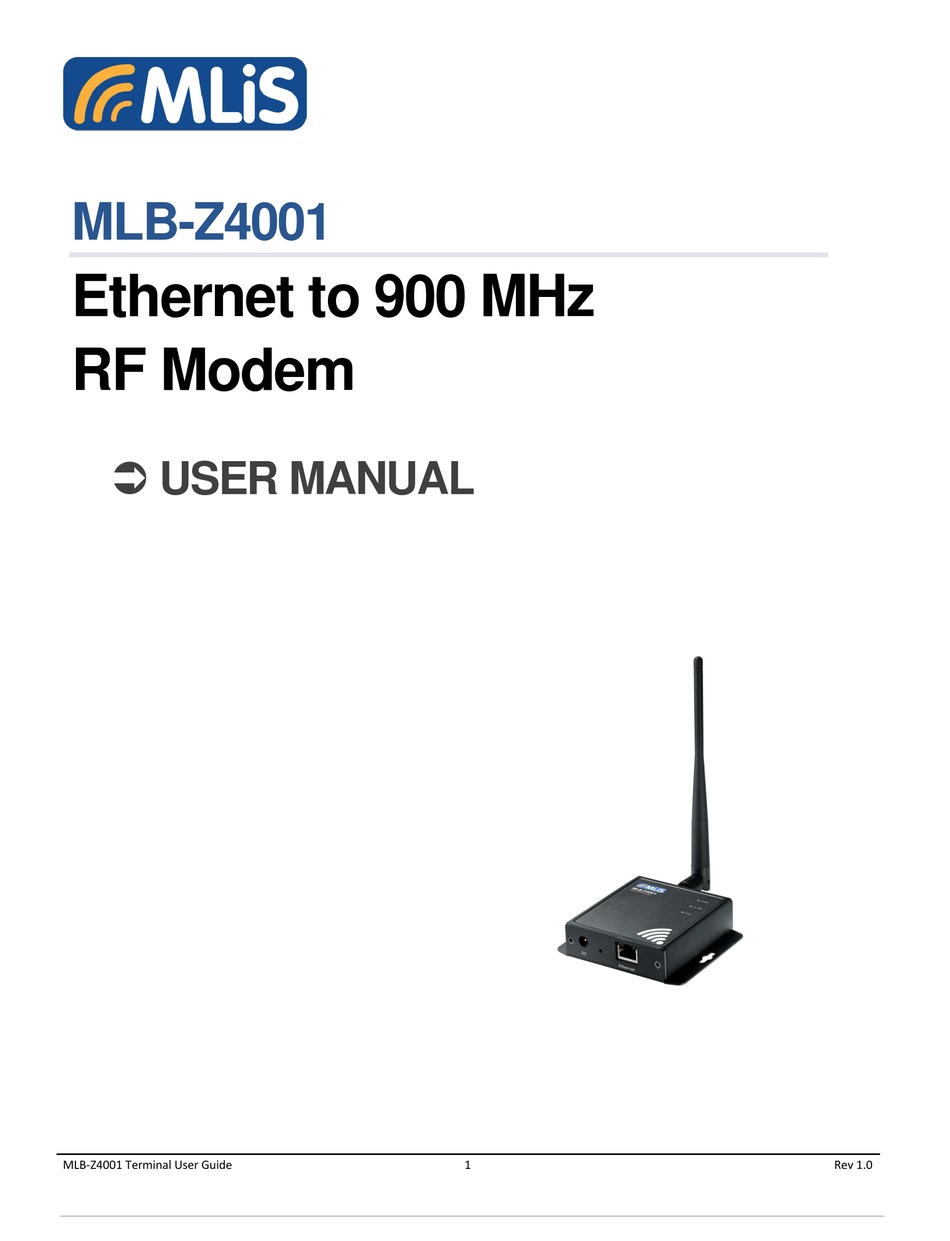

Page 1: User Manual
MLB-Z4001 Ethernet to 900 MHz RF Modem USER MANUAL MLB-Z4001 Terminal User Guide Rev 1.0... - Page 2 WARNING: The MLiS GSM Terminal is a RF product intended for interfacing and operating with a host device. Local relevant RF regulations such as allowed frequencies and usage in commercial flights must be observed.
-
Page 3: Table Of Contents
Radio Interface (Type SMA Connector Female) - RF Antenna ..........13 OPERATING MODES ........................14 Power on the Modem ......................14 4.2 Configuration Tool ......................... 14 4.1.1 Data Connection Demo ....................... 15 SALES CONTACT ........................... 18 ORDER INFORMATION ........................19 MLB-Z4001 Terminal User Guide Rev 1.0... - Page 4 List of Tables Table 1: Operating Modes ........................8 Table 2: Features and Specifications ..................... 9 Table 3: Chassis Dimensions and Mechanical Description for MLB-Z4001 .......... 10 Table 4: RS232 connector configuration for MLB-Z4001...…………………………………………… ……12 Table 5 : Interfaces and Indicators Description of MLB-Z4001 ............. 13 MLB-Z4001 Terminal User Guide Rev 1.0...
-
Page 5: Introduction
1 INTRODUCTION Description The MLiS MLB-Z4001 900HMZ ZigBee terminal is a compact terminal that is designed for wireless M2M communications. The MLB-Z4001 terminal uses the RJ45 Connector to provide data communication interface and the DC jack to provide power input. LEDs are used to indicate the status of the terminal. - Page 6 Outdoor/ Line-Of-Sight Range: Up to 9 miles (14 km) w/ dipole antenna; Up to 28 miles (45 km) w/ high-gain antenna • Transmit Power: Up to 24 dBm (250 mW) software selectable • Receiver Sensitivity: -101 dBm @ 200 Kbps, -110 dBm @ 10 Kbps MLB-Z4001 Terminal User Guide Rev 1.0...
-
Page 7: Functional Block Diagram
Functional Block Diagram Figure 1: Functional Block Diagram for MLB-Z4001 The MLB-Z4001 consists of a fully certified (CE approved) . The terminal is supplied with power via the DC jack connector. The RJ45 connector pins are used for data communications. -
Page 8: Main Features And Services
Main Features and Services The MLB-Z4001 performs a set of ZigBee services according. The services and functions of the MLB-Z4001 are implemented by issuing customized applications embedded on the device, or over the RJ45 to Ethernet interface. 1.4.1 Operating Modes The table below briefly summarizes the various operating modes referred to in the following chapters. -
Page 9: Terminal Features And Electrical Specifications
Table 2: Features and Specifications Precautions The MLB-Z4001 terminal is designed for indoor use only. For outdoor use it has to be integrated into a weatherproof enclosure. Do not exceed the environmental and electrical limits as specified in the user manual. -
Page 10: Mechanical Description
Parameter Value Height (H) 24mm Length (L) 85mm Width (W) 97mm Weight 210g Chassis Material Metal Mounting Suitable for use with DIN Standard Rail Clips Table 3: Chassis Dimensions and Mechanical Description for MLB-Z4001 MLB-Z4001 Terminal User Guide Rev 1.0... -
Page 11: Electrical Interface Descriptions
Figure 3: External Interfaces/Indicators for MLB-Z4001 Table below defines the RJ45 pin configuration on the Terminal: Pin No. Signal Name Function VDD33A VDD33A LED1+ Indicator LED1- LED2+ Indicator LED2- Table 4: RJ45 Connector Configuration for MLB-Z4001 MLB-Z4001 Terminal User Guide Rev 1.0... -
Page 12: Table 5: Interfaces And Indicators Description Of Mlb-Z4001
The interfaces and indicators for MLB-Z4001 are as follows: Item Description Function DC-jack For Power Reset HW-Reset-Key RJ45 Signal Transmission Signal Trans Item Description Function Status LED (Green) -
Page 13: Radio Interface (Type Sma Connector Female) - Rf Antenna
The connection of the antenna or other equipment must be decoupled from DC voltage. For optimum RF performance, the MLiS Terminal has to be connected to an external RF antenna matched to 50ohms including other connecting cables across the operating frequency bands. -
Page 14: Operating Modes
4.2 Configuration Tool The MLB-Z4001 Configuration Tool can be used to set Network ID, Source Address, Destination Address and send data for test MLB- Z4001. -
Page 15: Data Connection Demo
4.1.1 Data Connection Demo Set IP of NIC to 192.168.0.5 for communicating with Z4001. Use the Finder to find the IP of Z4001. MLB-Z4001 Terminal User Guide Rev 1.0... - Page 16 Then use utility connect to the IP with port 5000 (Notice! If connect to unknown IP will cause error! ) After about 5-10 sec will be connected and show => now we can Read the value of XBee now or disconnect. MLB-Z4001 Terminal User Guide Rev 1.0...
- Page 17 After press Read All => it takes a while to read the value of XBee. Now we can modify value then Press Write All, after a while the Value will be set. MLB-Z4001 Terminal User Guide Rev 1.0...
-
Page 18: Sales Contact
3/F Unit E, International Culture Building, Fu Tian Road, Shenzhen 518033 T (86-755) 8376-0232 F (86-755) 8376-0025 info@schmidthk.com Singapore Schmidt Electronics (S.E.A.) Pte Ltd 158 Kallang Way #06-10, Performance Building Singapore 349245 T (65) 6272-7233 F (65) 6273-4750 info.sg@schmidtelectronics.com MLB-Z4001 Terminal User Manual Rev 1.0... -
Page 19: Order Information
6 ORDER INFORMATION MLiS Product MLB-Z4001: MLiS 900MHZ ZigBee Terminal Power Adaptor MLA-PSP-100: Input: AC 100 ~ 240V Output: 9V/1.3A DC jack 5.5/2.1 MLA-PSP-101: US Adapter Plug MLA-PSP-104: British Adapter Plug MLA-PSP-103: European Adapter Plug MLA-PSP-102: Australia Adapter Plug MLA-CAB-001: DC jack power line 5.5/2.1... - Page 20 Regional Contact Taiwan | +886 2-2502-5095 China | +86 (755) 8376-0232 Singapore | +65 6272-7233 Email sales.mlis@schmidtelectronics.com Official Website MLiS Website | www.schmidtm2m.com Support | www.schmidtm2m.com/support Download | www.schmidtm2m.com/download Facebook | www.facebook.com/MLiSM2M MLB-Z4001 Terminal User Manual Rev 1.0...
