MLB-G1101 Quick Installation Guide

HW installation

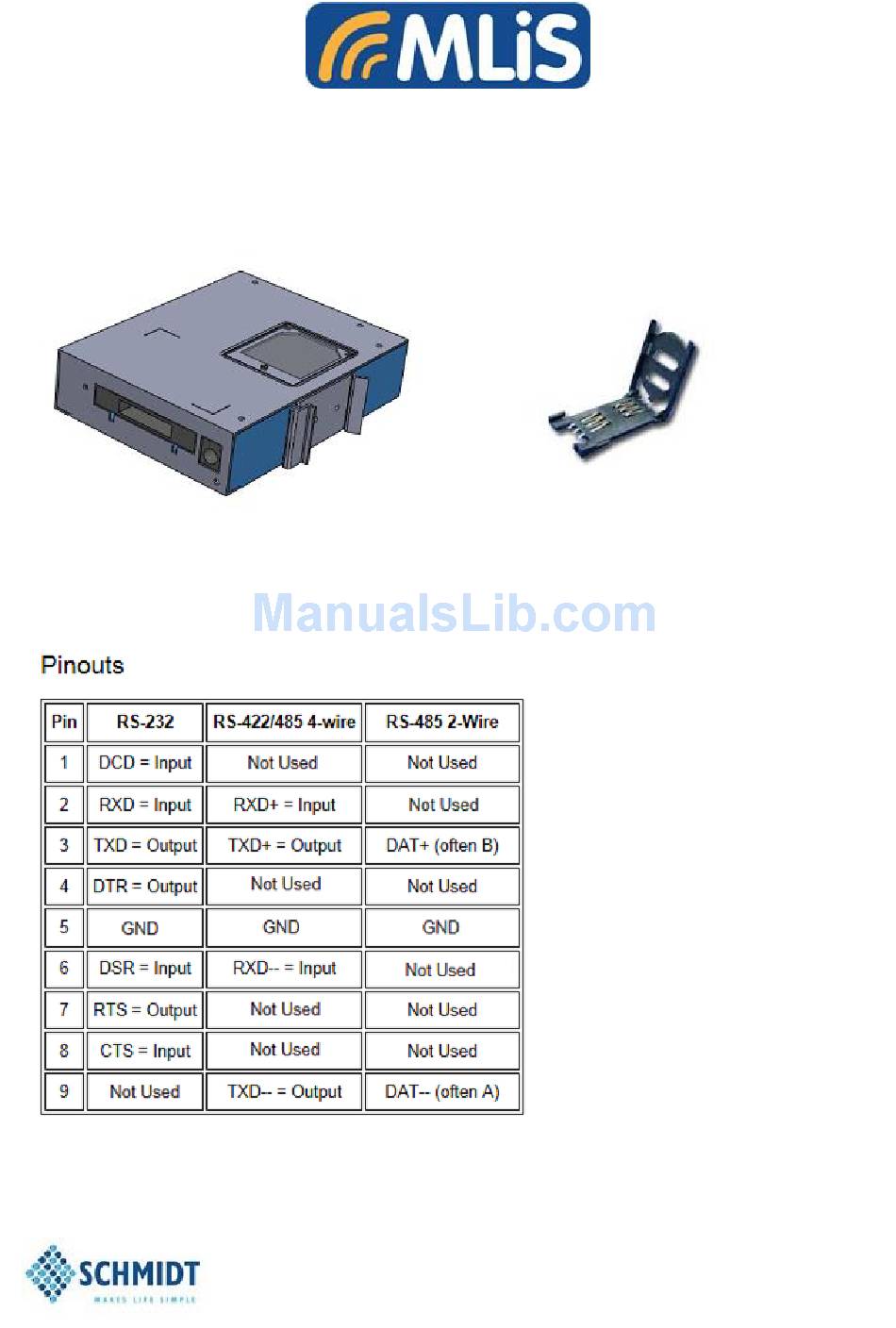

Step 1: Please insert SIM card into SIM card holder as follows
＊Be sure to power off the modem when you replace the SIM card. Otherwise it may cause
damage to the equipment.
Step 2: Please connect serial port to device as follow pinout
Step 3: Please connect to 5~32 VDC power supplier, after boot up, the LED of ready will light
up.
