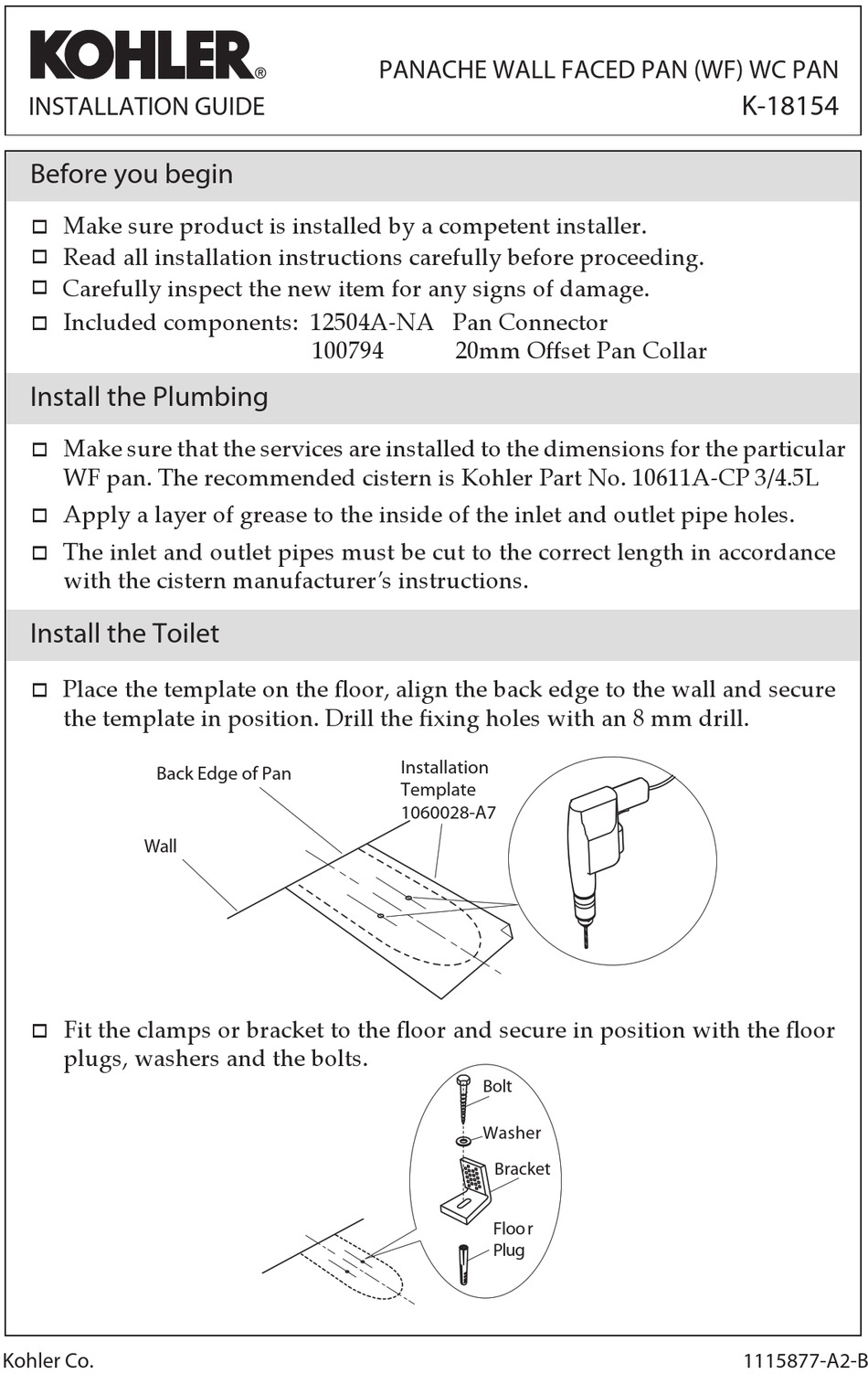

Kohler K-18154 Installation Manual

INSTALLATION GUIDE

Before you begin

Make sure product is installed by a competent installer.

Read all installation instructions carefully before proceeding.

Carefully inspect the new item for any signs of damage.

Included components: 12504A-NA Pan Connector


Install the Plumbing

Make sure that the services are installed to the dimensions for the particular

WF pan. The recommended cistern is Kohler Part No. 10611A-CP 3/4.5L
Apply a layer of grease to the inside of the inlet and outlet pipe holes.

The inlet and outlet pipes must be cut to the correct length in accordance

with the cistern manufacturer's instructions.

Install the Toilet

Place the template on the floor, align the back edge to the wall and secure

the template in position. Drill the fixing holes with an 8 mm drill.
Back Edge of Pan
Wall
Fit the clamps or bracket to the floor and secure in position with the floor

plugs, washers and the bolts.
Kohler Co.
PANACHE WALL FACED PAN (WF) WC PAN
100794 20mm Offset Pan Collar
Installation
Template
1060028-A7
Bolt
Washer
Bracket
Floo r
Plug
K-18154
1115877-A2-B
