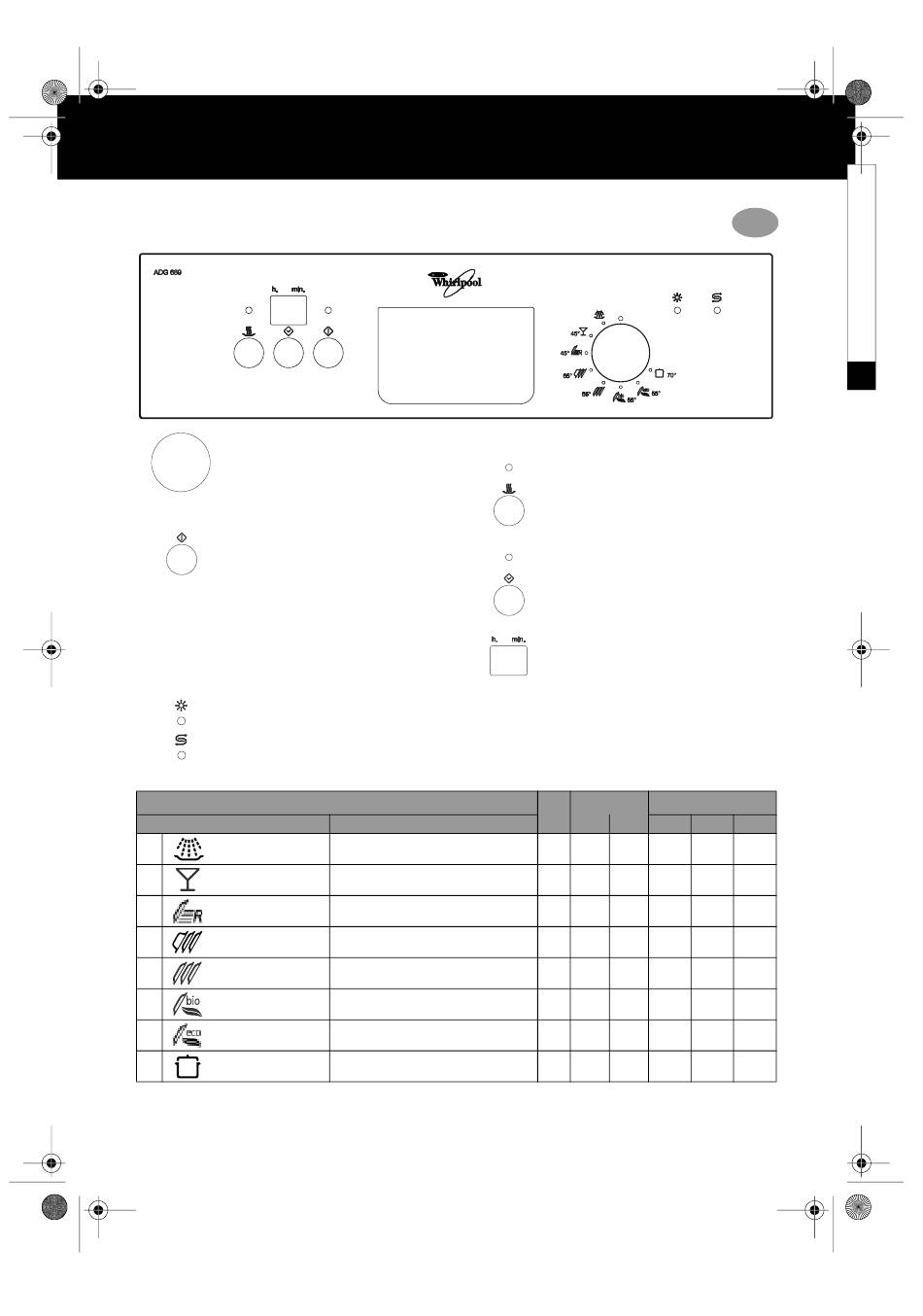

3GB96013.fm Page 1 Wednesday, September 15, 2004 2:34 PM
ADG 689
Programme ON/OFF selector knob
First press and release the selector knob to access it,
and then turn it to select the desired programme;
the dishwasher switches on.
To switch off the dishwasher when the programme
has finished, turn the selector knob to off.
Start button
Press to start the wash cycle and keep pressed until
an acoustic signal confirms the start of the wash
cycle. The display shows the approximate duration
of the wash cycle.
Note: the light above the start button blinks during
the wash cycle.
The light stops blinking and remains alight to
indicate the cycle has ended ("End" on the display)
or has been interrupted due to a fault
("E1, E2...." on the display).
Indicators
Add rinse aid
Add regeneration salt
Only add regeneration salt immediately before
starting a wash programme.

Programme chart

Programmes
P1
Pre-Rinse
P2
4)
Delicate
P3
Rapid 30 min
P4
4)
Normal
P5
4)
Universal
P6
4)
Bio
P7
1) 4)
Eco
P8
4)
Intensive
1)
Reference programme for energy label in compliance with EN 50242 (the
reference cycle refers to a cycle with the "Eco Dry" function selected);
2)
Refer to "User instructions";
Whirlpool is a registered trademark of Whirlpool USA
Black process 45.0° 100.0 LPI
Before using the dishwasher, read the user instructions!
Quick Reference Guide
Loading instructions
cold
Crockery to be washed later.
45°C
Light soiling, for example glasses and cups
45°C
Lightly soiled crockery with no dried-on food.
65°C
Normally or heavily soiled crockery.
65°C
Normally or heavily soiled crockery.
55°C
Normally or lightly soiled crockery, with dried-on food
55°C
Normally soiled crockery.
Recommended programme for heavily soiled crockery,
70°C
especially suitable for pans and saucepans.
3)
4)
Options
"Eco Dry" button
Press the button to active drying using the
energy-saving ventilation system.
"Delayed start" button
The wash cycle can be programmed to start after
1-12 hours. Then press the Start button. After a
prewash the set delay will start.
Display
The display shows all the information relating to
the functions selected.
2)
Detergent
Eco
Dry
A
B
-
-
-
X
X
-
-
X
-
X
X
X
X
X
-
X
X
X
X
X
-
X
X
X
Programme data obtained in conformity with European standard
EN 50242. Values may vary in relation to usage, e.g.: different loads,
water temperatures - above or below 15° C - as well as water hardness
and power supply voltage, etc.
Programmes with "Eco Dry" last approx. 30 min. more.
5019 396 96013
(We reserve the right to make technical modifications)
GB
3)
Consumption
Litres
kWh
Minutes
5.0
0.02
9
12.0
0.90
79
13.0
0.35
30
17.0
1.18
100
13.0
1.23
100
17.0
1.08
108
13.0
1.01
160
20.0
1.48
125
