Thecus i Series User Manual page 18

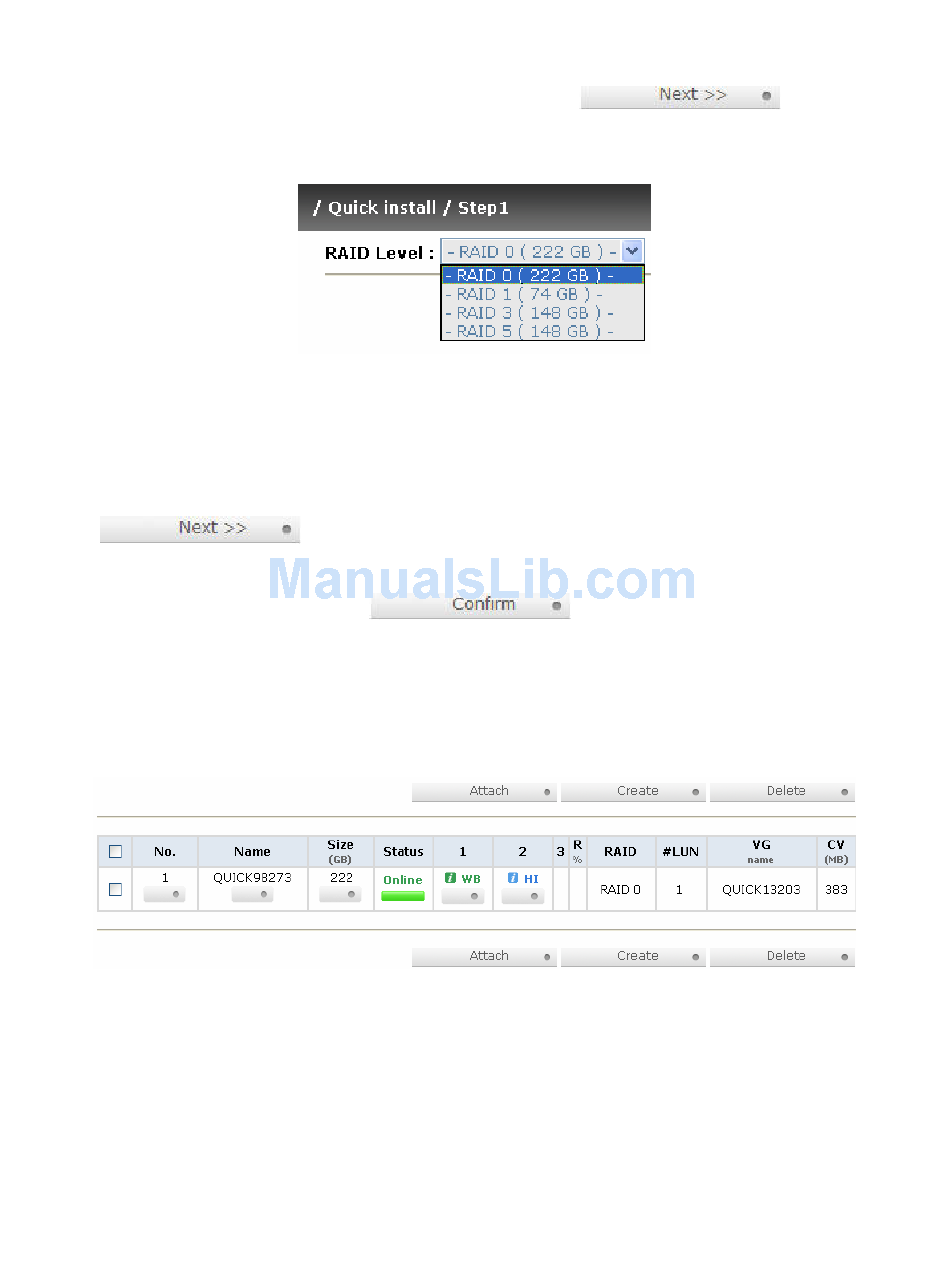

Step 1: Select "Quick install" then choose the RAID level to set. Please refer to
Figure 3.3.1. After choosing the RAID level, click "
links to another page, user can set up "LUN" here.
Step 2: Please select a LUN number. Access control of host would show as a
wildcard "*", which means every host can access this volume. In this page, the
"Volume size" can be changed. The maximum volume size is shown. To re-enter
the size be sure it has to be less or equal to maximum volume size. Then click
"
Step 3: Confirm page. Click "
a page with the "User data volume" just been created will be shown as Figure
3.3.2.
Done. You can start to use the system now.
(Figure 3.3.2: A RAID 0 user data volume with the UDV name "QUICK98273", named by the
system itself, with the total available volume size 222GB.)
Figure 3.3.1
".
Figure 3.3.2
- 18 -
" if all setups are correct. Then
", which
