VJ628 SubliJet-HD Startup Guide
sawgrassink.com/Portal/Tech-Support/Technical-Documents/SubliJet-HD-ProPhoto-XF/VJ628-SubliJet-HD-Startup-Guide.aspx
Home
/ VJ628 SubliJet-HD Startup Guide
Unpacking and Assembly
Warnings
Unpacking and Assembly
Warning
Two or more people should carry out the operations of unpacking and moving this printer.
Be sure to keep this product level when moving it.
Unpacking - Installation Box

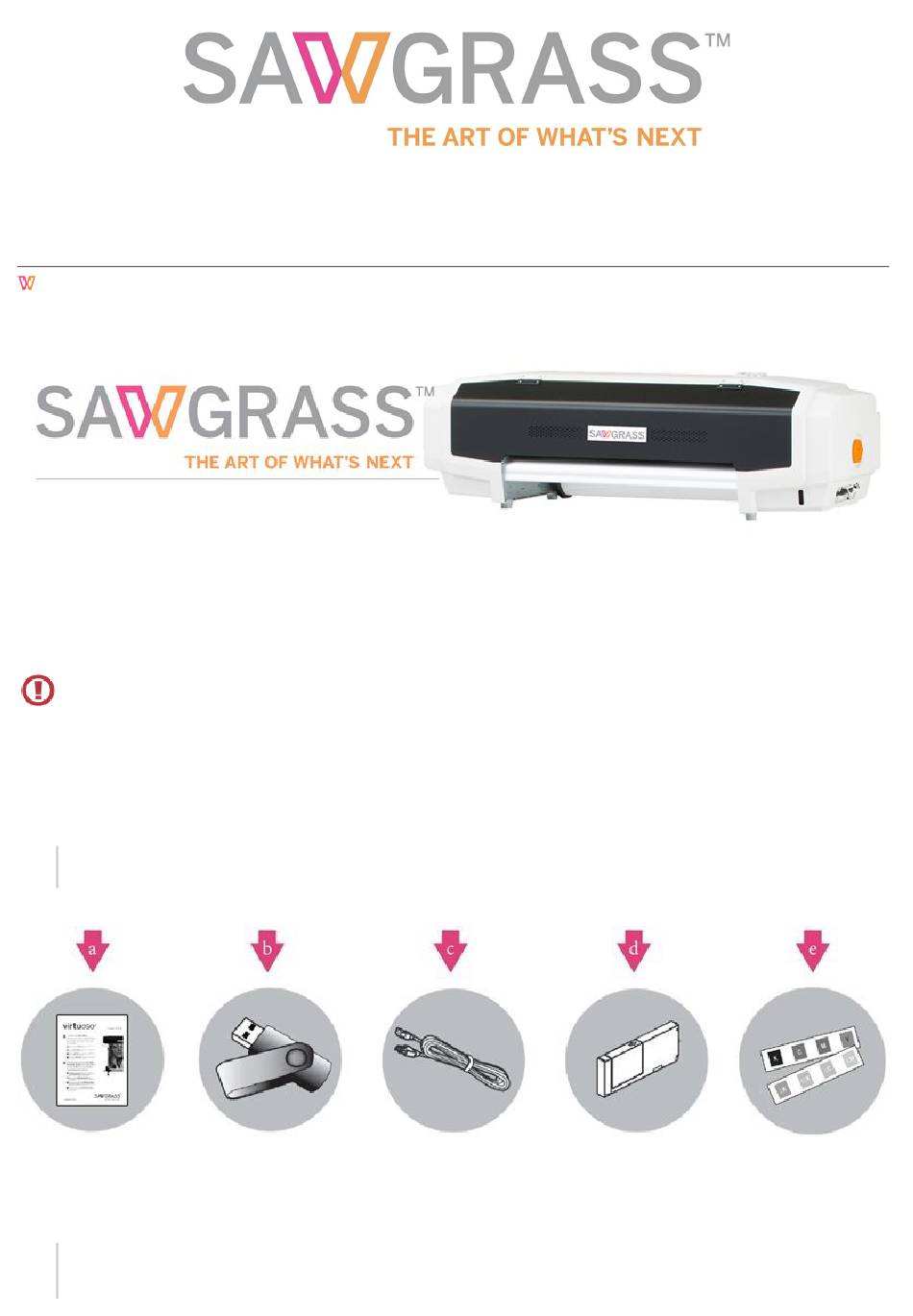

1. Open the installation box and confirm that it contains the following. See Figure 1.
Figure 1
a) Virtuoso VJ 628 Getting Started Guide (x1)
b) USB drive (x1)
|
Connecting Cables
|
Take-Up Unit Assembly
|
Installing & Configuring Software
|
Safety Tips &
1/26
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sawgrass SubliJet-HD VJ628
Summary of Contents for Sawgrass SubliJet-HD VJ628
- Page 1 VJ628 SubliJet-HD Startup Guide sawgrassink.com/Portal/Tech-Support/Technical-Documents/SubliJet-HD-ProPhoto-XF/VJ628-SubliJet-HD-Startup-Guide.aspx Home / VJ628 SubliJet-HD Startup Guide Unpacking and Assembly Connecting Cables Take-Up Unit Assembly Installing & Configuring Software Safety Tips & Warnings Unpacking and Assembly Warning Two or more people should carry out the operations of unpacking and moving this printer. Be sure to keep this product level when moving it.
- Page 2 c) Power Cords (x2) d) Cleaning cartridges (x8) e) Ink Cartridge assignment stickers Unpacking - Printer Box 2. Open the printer box and confirm that it contains the following. See Figure 2. Figure 2 a) Roll media holder (x1) b) Printer (x1) c) Accessory box (x1) 2/26...
- Page 3 3. Open the accessory box (located in the printer box) and confirm that it contains the following. See Figure 3. Figure 3 a) Lint free cloth (x1) b) Pack of cleaning swabs (x1) c) Tying bands (x2) d) Media guides (x2) Unpacking - Printer Stand Box 4.
- Page 4 Figure 4 a) Stand top piece (x1) b) Stand bottom piece (x1) c) Stand middle piece (x1) d) Hexagon wrench (x1) e) Wing screws (x2) f) Hexagon socket head screws (x4) Unpacking - Take-Up Unit Box 5. Open the take-up unit box and confirm that it contains the following. See Figure 5. Figure 5 a) Rail (x1) b) Hexagonal screw (x8)
- Page 5 c) Hexagonal wrench (x1) d) Rail cap (x2) e) Driving unit (x1) f) Adapter for three inch media (x2) g) Rail fixing plate (x2) h) Thumbscrew (x2) i) Driven unit (x1) Additional items you will need. (Not Supplied) 6. In order to install the product and make the initial settings, you will need the following items in addition to the packaged items.
-
Page 6: Installation / Assembly
Warning Be sure to use a power cable of the specified type. Using any other power cable could result in electric shock or fire. Do not use a damaged power cable. It could cause electric shock or fire. Installation / Assembly 7. - Page 7 When adding a take-up system to your printer, these media guides will need to be removed. Figure 7 10. Install one of the accessory tying bands to the position shown below. This tying band is for fastening the power cable so that it will not interfere with the roll media. To release the tying band, simply press its lever. See Figure 8.
- Page 8 Figure 9 Warning The operation of mounting the printer onto the stand must be carried out by two or more people working together. Before installing printer onto stand ensure there is no power to printer. 12. Assemble the stand. See Figure 10. 8/26...
- Page 9 Figure 10 13. Lock the casters. See Figure 11. 9/26...
- Page 10 Figure 11 14. Align the printer's rubber feet with the stand's protrusions, and mount the printer to the stand with the two wing screws. See Figure 12. Figure 12 15. Open the front cover and turn the media fixing knob to release the fixing mechanism. See Figure 13. 10/26...
- Page 11 Figure 13 16. Remove the roller protective sheet. See Figure 14. Figure 14 17. Remove the protective material from the steel bar. See Figure 15. 11/26...
- Page 12 Figure 15 18. Peel away the tape then move the left and right paper guides to their outer positions. See Figure 16. Figure 16 19. Peel the tape off of the cutter. See Figure 17. 12/26...
- Page 13 Figure 17 20. Remove the screws and head fixing plate. See Figure 18. Figure 18 21. Apply the ink specific cartridge assignment stickers to the back of the printer over the cartridge slots. See figure 19. 13/26...
-
Page 14: Connecting Cables
Figure 19 Notice Store the roller protective sheet, head fixing plate, and screws. They can be reused if you ever need to transport the printer. Connecting Cables 1. Before connecting cables, close the front cover, turn the media fixing knob to its locked position, then check to make sure the waste ink valve is locked. - Page 15 Figure 21 3. Units with serial numbers equal or greater than 1E1003000 have an auto switching input and can be connected to AC mains with voltage ranges of 100V to 240V. The power supply frequency is either 50Hz +/- 1 Hz or 60Hz +/-1Hz.
- Page 16 Figure 23 5. Use the tying band to fasten the power cable. See Figure 24. Figure 24 6. Insert the power cable plug into the outlet. Be sure to insert it correctly. See Figure 25. 16/26...
- Page 17 Figure 25 7. Connect the ethernet cable to the printer. See Figure 26. Figure 26 8. Use the tying band to fasten the ethernet cable. See Figure 27. 17/26...
- Page 18 Figure 27 9. Connect the ethernet cable to your computer. If you use the product with a LAN, connect the cable so that the computer and printer are on the same subnet. The following figure is an example of peer-to-peer connection between this product and computer.
- Page 19 Take-Up Unit Assembly 1. Place the rail on the front side of the stand. Attach the rail fixing plate from the bottom. Using the attached hexagonal wrench, tighten the hexagonal screw. See Figure 30. Figure 30 2. Make sure that bottom of the screws of driving unit and driven unit are into the groove, then slide the unit. Embed them so that the driving unit is on the right side and the driven unit is on the left side when seen from the front.
- Page 20 Figure 32 4. Set the take-up tube. See Figure 33. Figure 33 5. Use thumbscrews to fix the driving unit and driven unit on the rail. See Figure 34. 20/26...
- Page 21 Figure 34 6. Make sure that the operation switch is at the left. Connect the power cable. See Figure 35. Figure 35 For assistance with installing the take-up unit to run with your VJ628 printer, refer to the Installation Guide. Warning Use this product under the power supply environment indicated below.
-
Page 22: Installing And Configuring Software
Installing and Configuring Software Notice : If you intend on using Sawgrass PowerDriver-v4 with your SubliJet-HD VJ628, this is the time to install it. Sawgrass PowerDriver-v4 can be used with the following inksets: Dual CMYK, HD ProPhoto and HD ProPhoto XF. If you are using the HD ProPhoto XG inkset, extended gamut orange and blue spot colors;... - Page 23 Cutter Caution Label Since the cutter blade can cause injury, do not insert fingers. Caution Label for Hand Insertion Since it may cause injury when coming in contact with the carriage, do not insert hand. Figure 36 Concerning electric shock, short circuits, and fire Warning Do not install printer where it is humid or dusty.
-
Page 24: Installing The Printer
Connect all cords (cables) in the ways specified in this guide. Mistakes in the cable connections could result in a fire. Be sure to use the specified power cord. Use the power cable that conforms to the safety regulations, power supply voltage and plug shape of the country where you are using it. - Page 25 The information contained in this document is confidential and provided under license. No part of this document may be reproduced or transmitted in any form or by any means, including electronic medium or machine-readable form, without the expressed written permission of Sawgrass Technologies, Inc. 25/26...
- Page 26 Document 900005, VJ628 SubliJet Startup Guide, Rev 2. See QMS master document for changes. 26/26...
