Revision 1.0
12/2018
CANopen Router
Quick Start Guide
A-CANOR
REQUIRED SOFTWARE
The CANopen Router requires Aparian Slate software to setup and configure. The
software installation can be found at www.aparian.com/software/slate.
MODULE INSTALLATION

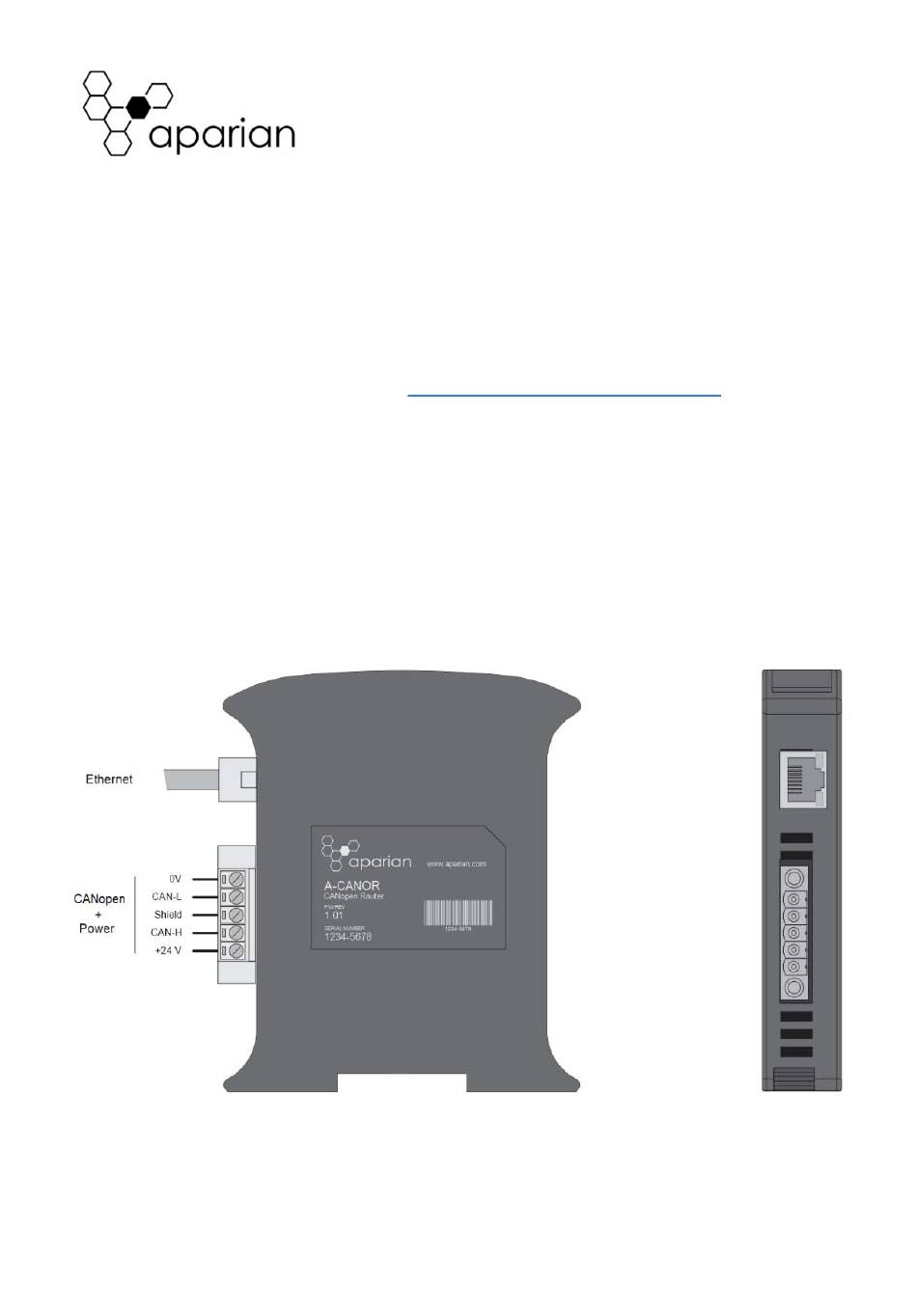

The CANopen Router requires input power of 10-28Vdc. The wiring of the power and
communication connector can be found in the wiring diagram below. The CANopen
Router communicates on both Ethernet and CAN bus (CANopen). The Ethernet
connector should be wired according to industry standards which can be found in the
Additional Information section.
The module has DIP Switches at the top. DIP switch 4 can be used to apply a 120Ω
terminating resistor across the CAN network (switched between Can-H and Can-L).
NOTE: If the device is at the end or start of the CANopen network the terminator
Document No. D124-011
Page 1 of 2
Advertisement
Table of Contents
Related Manuals for APARIAN A-CANOR
Summary of Contents for APARIAN A-CANOR
-
Page 1: Quick Start Guide
Quick Start Guide A-CANOR REQUIRED SOFTWARE The CANopen Router requires Aparian Slate software to setup and configure. The software installation can be found at www.aparian.com/software/slate. MODULE INSTALLATION The CANopen Router requires input power of 10-28Vdc. The wiring of the power and communication connector can be found in the wiring diagram below. -
Page 2: Network Setup
DHCP server to assign an Ethernet network address to the module. Refer to the additional information section for DHCP servers. Once the module has been assigned an Ethernet address the user can configure the module with Aparian Slate. ADDITIONAL INFORMATION The following resources contain additional information that can assist the user with the module installation and operation.
