Table of Contents

Revision 1.0
05/2017
J1939 Router

Quick Start Guide

A-J1939

REQUIRED SOFTWARE

The J1939 Router requires Aparian Slate software to setup and configure. The software
installation can be found at www.aparian.com/software/slate.

MODULE INSTALLATION

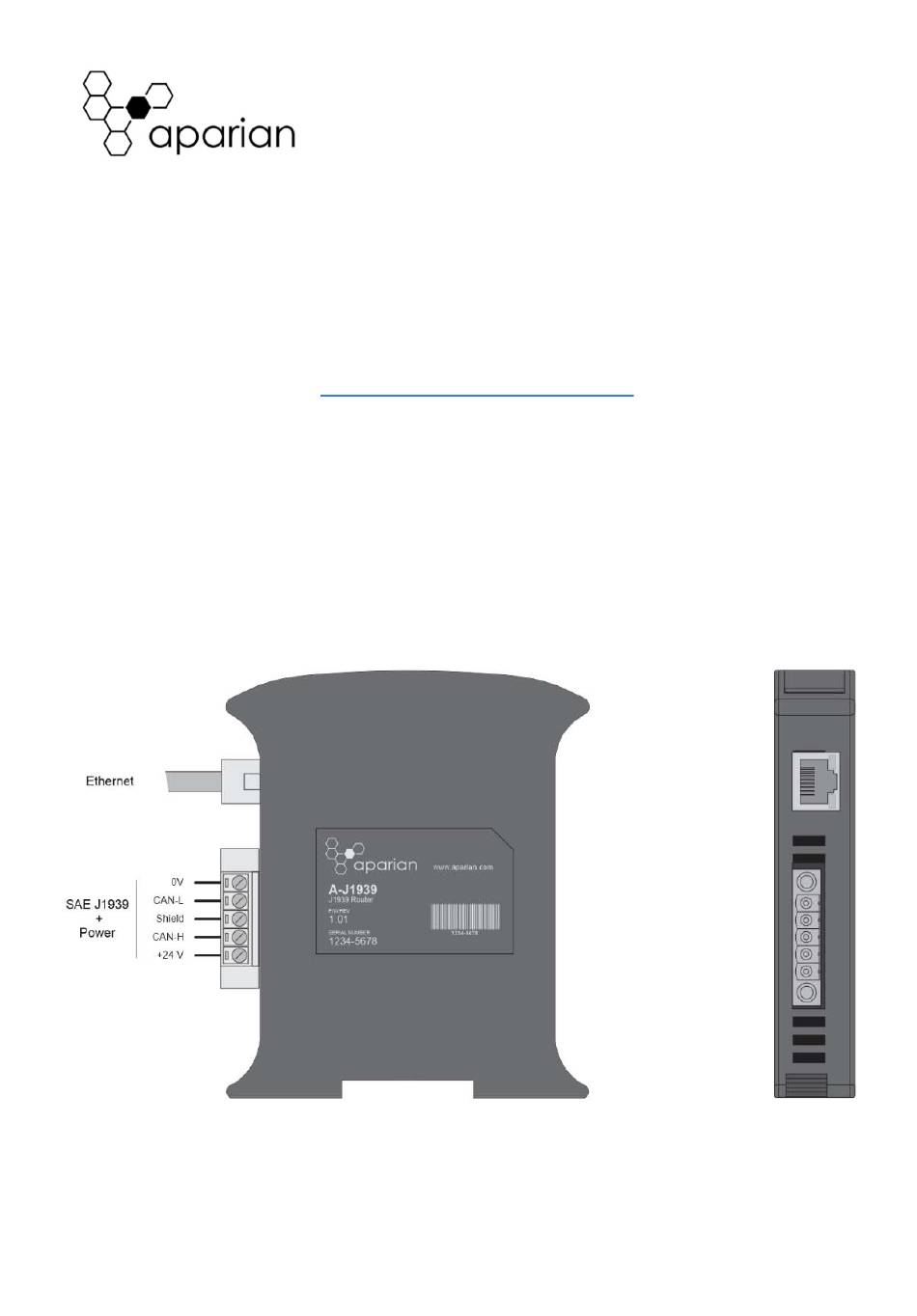

The J1939 Router requires input power of 10-28Vdc. The wiring of the power and
communication connector can be found in the wiring diagram below. The J1939 Router
communicates on both Ethernet and CAN bus (J1939). The Ethernet connector should
be wired according to industry standards which can be found in the additional
information section.
The module has DIP Switches at the top. DIP switch 4 can be used to apply a 120Ω
terminating resistor across the CAN network (switched between Can-H and Can-L).
NOTE: If the device is at the end or start of the J1939 network the terminator must
Document No. D123-011
Page 1 of 2
