Installation of Drywall Anchors
TOGGLER® brand SNAPTOGGLE® Toggle Bolt Installation Instructions. DO NOT attempt to
test the toggle as you will be unable to use them again. Need additional toggles? You may
purchase them at Lowes or find a local store on toggler.com.
IMPORTANT! If your house is older (maybe a Victorian?) with lath board plaster ceilings and walls, DO NOT use the new
drywall anchor system. Old lath board plaster walls are not strong enough to hold drywall anchors. In this case, you must
attach the wall rack to wood studs with wood lag screws (not included with your rack).

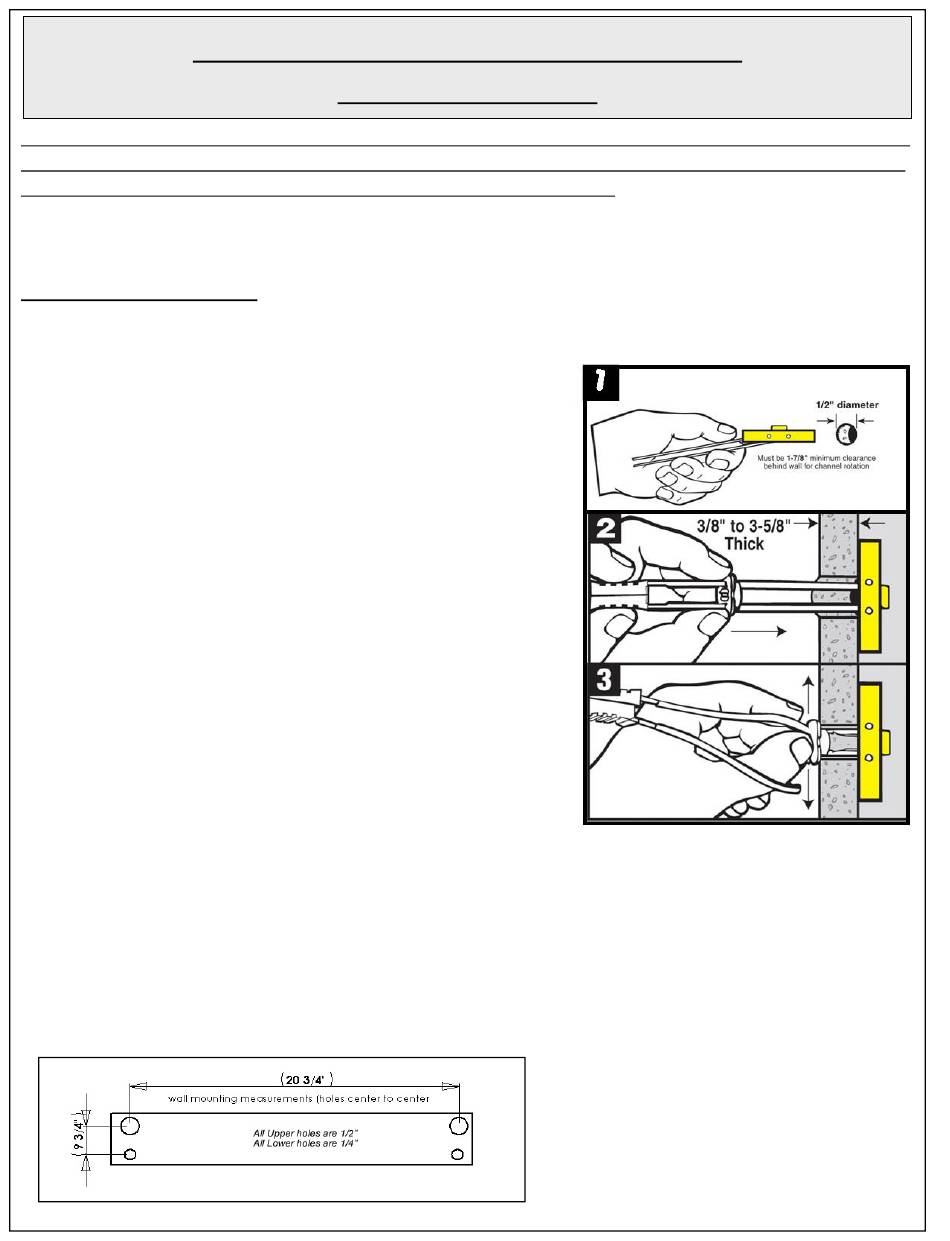

See diagram at bottom of page
1) Using an electric drill, drill a ½" hole at each of your UPPER points. Hold metal channel flat alongside plastic
straps and slide channel through hole. Minimum clearance behind wall should be 1 ⅞".
NOTE: If a wood stud happens to be located at one of those points,
Use a 3/16" x 1 ½" wood screw (provided) and screw it into the
stud. (Pre-drill a 1/8" hole in the stud so the screws are easier to
screw into the hole).
2) Firmly push plastic cap up along guide straps with other hand.
Press cap inside the hole, so flange is flush with drywall surface.
3) Bend straps at wall by pushing side to side, snapping off straps
level with flange of cap.
4) Repeat for other anchor point at top of rack arm.
5) Install the LOWER red sleeve anchors. Using an electric drill with
5/16" bit, drill a hole at each of the LOWER marks. With your ham-
mer, gently tap a red wall screw sleeve (30B) into each hole until it is
flush with the drywall surface.
6) At this point make sure you have already installed 1/4"
buttonheads (18A) in the lower holes of the back bar. These are
decorative only. Place the back bar (3D) in position INSIDE end
piece (a 1/8" gap will remain between the wall and bar), align holes
over hole in wall, then drive a wall screw (30A) through back bar and
bookshelf end piece into a red wall screw sleeve (red). Tighten bolt.
Repeat at other end of back bar.
7) Now with the rack and accessory shelf frame positioned on the wall ~ line up hole(s) at TOP of arms and on
the top of the accessory shelf brackets, with UPPER hole(s) in wall. Screw button head bolt (19C) through each
arm and the tops of the shelf brackets and into the wall anchors. Tighten bolts snugly.
That's It! You are now ready to hang your pots & utensils!
Bookshelf Rack
Toggler ® Independent Lab Results
(Anchor load before failure per attachment point)
TENSILE (ceiling)
SHEAR (wall)
½" drywall 275 lbs.
½" drywall 292 lbs.
5/8" drywall 576 lbs.
5/8" drywall 406 lbs.
