- Page 1 Operating Manual XONOX CT 200 X O N O X T e c h n o l o g y G m b H / / 3 5 6 2 5 H u e t t e n b e r g / / G e r m a n y...
- Page 2 X O N O X T e c h n o l o g y G m b H / / 3 5 6 2 5 H u e t t e n b e r g / / G e r m a n y P h o n e + 4 6 6 4 4 1 9 6 3 6 4 0 / / F a x + 4 9 6 4 4 1 9 6 3 6 4 1 0 / / w w w .
-
Page 3: Table Of Contents
Operating Manual CT 200 Content General ........................4 1.1. General instructions ..........................4 1.2. Scope of supply ............................4 Product description ....................... 5 2.1. Configuration ............................5 2.2. Operation elements ..........................6 Installation ........................7 3.1. Adjustment ..............................7 3.1.1. -
Page 4: General
General General 1.1. General instructions Dear Customer, always keep the instruction manual near to the XONOX CT 200. Only qualified people are allowed to use the XONOX CT 200. 1.2. Scope of supply The scope of supply consists of: - XONOX CT 200... -
Page 5: Product Description

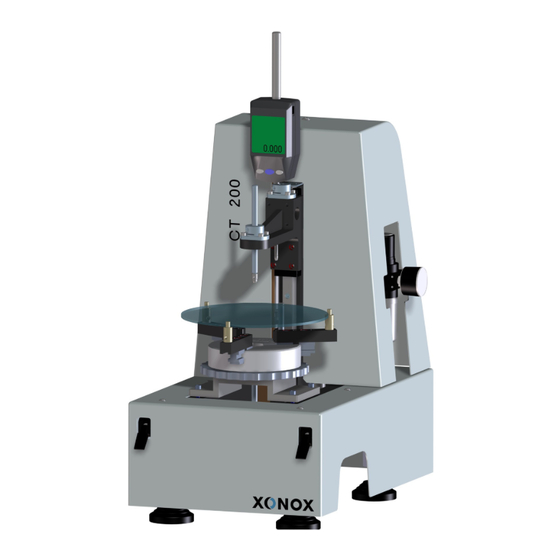

Operating Manual CT 200 Product description Product description 2.1. Configuration Illustration 1: XONOX CT 200 exposition with inscription Mitutoyo digital gauge 543-564D Input valve (pneumatic) Respective holder + gauge block 10mm Lower probe Manual chuck Switch lower probe UP/DOWN Switch upper probe UP/DOWN... -
Page 6: Operation Elements
Operating Manual CT 200 Product description 2.2. Operation elements Mituoyo digital gauge 543-564D - Turn on and off - Display for indication of measurements - Adjustment Preset: See chapter 5.1 or operating manual measuring gauge 543-564D Remote control for Mitutoyo digital gauge 543-564D... -
Page 7: Installation
Operating Manual CT 200 Installation Installation 3.1. Adjustment 3.1.1. Adjustment of the Lenses 1. Holding adapter for lenses 2. Manual chuck 3. Adapter for manual chuck Illustration 2: Centering device without lens 1. Front position oft he holding Adapter for lenses 2. -
Page 8: 3.1.2. Adjustment Oft He Upper And Lower Measuring Key Button
Operating Manual CT 200 Installation 3.1.2. Adjustment oft he upper and lower measuring key button 1. Release the clamping 2. Adjust the measuring key 3. Lock the clamping Illustration 5: Adjusting the upper probe 1. Hold the lower probe 2. Release the probe 3. -
Page 9: Alignment
Operating Manual CT 200 Installation 3.2. Alignment 1. loose the 4 screws of the adapter for the manual chuck. 2. Insert the alignment bushing 3. Putting down the upper probe 4. Adjust the manual chuck until upper probe fits easily through the alignment bushing.. -
Page 10: Safety Instructions
Safety Instructions 4.1. General safety instructions Only qualified people are allowed to use the XONOX CT 200. While measuring do not put any extremity in operation range (see picture at the bottom). Consider the risks of injury (cuts) and crushing. -
Page 11: Function And Measurement
Operating Manual CT 200 Function and measurements Function and measurement 5.1. Function of the measuring gauge 1. On-off button of the measuring gauge 2. Adjusting the preset of 10mm: Press and hold the [SET/ZERO] key for long time Change between INC- and Preset system... -
Page 12: Measuring Procedure
Operating Manual CT 200 Function and measurements 5.3. Measuring procedure 1. Upper probe DOWN (1) 2. Lower probe UP (2) 3. Measuring value is shown on measuring gauge 4. Lower probe DOWN (3) 5. Upper probe UP (4) Illustration 11: Switch for handling oft he measuring key... -
Page 13: Appendix
Operating Manual CT 200 Appendix Appendix 6.1. Technical Data Working range 60mm travel of measuring gauge on different adjustable positions Diameter range 10-200mm Measuring system Digital gauge with 0.5μ resolution Accuracy Digital gauge:+/-2,0μ Repeat accuracy: 1μ Total accuracy depending on lens geometry... -
Page 14: Pneumatic Plan
Operating Manual CT 200 Appendix 6.2. Pneumatic plan Page 14 of 14 X O N O X T e c h n o l o g y G m b H / / 3 5 6 2 5 H u e t t e n b e r g / / G e r m a n y...
