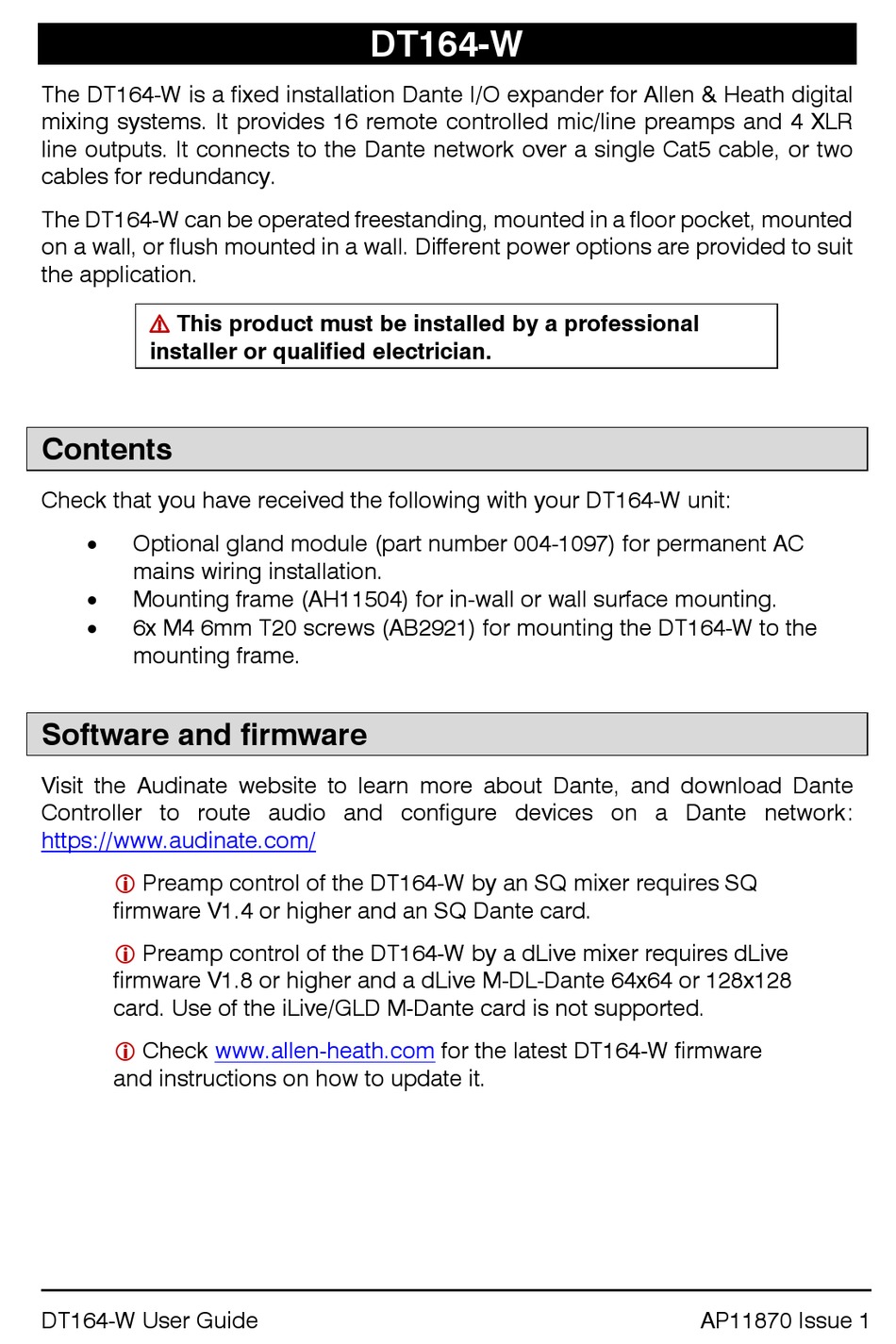

The DT164-W is a fixed installation Dante I/O expander for Allen & Heath digital
mixing systems. It provides 16 remote controlled mic/line preamps and 4 XLR
line outputs. It connects to the Dante network over a single Cat5 cable, or two
cables for redundancy.
The DT164-W can be operated freestanding, mounted in a floor pocket, mounted
on a wall, or flush mounted in a wall. Different power options are provided to suit
the application.
⚠
This product must be installed by a professional
installer or qualified electrician.
Contents
Check that you have received the following with your DT164-W unit:
•
Optional gland module (part number 004-1097) for permanent AC
mains wiring installation.
•
Mounting frame (AH11504) for in-wall or wall surface mounting.
•
6x M4 6mm T20 screws (AB2921) for mounting the DT164-W to the
mounting frame.
Software and firmware
Visit the Audinate website to learn more about Dante, and download Dante
Controller to route audio and configure devices on a Dante network:
https://www.audinate.com/
Preamp control of the DT164-W by an SQ mixer requires SQ
firmware V1.4 or higher and an SQ Dante card.
Preamp control of the DT164-W by a dLive mixer requires dLive
firmware V1.8 or higher and a dLive M-DL-Dante 64x64 or 128x128
card. Use of the iLive/GLD M-Dante card is not supported.
Check
and instructions on how to update it.
DT164-W User Guide
DT164-W
www.allen-heath.com
for the latest DT164-W firmware
AP11870 Issue 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ALLEN & HEATH DT164-W
Summary of Contents for ALLEN & HEATH DT164-W
- Page 1 DT164-W The DT164-W is a fixed installation Dante I/O expander for Allen & Heath digital mixing systems. It provides 16 remote controlled mic/line preamps and 4 XLR line outputs. It connects to the Dante network over a single Cat5 cable, or two cables for redundancy.
- Page 2 Routing tab to patch signals between Dante devices. When a valid DT164-W socket is routed to a dLive / SQ Dante card, and patched to an Input channel, the dLive / SQ will present preamp gain, +48V and Pad controls for the socket.
- Page 3 Reset Network settings Hold down the recessed switch for 10 seconds to reset the network settings for the DT164-W. This will delete any static IP address and revert to factory default (DHCP / zero-conf). DC 12V Input Can be used instead of AC mains to power the unit where adequate DC distribution is provided in a building.
-
Page 4: Front Panel
Input sockets Balanced XLR mic/line inputs with +48V Phantom Power indicator. The preamps are built into the DT164-W and their Gain, Pad and +48V are controlled from the network. The +48V indicator detects voltage at the socket whether supplied by the DT164-W or received from an external source. - Page 5 Fix the frame to the wall using appropriate fixings or screws for the type of wall, then align the threaded inserts on the sides of the DT164-W with the frame, and secure the unit in place with the 6x M4 6mmT20 screws provided.
- Page 6 Other options The DT164-W will fit a 12x12” NEMA Type 1 / IP10 box or equivalent. A custom mounting frame might be required. Permanent installation with the gland module ⚠ Replacement of the IEC AC inlet module and mains wiring for permanent installation must be performed by a qualified electrician and carried out in accordance with local wiring regulations.
- Page 7 The mains supply disconnect device is the installation all pole circuit breaker or the switched fused outlet which must be labelled and must be accessible so as to be readily operable when the appliance is in use. Dimensions 210.00 DT164-W User Guide AP11870 Issue 1...
- Page 8 User Licence Agreement (EULA), a copy of which can be found at: www.allen-heath.com/legal Register your product with Allen & Heath online at: http://www.allen-heath.com/support/register-product/ Check the Allen & Heath website for the latest documentation and software updates ALLEN&HEATH Copyright © 2019 Allen & Heath. All rights reserved DT164-W User Guide AP11870 Issue 1...
