User Manual
Digital to Analog Audio Converter
OTHR-DAC02
·······························································································································
·······························································································································
················································································································
·············································································································
·············································································································
1
1
2
4
4
Advertisement
Table of Contents
Related Manuals for Avantree OTHR-DAC02
Summary of Contents for Avantree OTHR-DAC02
- Page 1 User Manual Digital to Analog Audio Converter OTHR-DAC02 Product Overview ············································································································· Power On ······························································································································· Cable Connection ············································································································· TV Setting ······························································································································· Troubleshooting ················································································································...
-
Page 2: Product Overview

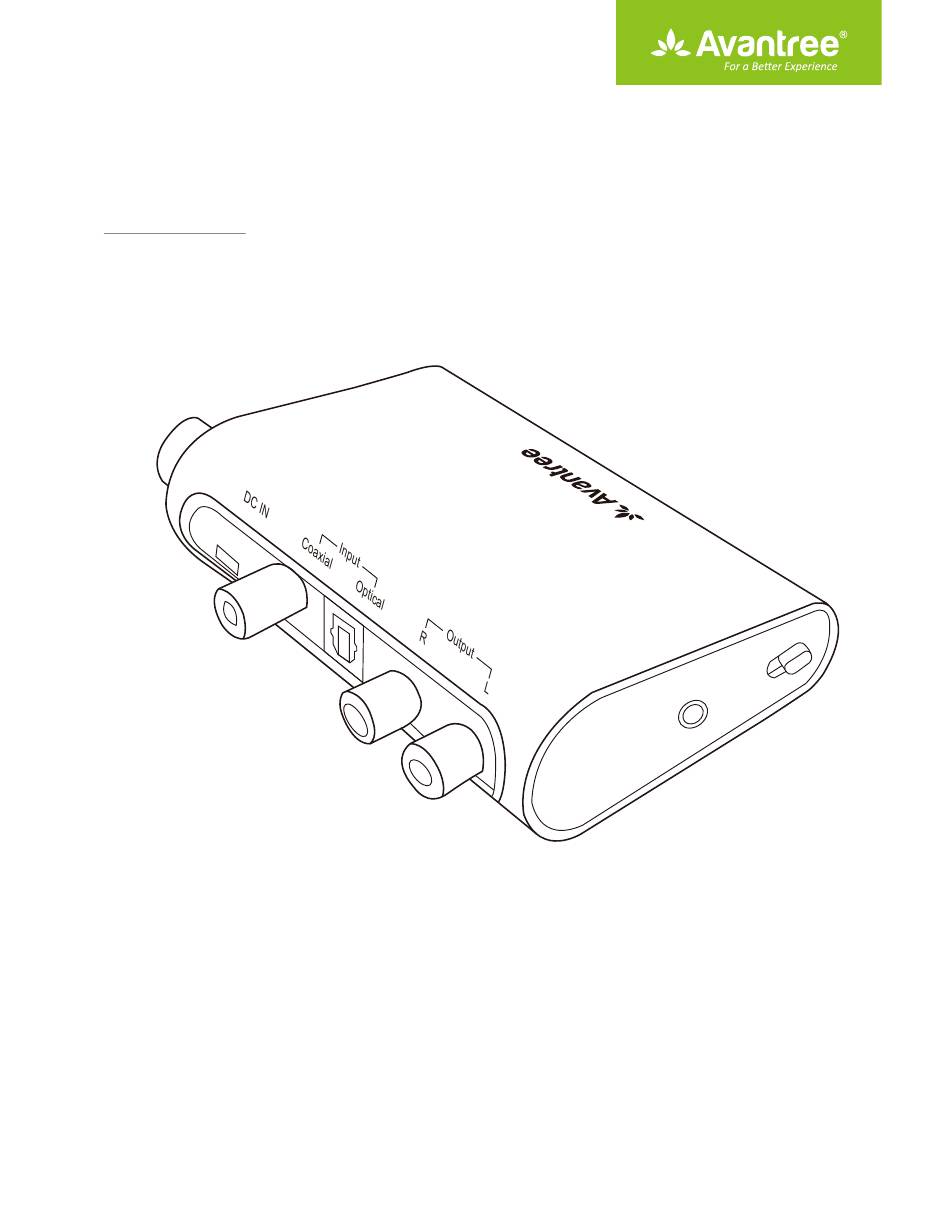

Product Overview ON/OFF Volume Coaxial Optical Coaxial IN Optical IN RCA OUT AUX OUT Power On 1. Connect the input port to a power source (TV USB socket or power adapter) with a micro USB cable. USB cable... -
Page 3: Cable Connection
2. Slide the power switch to the “ON” position - the power indicator should turn green. ON/OFF Volume Cable Connection 1. Connect the Coaxial input port or the Optical input port on the DAC02 to your audio source’s output with the corresponding cable.Use the input selector switch to choose the input type (coaxial or optical) . - Page 4 2. Connect your speaker/headphones to either the RCA or AUX Output port using an RCA/3.5mm audio cable (Not Included). Connect to speaker with RCA port AUDIO AUDIO RCA cable (not included) Connect to headphones with AUX port 3.5 mm audio cable (not included) Notes: The DAC02 can simultaneously support2 active output ports (for example to use a speaker and a headphone at the same time).
-
Page 5: Troubleshooting
TV Setting 1. Change your TV audio format to "PCM" or "LPCM" Settings Dolby Digital Audio Format DTS Neo 2:5 2. Make sure your TV audio OUTPUT setting is changed from TV speaker to "External Speaker" or "External Speaker (optical)". Speakers Internal speaker External speaker... - Page 6 3. Ensure the correct input type is selected. Slide input selection switch on DAC02 to “optical” or”coaxial”. Optical Coaxial AUX Output 4. The power indicator of DAC02 should be ON. If not, check that the DAC02 is connected to a USB power source and slide the power switch to the “ON”position.
