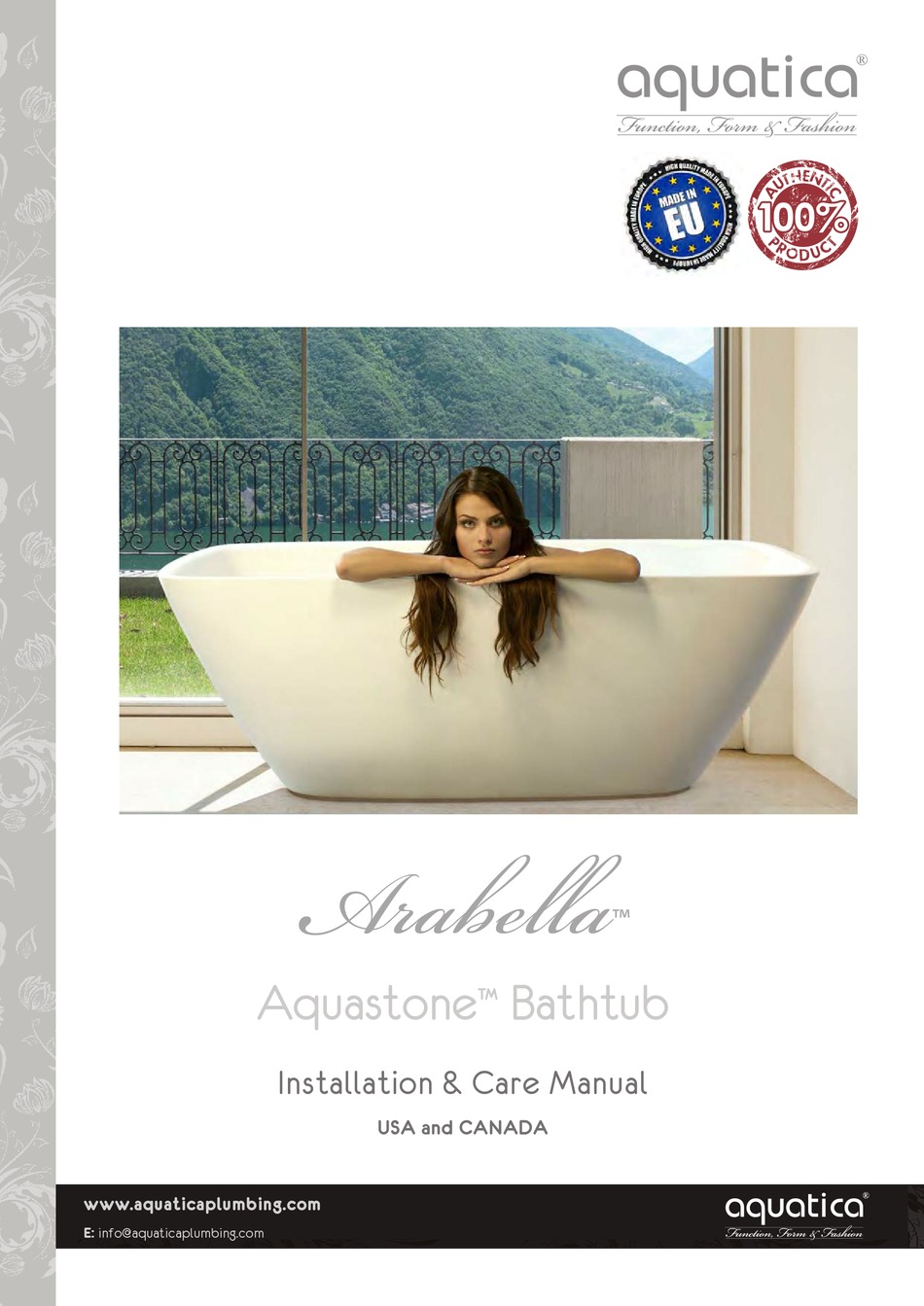

- Page 1 Arabella ™ Aquastone Bathtub ™ Installation & Care Manual USA and CANADA www.aquaticaplumbing.com E: info@aquaticaplumbing.com...
- Page 2 Arabella ™ Aquastone Bathtub ™ Use Home Depot PART “1 1/2” ABS Female Adapter Hub x FIPT or equivalent from another supplier The ABS female adapter features a hub x female NPT thread connection and provides a means for adapting a solvent weld connection to a threaded connection Extension Pipe &...
- Page 3 Arabella ™ Aquastone Bathtub ™ USA & CANADA INSTALL 15.125” 0.393” 1.5 in. ABS DWV Hub 0.393” x FIPT Female Adapter HANDLE WITH CARE DO NOT DROP The ABS female adapter features a hub x female NPT thread connection 24 h and provides a means for adapting a solvent weld connection to a threaded connection...
- Page 4 Arabella ™ Aquastone Bathtub ™ TYPICAL FREESTANDING BATHTUB INSTALLATION PROCEDURE Before you start: • Ensure that the floor is even. • The wate-overflow fitting is supplied with the product, however other accessories like the slip joint and adaptors are not included and must be purchased separately. •...
- Page 5 Arabella ™ Aquastone Bathtub ™ INSTALLATION SEQUENCE continued 1.5” ABS DWV Hub x FIPT Female Adapter* • Picture 4: the water outlet pipe should be connected. • Picture 5: foot leveling lock nuts are adjusted. • Picture 6: silicone is applied to the feet of the bathtub that stands on the floor. •...
- Page 6 Aquatica ® Freestanding Bath Installer ™ (Kit available separately - not included with bathtub) FEATURES " 238mm • 18 Gauge Epoxy coated Metal Deck Flange • Designed to be installed in an 8” joist space " • 32mm Can be installed with Waterproofing Membrane "...
- Page 7 Aquatica ® Freestanding Bath Installer ™ (Kit available separately - not included with bathtub) INSTALLATION INSTRUCTIONS Attaches to Freestanding Bath W/O A. Cut 6-1/2” (16.5 cm) hole into wood sub-floor (use supplied Cutout Template). B. Measure and cut ABS Tailpiece as necessary to ensure a secure connection to P-Trap below.
- Page 8 Arabella ™ - Maintenance Instructions Arabella - Инструкция по уходу ™ PAA Ltd., Unijas street 12A, Riga, Latvia Hooldus juhend Arabella - Installation & Entretien ™ EN 14516 Arabella ™ - Manuale per il corretto mantenimento CA-DA Arabella ™ - Instrucciones para la correcta manutención PAA-BT-SILKS-19/2013 max.
