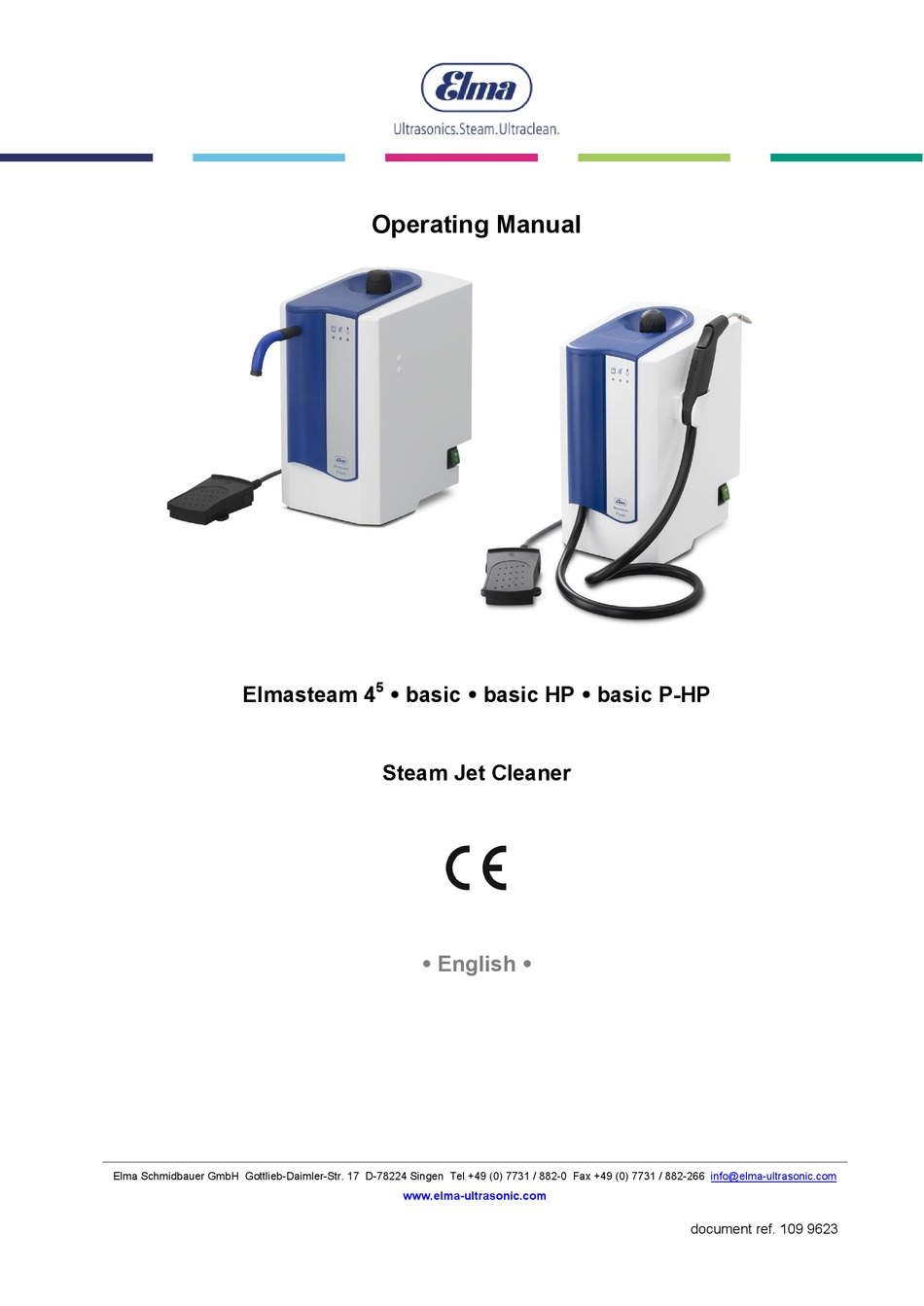

Page 1 Elmasteam 4  basic  basic HP  basic P-HP Steam Jet Cleaner  English  Elma Schmidbauer GmbH Gottlieb-Daimler-Str. 17 D-78224 Singen Tel +49 (0) 7731 / 882-0 Fax +49 (0) 7731 / 882-266 info@elma-ultrasonic.com www.elma-ultrasonic.com document ref. 109 9623...
Page 2: Table Of Contents
Clean sieve in the water connection (only P-HP) ..28 Wear parts ............... 29 7.4.1 O-ring in the pressure tank screw cap ....29 7.4.2 O-ring nozzle ............. 29 7.4.3 Sealing collecting basin ........29 Repair ..............30 BA_Elmasteam_4 _EN_Vers.05.2018 © Elma Schmidbauer GmbH...
Page 3 Prepare machine for shipment ......... 30 Troubleshooting ............31 Decommissioning and disposal ........32 Manufacturer address/contact address ......32 © Elma Schmidbauer GmbH BA_Elmasteam 4 _EN_Vers. 01.2019...
Page 4: General
This symbol warns about the risk of injury from hot surfaces and vapours. This symbol provides a general warning about the risk of injury. This symbol indicates a risk of property damage. This symbol indicates supplementary information. BA_Elmasteam 4 _EN_Vers. 01.2019 © Elma Schmidbauer GmbH...
Page 5: Description Of The Warnings On The Machine
Notice on pressure tank screw cap: • Do not open at pressure above 0 bar • Hot surfaces/Hot vapours • Replace pressure tank screw cap annually (chapter 7.4.1) • Only fill with water © Elma Schmidbauer GmbH BA_Elmasteam 4 _EN_Vers. 01.2019...
Page 6: Important Instructions For Using The Machine
Only operate the machine with water; see additional instructions in chapter 5. Danger from hot Hot temperatures occur during operation, particularly on the rear panel of the machine and at the steam discharge nozzle. surfaces BA_Elmasteam 4 _EN_Vers. 01.2019 © Elma Schmidbauer GmbH...
Page 7 Cleaning result The user is responsible for checking the cleaning result. Elma Schmidbauer GmbH shall not accept any damage and Exclusion of liability warranty claims if: • the product is used for any other than the intended purpose specified in the operating manual •...
Page 8 Temperature during transport: -15 C (+ 5 F) to +60 C (+ 140 C) Humidity and air pressure during storage and transport: 10% - 80% relative humidity; non-condensing Pressure range 500 hPa – 1060 hPa absolute BA_Elmasteam 4 _EN_Vers. 01.2019 © Elma Schmidbauer GmbH...
Page 9: Product Description
Tap water with the usual local water hardness or preferably deionised water. For operation with pump, the conductivity value of the water must be at least 15 µS/cm (for additional information, see chapter 5). © Elma Schmidbauer GmbH BA_Elmasteam 4 _EN_Vers. 01.2019...
Page 10: Technical Data
290 x 320 x 420 W x D x H (mm) Dimensions with fixed nozzle 250 x 320 x 420 W x D x H (mm) Weight (kg) 6,75 8.05 Case material PC/ABS PC/ABS BA_Elmasteam 4 _EN_Vers. 01.2019 © Elma Schmidbauer GmbH...
Page 11: Safety Devices
Pressure tank screw cap: filling opening for manual filling Fixed nozzle Operation indicators Mains power switch (I) = ON / (0) = OFF Reset after refilling and signalisation pressure tank empty (chapter 5.2) Foot switch © Elma Schmidbauer GmbH BA_Elmasteam 4 _EN_Vers. 01.2019...
Page 12: Basic Hp | Basic P-Hp
Pressure tank screw cap: filling opening for manual filling Flexible hand piece Holder for hand piece Operation indicators Mains power switch (I) ON / (0) OFF Reset after refilling and signalisation pressure tank empty (chapter 5.2). Foot switch Steam hose BA_Elmasteam 4 _EN_Vers. 01.2019 © Elma Schmidbauer GmbH...
Page 13 HP rear side Device connector with mains cable Foot switch connector Ball valve with plastic contact protection and mounted service hose (chapter 7.2). Fig. 3.6.2.3. Elmasteam 4 basic P-HP Permanent water connection © Elma Schmidbauer GmbH BA_Elmasteam 4 _EN_Vers. 01.2019...
Page 14: Description Of Led Operation Indicators
Pressure tank empty LED indicator (red) Heater active (heat / reheat) LED indicator (orange) Operating pressure reached (indicator can extinguish during operation) LED indicator (green) Safety valve Fig. 3.8.1 safety valve (A) See chapt. 7.7. BA_Elmasteam 4 _EN_Vers. 01.2019 © Elma Schmidbauer GmbH...
Page 15: First Start-Up
Connect the Elmasteam steam jet cleaner to a suitable grounded to mains power power outlet. The technical details of the rating plate must match supply the available connection conditions, particularly mains voltage and connected load. © Elma Schmidbauer GmbH BA_Elmasteam 4 _EN_Vers. 01.2019...
Page 16: Fixed Nozzle Mounting (Option)
Slide the black protection sleeve in the direction of the arrow over the nut (Fig. 4.2.3.). Fig. 4.2.1 Blanking plug in the delivery condition Fig. 4.2.2 Screwing on hand piece Fig. 4.2.3. Sliding protection sleeve over connection BA_Elmasteam 4 _EN_Vers. 01.2019 © Elma Schmidbauer GmbH...
Page 17: Mounting Of The Wall Bracket (Option)
(B) are still visible. Attach the 2 spacers (D) to the rear side of the machine. Attach the machine using the openings on the rear side (E) in the installed suspension fittings. © Elma Schmidbauer GmbH BA_Elmasteam 4 _EN_Vers. 01.2019...
Page 18: Basic P-Hp
Elmasteam (Fig. 4.4.2.D | 4.4.3.F) 3. Connect the water hose to the water line (Fig. 4.4.3.E.). Pay attention to correct and secure fastening of the water hose. BA_Elmasteam 4 _EN_Vers. 01.2019 © Elma Schmidbauer GmbH...
Page 19 First start-up Fig. 4.4.1. Water hose (included in delivery) Fig. 4.4.2. Machine connection (D) to the water supply (water pipe) Fig. 4.4.3. Connected water hose © Elma Schmidbauer GmbH BA_Elmasteam 4 _EN_Vers. 01.2019...
Page 20: Filling The Machine
2. Switch off the machine at the mains power switch (0) (Reset). switch 3. After complete depressurisation, the machine must still cool Let machine cool down down for approx. 5 minutes to prevent spontaneous steam formation during filling. BA_Elmasteam 4 _EN_Vers. 01.2019 © Elma Schmidbauer GmbH...
Page 21 LED, this signal is reset by the power off and power on. Fig. 5.2.1. Sieve for inserting in the collecting basin Fig. 5.2.2. Sieve inserted in the collecting basin for the filling process © Elma Schmidbauer GmbH BA_Elmasteam 4 _EN_Vers. 01.2019...
Page 22: Automatic Filling With Pump (Basic P-Hp)
When the solenoid valve for the water inlet closes, a natural rebound on the line occurs as is also produced when closing a water tap. This can result in damage in the case of too weakly dimensioned softening cartridges. BA_Elmasteam 4 _EN_Vers. 01.2019 © Elma Schmidbauer GmbH...
Page 23: Handling In Operation
Check the cleaning success at short time intervals steam discharge (visual inspection) and possible adverse effects on sensitive surfaces of the product to be cleaned. Cleaning result The user is responsible for checking the cleaning result. © Elma Schmidbauer GmbH BA_Elmasteam 4 _EN_Vers. 01.2019...
Page 24: Working With The Flexible Hand Piece
The steam output at the fixed nozzle or the hand piece is activated Actuation using foot with the foot switch. switch Depress Activates steam at the fixed nozzle or hand piece. 100% Fig. 6.2.1. Illustration of foot switch BA_Elmasteam 4 _EN_Vers. 01.2019 © Elma Schmidbauer GmbH...
Page 25: Safety / Maintenance / Repair
Never fill decalcifiers or other chemicals in the pressure boiler! CAUTION These can attack and damage the material of the pressure boiler. Also only use water for the decalcification process. Fig.7.2. Rinsing set for connection to the water tap (3/4") © Elma Schmidbauer GmbH BA_Elmasteam 4 _EN_Vers. 01.2019...
Page 26: For Water Containing Lime
Continue this process until no more lime residues are rinsed out of the pressure boiler. In doing so, the water should be able to flow out of the pressure tank quickly*. BA_Elmasteam 4 _EN_Vers. 01.2019 © Elma Schmidbauer GmbH...
Page 27 Remove maintenance hose and clear the opening in the ball valve using a thin object. Fig. 7.2.1.1 Connect water hose to the ball valve Fig. 7.2.1.2 Ball valve opened Fig. 7.2.1.3 Ball valve closed © Elma Schmidbauer GmbH BA_Elmasteam 4 _EN_Vers. 01.2019...
Page 28: For Water Containing Chloride
2. Pull out sieve using pliers 3. Clean sieve under running water 4. Replace sieve 5. Install water connection again correctly; check for secure seating and leak tightness. Fig. 7.2.3. Various views of sieve BA_Elmasteam 4 _EN_Vers. 01.2019 © Elma Schmidbauer GmbH...
Page 29: Wear Parts
Observe service instructions. 105 7949 Article number 7.4.3 Sealing collecting basin Dependent on visible wear ( e.g. Replacement interval cracks). Observe service instructions. 105 7953 Article number Wear parts are excluded from the warranty. © Elma Schmidbauer GmbH BA_Elmasteam 4 _EN_Vers. 01.2019...
Page 30: Repair
• Empty the machine completely before shipping. • Pack the machine securely for transport in a suitable container, if possible in the original carton. BA_Elmasteam 4 _EN_Vers. 01.2019 © Elma Schmidbauer GmbH...
Page 31: Troubleshooting
• Sieve in the water connection • Clean sieve (chapter 7.3). is clogged. • Water pressure too low • ensure higher water pressure © Elma Schmidbauer GmbH BA_Elmasteam 4 _EN_Vers. 01.2019...
Page 32: Decommissioning And Disposal
Disinfect the surfaces. Manufacturer address/contact address Elma Schmidbauer GmbH Gottlieb-Daimler-Str. 17, D-78224 Singen Tel (head office) +49 (0) 7731 / 882-0 Fax (head office) +49 (0) 7731 / 882-266 info@elma-ultrasonic.com www.elma-ultrasonic.com Technical Support support@elma-ultrasonic.com BA_Elmasteam 4 _EN_Vers. 01.2019 © Elma Schmidbauer GmbH...
