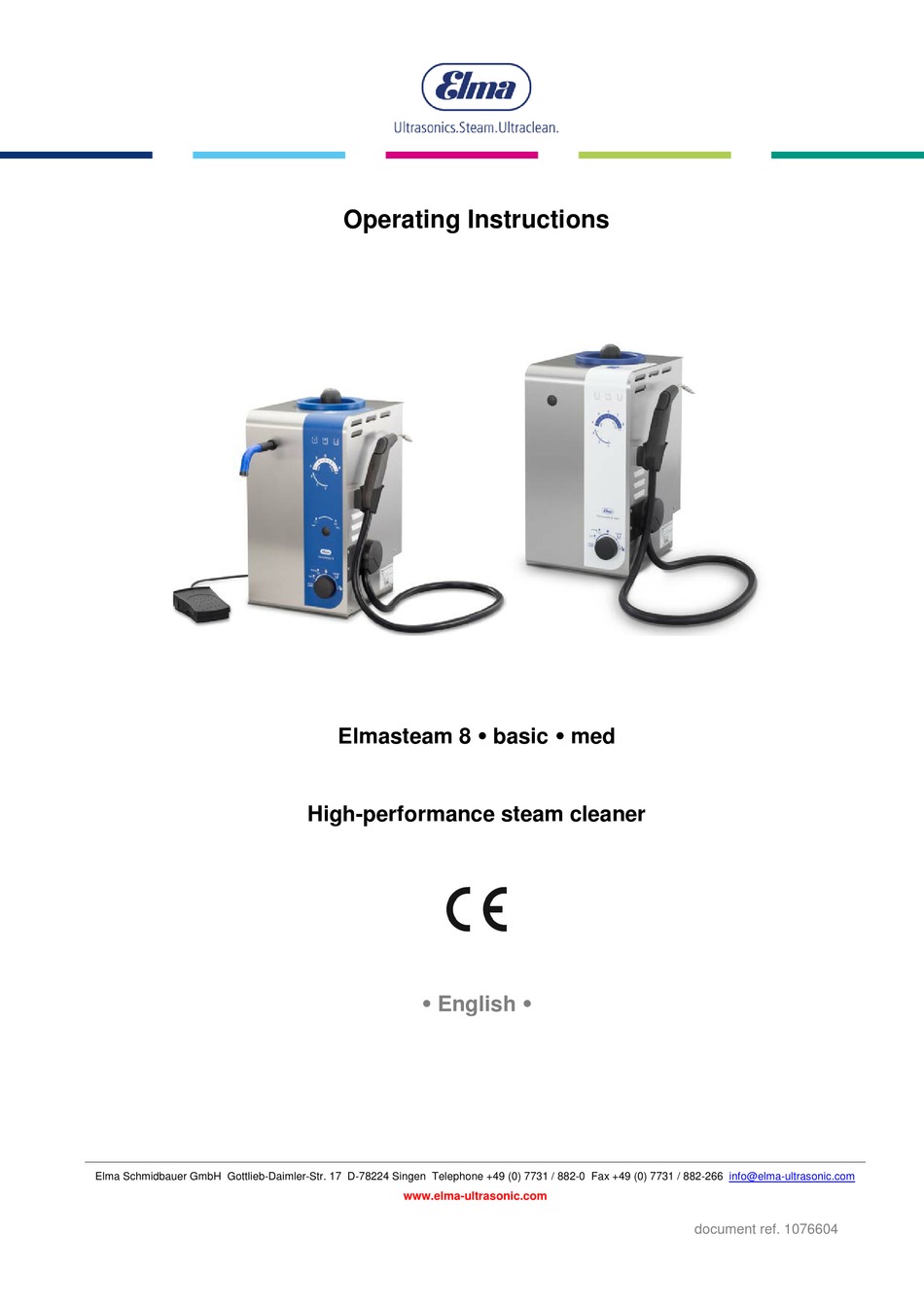

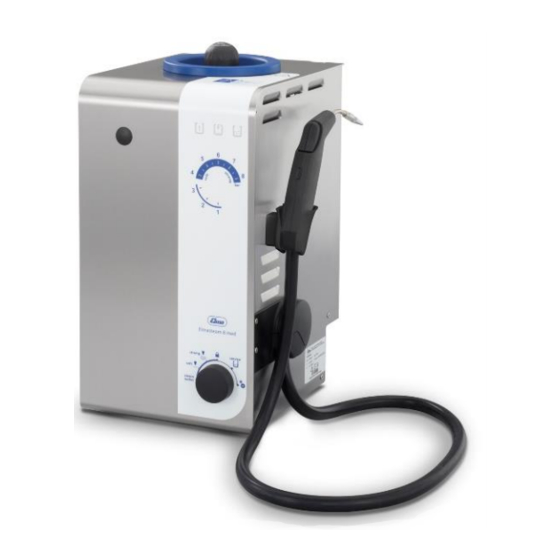

Operating Instructions

Elmasteam 8  basic  med
High-performance steam cleaner
 English 
Elma Schmidbauer GmbH Gottlieb-Daimler-Str. 17 D-78224 Singen Telephone +49 (0) 7731 / 882-0 Fax +49 (0) 7731 / 882-266
info@elma-ultrasonic.com
www.elma-ultrasonic.com
document ref. 1076604

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elmasteam 8 and is the answer not in the manual?

Questions and answers

Edie Caltagarone
May 21, 2025

While descaling, process is stuck on step 6. How do I make it continue the normal process does not make it move on to step 7?

0
1 comments:
Mr. Anderson
May 24, 2025

To resolve the issue of the Elma 8 descaling process being stuck on step 6:

1. Ensure the device is fully depressurised.
2. Open the pressure vessel screw cap.
3. Completely drain the device using the ball valve.
4. After draining, press the rotary knob to continue to step 7.

This should activate step 7 on the gauge. If not, confirm all previous actions were completed correctly.

This answer is automatically generated

0

Related Manuals for Elma Elmasteam 8

Summary of Contents for Elma Elmasteam 8

  • Page 1: Operating Instructions

    Operating Instructions Elmasteam 8  basic  med High-performance steam cleaner  English  Elma Schmidbauer GmbH Gottlieb-Daimler-Str. 17 D-78224 Singen Telephone +49 (0) 7731 / 882-0 Fax +49 (0) 7731 / 882-266 info@elma-ultrasonic.com www.elma-ultrasonic.com document ref. 1076604...

  • Page 2: Table Of Contents

    Important Information for Utilising the Device ..... 8 Information when Utilising as a Medical Device ..12 Product Description ............14 Scope of Supply and Equipment ......14 Elmasteam 8  basic  med ....... 14 3.1.1 3.1.2 Device Overview ..........15 CE Conformity Declaration ........
  • Page 3 Inspect biannually ..........85 8.4.2 Replacement every 3 years ....... 86 Repair Works ............87 Preparing the Device for Shipping ......88 Troubleshooting ............89 Decommissioning and Disposal ........92 10 Manufacturer´s Address / Contact Address ....92 © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 4: General Points

    The operator and/or owner is responsible for the training of the operating personnel. BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 5: How To Use This Guide

    Injuries caused by scalding! • Never direct the jet at people, live electrical equipment or at the device itself! • Never direct the jet at yourself or others in order to clean clothes or footwear. © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...
  • Page 6 6 bar is not exceeded and the minimum water pressure of 1.6 bar not fall below. The connected water pipe system must not exceed the maximum temperature of 20°C. (Applies only to units with optional water pump) BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...
  • Page 7 Always retain the operating instructions in the vicinity of the device. • The operating manual is part of the device. Always transfer the operating instructions with the device when you pass the device on to third parties. © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 8: Important Information For Utilising The Device

    Do not operate the device when a mains supply cable or other important parts of the device are damaged e.g. safety elements or steam nozzles. The plug and coupling must be watertight when an extension cable is utilised. Warning: Unsuitable extension cables can be dangerous. BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...
  • Page 9 Humidity and air pressure during storage and transport: 10% - 80% relative humidity; not condensing Pressure range 500 hPa - 1060 hPa absolute Elma Schmidbauer GmbH will reject all claims for damages or Disclaimer warranty claims when: © Elma Schmidbauer GmbH...
  • Page 10 (Chapter 6.4.1) • Let the appliance cool down • Only close the pressure tank screw cap once the unit has cooled down. BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...
  • Page 11 • It is recommended in such cases to ground the product to be cleaned or, if necessary, the wrist of the user (e.g. with an ESD wrist strap). © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 12: Information When Utilising As A Medical Device

    Important Safety Instructions Information when Utilising as a Medical Device The products of the Elmasteam 8 med Series are intended for Intended Use cleaning hard to reach areas on medical instruments. This cleaning is NOT a replacement for the subsequent cleaning, disinfection or sterilisation in automated standard processes (e.g.
  • Page 13 • For protection of the personnel in the area of instrument cleaning, a suitable suction device and drip device are strongly recommended. (e.g. Elma steam workplace with autonomous suction and Hepa Filter) • Wear a suitable mouth protection © Elma Schmidbauer GmbH...

  • Page 14: Product Description

    Product Description Product Description Scope of Supply and Equipment Elmasteam 8  basic  med 3.1.1 • 1 Basic Device with 5 litres of tank volume • 1 Maintenance Hose • 1 Mains Supply Cable • 1 Filling Sieve •...

  • Page 15: Device Overview

    Product Description 3.1.2 Device Overview ES8-HS ES8MED-HS ES8-HS-FD ES8-HS-FD-DL ES8-HS-DL ES8MED-HS-DL ES8-FD ES8-FD-DL ES8-P-HS ES8-P-HS-FD ES8-P-HS-FD-DL ES8-P-HS-DL ES8-P-HS-DL-ND ES8MED-P-HS-DL ES8-P-FD ES8-P-FD-DL Table 3.1.2 Device Overview © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 16: Ce Conformity Declaration

    The mixing ratio can be adjusted via the rotary knob for wet/dry. Operating Resources Operate the device exclusively with potable water or DI water. The conductivity of the water must be at least 2μS / cm. BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 17: Technical Data

    285 x 350 x 520 W x D x H (mm) Material housing Stainless steel Pressure vessel Stainless steel / aluminium bronze Weight (kg) Approximately 20 * Approximate value for maximum-filled pressure vessel © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 18: Safety Equipment And Devices

    The devices are equipped with all prescribed safety devices and/or equipment such as e.g.: • Safety pressure relief valve • Safety pressure vessel closure for inadmissible opening of the pressure vessel screw on the filler pipe. • Low voltage in handpiece BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 19: Product Description

    Bracket For handpiece (optional) Handpiece (optional) Ventilation Openings (lateral on the housing) Drip Tray (Manual filling) for overflowing water Pressure Vessel Screw Cap: Filling opening for manual filling. Screw to open in an anti-clockwise direction. © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 20: Elements On The Device Rear Side

    Connection for Filling Level Sensor on the Canister (optional) Connection for Foot Switch for the assembled Fixed Nozzle (optional) Connection for Mains Supply Cable On/Off Switch (Mains switch, illuminates as green in operation) BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 21: Operating Displays

    Illuminates or flashes orange to signal descaling for the device Gauge (D) Illuminates or flashes green to indicate the operating pressure, pressure value as well as the step display for the descaling programme Signal Tone Sounds for warnings, signals the urgency © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 22: Saturated Steam Wet/Dry (Optional)

    The intensity of the mixing ratio of the steam function will be regulated by turning the rotary knob (A) as 0-100%. The mixing ratio can also be adjusted during the steam operation. BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 23: Programme Selection

    6-8 bar. The adjusted operating pressure on the gauge illuminates as green until the pressure has been built up/reduced. The pressure achieved illuminates as green on the gauge. © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 24: Handpiece (Optional)

    (Chapter 6.4.6 Settings). 3.6.6 Handpiece (optional) Figure 3.6.6: Handpiece Activated Compressed Air (optional) Activated Steam Activated Steam (both button pressed) Nozzle Pipe Nozzle Pipe or optional Luer-Lock connection (MED) BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 25: Luer-Lock-Connection (Med)

    The medical adapter is included in the scope of delivery for medical devices. Figure 3.6.7: Handpiece with Luer-Lock-Connection (med) Luer-Lock Connection (med) © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 26: Fixed Nozzle (Optional)

    Product Description 3.6.8 Fixed Nozzle (optional) INFORMATION The steam operation with the fixed nozzle will be activated via the foot switch. Figure 3.6.8: Fixed Nozzle Fixed Nozzle BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 27: Commissioning

    Connect the device to a suitable mains supply plug socket. The technical data on the nameplate (Figure 4.1-A) must correspond fully with the available connecting conditions, in particular mains voltage and current connected load. Figure 4.1: Nameplate (on the side of the unit) © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 28: Assembling The Mains Supply Cable

    Assembling the 1. Connect the mains supply cable (Figure 4.1.1-A) to the Mains Supply connector (Figure 4.1.1-B). Cable 2. Plug the other end of the mains supply cable into the prescribed plug socket. BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 29: Assembling The Fixed Nozzle (Option)

    SW 12 mm. 4. Inspect whether the nut is tightened and the fixed nozzle is fixed to the steam outlet downwards. 5. Slide the black protective cover in the arrow direction over the nut (Figure 4.2.3.). © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...
  • Page 30 Commissioning Figure 4.2.1: Union nut with dummy plugs Figure 4.2.2: Screwing on the Fixed Nozzle Figure 4.2.3: Pushing on the black protective cover onto the nut BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 31: Assembling The Foot Switch (Option)

    Manually tighten the plug until it stops turning (Figure 4.2.1.3- Figure 4.2.1.1: Connection for the Foot Switch (Rear panel) Figure 4.2.1.2: Aligning the plug (B) Figure 4.2.1.3: Plug for the Foot Switch (Rear side of the device) © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...
  • Page 32 Commissioning Figure 4.2.1.4: Foot Switch BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 33: Assembling The Compressed Air (Option)

    3. Option: Insert the angled connection screw (4.3.1-C) to connect the compressed air hose directly into the connection. (4.3.1-D). Figure 4.3.1: Blind plug for compressed air connection (A) Figure 4.3.2: Connection for compressed air (without blind plug) © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 34: Assembling The Fixed-Water Connection (Option Device With Pump)

    (Figure 4.4.1.2- 3. Screw on the screwed thread (Figure 4.4. 1-C) of the water hose onto the connection for the water pipe. (Figure 4.4. 3-E) Figure 4.4.1: Water hose with flat seals (scope of delivery) BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...
  • Page 35 Figure 4.4.3: Connected water hose After the INFORMATION assembly Inspect the secure fixing for the fixed-water connection! • Maintain a proper and secure fixing for the water hose. • Inspect the connections (Figure 4.4.3-E + F) for tightness. © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 36: (Option Device With Pump)

    (Figure 4.5.2-H) and turn the front cap (Figure 4.5.3-I) until it locks. Observe the plug direction (Fig 4.5.4-J). 3. Insert the ventilation hose (Figure 4.5.1-C) into the connector (Figure 4.5.2-G). Figure 4.5.1: Canister with accessories BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...
  • Page 37 • Inspect the connections (Figure 4.4.3-E + F) for leak tightness and function. • Ensure when connecting the ventilation hose that the locking lever (Fig 4.5.3-G) points downwards in the direction of the arrow! © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...
  • Page 38 (M) when they have been displaced. INFORMATION Pump Operation • The trouble-free functioning of the pump operation is guaranteed when water hose (K) and cable (L) are set to the same level (M) (Figure 4.5.5) BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 39: Switching On The Device

    1. Switch on (I) the mains supply switch (A). The mains switch Device illuminates as green when the device is switched on. The device will immediately start to heat up when there is sufficient filling level in the pressure vessel (Chapter 5). © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 40: Description Of The Operating Displays

    Scales of values The currently achieved on gauge (D) pressure values illuminate illuminates as on the scale of values as green Example: At 2 bar pressure, the scale of values illuminates as 1-2 BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...
  • Page 41 No or too low water pressure (minimum 1.6 bar) Open the water supply and/or inspect water pressure Filling Level (B) Reserve indicator, device flashes blue and/or pressure vessel is nearly empty. (Device without pump) © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...
  • Page 42 Device with fixed-water supply: Inspect the hose connection Switch off the device: Let it cool down Switch on the device: automatic filling (depressurised devices start with the filling process again) BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...
  • Page 43 Service 3. Command for the device (Descale) (C) to descale flashes orange Warning Tone will Warning Tone sound for 20 seconds sounds after switching on, if the device has not been © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...
  • Page 44 (Descale) (C) the function soft or strong flashes orange Automatic shut-down of the Warning (A) heating (safety shut-down) illuminates as Only after the descaling has been performed is it possible to reactivate the steam operation. BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 45: Device Filling/Emptying

    Top up the device (filling level below minimum.) The display for filling level goes out when the device is completely filled. • The warning (A) goes out as soon as the filling level minimum is achieved © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...
  • Page 46 Service (Descaling) - illuminates/flashes orange Gauge Scale of values illuminates/flashes green INFORMATION Operation Displays, Gauge • Observe the gauge display! The device remains under pressure as long as one segment is illuminated on the value scale on the gauge. BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 47: Requirements For The Water Quality

    Utilise the "Settings" Table (Figure 7.4.6.1) to set the programme number for the DI water or softened water! Settings (Chapter 7.4.6). • When using DI water or softened water, the de- calcification levels 1 + 2 must be executed. © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 48: Manual Filling

    1.2.1 Position the unit with a fixed nozzle over a sink or suitable bucket until no more steam discharges. 1.2.2 Hold down the foot switch for 2 seconds to discharge any residual steam vapour pressure. Steam escapes permanently. To interrupt, press the foot switch again. BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...
  • Page 49 5. The pressure vessel is completely filled when the operating display for the filling level goes out. 6. Remove the sieve. 7. Wipe away any overflowing water. Close the pressure vessel 8. Close the pressure tank screw cap manually (hand tight). screw cap © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...
  • Page 50 Device filling/emptying Figure 6.2.1: Opening/closing the pressure vessel Open the pressure tank screw cap (in arrow direction) Figure 6.2.2: Laying the sieve into the collecting tray Sieve Collection Tray for overflowing water when filling BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 51: Automatic Filling With Pump (Optional)

    INFORMATION • Do not utilise the pump for filling an empty device! • The pump is only suitable for refilling the device! • Intelligent pump control, pump operation during application breaks. © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 52: Filling With Fixed-Water Connection (Option)

    1. Open the on-site water tap for the water supply. 2. The automatic filling or refilling starts approximately 30 seconds after switching on the device. During the operation, the filling will be regulated via the filling level monitoring. BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...
  • Page 53 Switch off the device immediately at the mains switch or unplug the mains supply plug from the mains supply • Let the appliance cool down • Only close the pressure tank screw cap once the unit has cooled down. © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 54: Initial Filling With The Canister

    Switch off the device immediately at the mains switch or unplug the mains supply plug from the mains supply • Let the appliance cool down • Only close the pressure tank screw cap once the unit has cooled down. BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 55: Draining The Device

    • Do not remove the protection against accidental contact. Figure 6.4.1: Ball valve Open Figure 6.4.2: Ball valve Closed © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...
  • Page 56 Secure the maintenance hose in the sink or suitable bucket against detachment. 5. Open the ball valve (Figure 6.4.1). 6. Drain the water from the pressure vessel. 7. Connect to the ball valve after emptying (Figure 6.4.2). BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 57: Handling In Operation

    The device settings at pre-set to the factory settings (Table in Chapter 7.4.6.1 Settings). INFORMATION Switch on the device: After switching on the device, the pressure vessel will be vented. Short hissing noises can be repeated several times. © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...
  • Page 58 (e.g. at 4 bar operating pressure, the scale of values illuminates as 1-4 on the gauge (Figure 7.1). INFORMATION To prevent accidental steam outlet, turn off the device during application breaks to lock (Chapter 7.4.4). BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...
  • Page 59 Control at frequent intervals the cleaning success (visual inspection) as well as any possible adverse effects on sensitive surfaces of the cleaning material. Cleaning Result The user is responsible for the control of the cleaning result. © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 60: Working With The Handpiece

    Steam escapes permanently from the steam nozzle when the steam button is pressed for a minimum of 2 seconds. To interrupt, press the steam button again. Or press or turn the rotary knob to interrupt the steam flow. BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...
  • Page 61 Blow the material to be cleaned with compressed air. Release the compressed air button (B) to finish the compressed air function. 11. Hang the handpiece (C) back into the manual unit holder (D). © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 62: Working With The Fixed Nozzle

    Steam escapes permanently from the steam nozzle when the foot switch is pressed for a minimum of 2 seconds. To interrupt, press the foot switch again. Or press or turn the rotary knob to interrupt the steam flow. BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...
  • Page 63 2. Press the foot switch (7.2.1-B) to start the steam function. 3. Moisten the material to be cleaned with steam from the fixed nozzle (7.2.1-A). 4. Release the foot switch (7.2.2-B) to finish the steam function. © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...
  • Page 64 The foot switch enables you to control the steam vapour/compressed air outlet at the fixed nozzle. Switching Position There are 2 switching positions available: 50% Pressed Activates compressed air to the nozzle. 100% Pressed Activates steam to the nozzle. BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 65: Operation With Saturated Steam Wet/Dry (Option For Device With Pump)

    (A) Regulating the saturated steam proportion for the mixing ratio of the saturated steam function. dry (B) Regulating the dry steam proportion for the mixing ratio of the saturated steam function. © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 66: Programme Selection

    • soft • strong • lock • service (descaling) • Setting are described in the following chapters. The device is pre-set to the factory settings (Table Chapter 7.4.6.1 Settings). Figure 7.4: Rotary knob, programme selection BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 67: Selecting The Steam Outlet

    2. Press the rotary knob to confirm. 3. Discharge the residual steam pressure on the fixed nozzle or handpiece. 4. Please observe the Chapter 7.1 Working with the handpiece or the Chapter 7.2 Working with the fixed nozzle. © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 68: Selecting Soft

    2. Press the rotary knob to confirm. 3. Utilise the steam via the fixed nozzle or the handpiece. 4. Please observe the Chapter 7.1 Working with the handpiece or the Chapter 7.2 Working with the fixed nozzle. BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 69: Selecting Strong

    2. Press the rotary knob to confirm. 3. Utilise the steam via the fixed nozzle or the handpiece. 4. Please observe the Chapter 7.1 Working with the handpiece or the Chapter 7.2 Working with the fixed nozzle. © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 70: Selecting Lock

    The steam application is ready for use once you have selected the soft, strong or steam outlet programmes. After the interval time to eco, the pressure reduces to 3 bar (Chapter 7.4.7 Settings). BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 71: Service (Descaling)

    • The residual water may be hot! • Wear heat resistant gloves when handling the hose • Only utilise pure citric acid as 3% to 1.5 litres of potable water or DI water for descaling. © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...
  • Page 72 Figure 7.4.5.1: Rotary knob programme selection, service Utilise the programme service when you want to descale the device. You require the flushing set and the maintenance hose (provided accessories) for descaling. Figure 7.4.5.2: Gauge display descaling 1-8 BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...
  • Page 73 The descaling step 4 on the gauge flashes green. The device heats up (warm-up time).  The descaling step 5 on the gauge illuminates as green (warm up time is completed). Reaction time! Duration, approximately 2 hours. © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...
  • Page 74 If the water conductivity is < 2μS / cm, then add 1 levelled-off teaspoon of table salt with the initial commissioning and after descaling. Dissolve the salt in 1 glass of water and fill it via the filling opening into the device. BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 75: Settings

    Use the programme for settings to amend the settings. Utilise the table (Chapter 7.4.6.1 Settings) for this. Turning the rotary knob via settings or steam outlet away, then the device will switch to the lock function. © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...
  • Page 76 6. Turn the rotary knob to amend the value. The possible setting is displayed on the pressure gauge by the flashing values. If you exceed or are under the possible setting range, then the values will not flash any more. Turn back BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...
  • Page 77 * Determine hardness, refer to the information data sheet "Water Quality" * Determine chlorine content, refer to the data sheet "Water Quality" 7.4.6.1 Settings INFORMATION The factory setting values are highlighted in grey in the Table 7.4.6.1. © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...
  • Page 78 Handling in Operation Table 7.4.6.1 Settings BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 79: Safety / Maintenance / Repair Works

    • The steam hose (handpiece) • O-ring of the pressure vessel screw cap (Chapter 8.3.1) • O-ring of the nozzle (Chapter 8.3.2) • Additionally inspect the optional water hose for correct securing (fixed-water supply or canister). © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 80: Flush The Pressure Vessel

    Risk of injury! Injuries can be caused by chemical burns on the skin! • Never fill chemicals into the device! • Only utilise potable water or DI water (1.5 l with 3% pure citric acid) for descaling! BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...
  • Page 81 Position the device in such a way that the maintenance hose hangs into a sink or bucket large enough for this operation and that the ball valve can be operated. © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...
  • Page 82 Insert the flushing hose in the hose sleeving or directly in the ball valve. Figure 8.2.1: Connecting the maintenance hose to the ball valve Figure 8.2.2: Ball valve Open Figure 8.2.3: Ball valve Closed BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 83: Cleaning The Sieve In The Water Connection

    2. Pull out the sieve with pliers 3. Clean the filter under running water 4. Replace the sieve again 5. Correctly reassemble the water connection and inspect it secure fit and leak tightness. Figure 8.3.1: Sieve from different views © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 84: Wear And Tear Parts

    Depending on visible signs of Replacement Interval wear (for example, cracks). We recommend that the hose is completely replaced with the manual unit. Item Number Observe the service instructions. 106 6873 Hose 106 6835 Manual unit with hose BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 85: Safety Valve

    7. Remove the cover (Fig 8.4.1.2-B). 8. Tighten the cone by hand clockwise until it stops. 9. Securely screw the cover (Figure 8.4.1.1-A). Figure 8.4.1.1: Screwing the safety Figure 8.4.1.2: Removing the valve, opening the cover safety valve cover © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 86: Replacement Every 3 Years

    4. Screw on a new safety valve with seal (Figure 8.4.1.1). 5. Securely screw on the cover. 6. Switch on the device and let it heat up and then inspect the screws and glands for leaks (no steam can leak out). BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 87: Repair Works

    If the device needs to be returned to a service centre or to the manufacturer, then it must be ensured that the device has been emptied and is transported in a secure package. © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 88: Preparing The Device For Shipping

    Remove the connected accessory: Connections for canister, fixed-water connection, foot switch, compressed air, mains supply cable • Disinfect the surfaces. • Pack the unit securely for transport in a suitable container, when possible in the original box. BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...

  • Page 89: Troubleshooting

    30 seconds after Pump is not pumping switching on • Filling level too low Filling level flashes • Fill the device manually with at least 2 litres of water Warning flashes (Chapter 6.2) © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...
  • Page 90 Heating does not heat up - specified by the scale of values on the manufacturer (Chapter 4) gauge does not flash even though steam operation soft or strong is activated BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...
  • Page 91 Inspect the compressed air supply • • No steam discharge Solenoid valve defective Send the device to the possible with actuation service centre Device is ready for operation Steam mode soft or strong is activated © Elma Schmidbauer GmbH BA_Elmasteam_8_Vers.07.2016...

  • Page 92: Decommissioning And Disposal

    Disinfect the surfaces. Manufacturer´s Address / Contact Address Elma Schmidbauer GmbH Gottlieb-Daimler-Str. 17, D-78224 Singen Telephone Head Office +49 (0) 7731 / 882-0 Fax Head Office +49 (0) 7731 / 882-266 info@elma-ultrasonic.com www.elma-ultrasonic.com Technical Support support@elma-ultrasonic.com BA_Elmasteam_8_Vers.07.2016 © Elma Schmidbauer GmbH...
