Pet Mate Cat Mate 310 Quick Start Manual

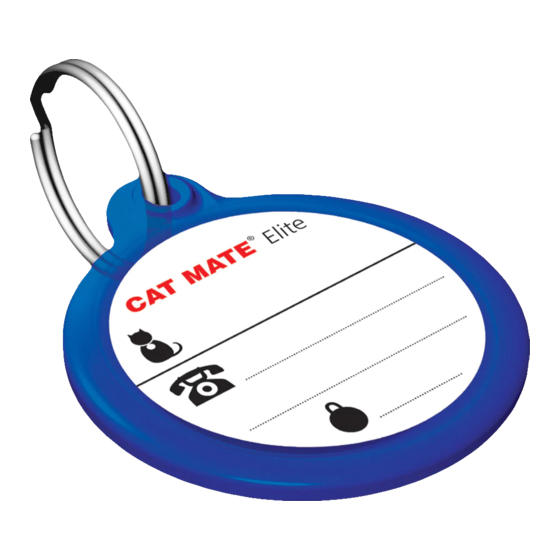

CAT MATE
®
ELECTRONIC I.D. DISC
For use with:
Cat Mate Microchip Cat Flap (Ref. 360)
Cat Mate Elite I.D. Disc Cat Flap with Timer Control (Ref. 305)
Cat Mate Elite I.D. Disc Cat Flap (Ref. 306)
Cat Mate Elite Microchip Cat Flap with Timer Control (Ref. 355)
Cat Mate Elite Microchip Cat Flap (Ref. 356)
D Nur zur Verwendung mit:
Cat Mate Mikrochip Katzenklappe (Ref. 360)
Cat Mate Elite I.D.-Marke Katzenklappe mit Zeitschaltuhr Funktion (Ref. 305)
Cat Mate Elite I.D.-Marke Katzenklappe (Ref. 306)
Cat Mate Elite Mikrochip Katzenklappe mit Zeitschaltuhr Funktion (Ref. 355)
Cat Mate Elite Mikrochip Katzenklappe (Ref. 356)
F Pour utilisation avec:
Chatière micropuce Cat Mate (réf. 360)
Chatière disque d'identification avec fonction de temporisation Cat Mate Elite
(réf. 305)
Chatière disque d'identification Cat Mate Elite (réf. 306)
Chatière micropuce avec fonction de temporisation Cat Mate Elite (réf. 355)
Chatière micropuce Cat Mate Elite (réf. 356)
E
Para uso con:
Gatera de Microchip de Cat Mate (Ref. 360)
Gatera con Disco de I.D. con Control de Tiempo de Cat Mate Elite (Ref. 305)
Gatera con Disco de Cat Mate Elite (Ref. 306)
Gatera de Microchip con Control de Tiempo de Cat Mate Elite (Ref. 355)
Gatera de Microchip de Cat Mate Elite (Ref. 356)
NL Voor gebruik met:
Cat Mate Microchip Kattendeur (Ref. 360)
Cat Mate Elite I.D. Disc Kattendeur mit Tijdklok Functionering (Ref. 305)
Cat Mate Elite I.D. Disc Kattendeur (Ref. 306)
Cat Mate Elite Microchip Kattendeur mit Tijdklok Functionering (Ref. 355)
Cat Mate Elite Microchip Kattendeur (Ref. 356)
International Patents Pending. Registered Design.
Designed and manufactured by Pet Mate Ltd. England.
Assembled Worldwide.
CAT MATE
ELECTRONIC I.D. DISC
D
1
F
E
NL
2 The I.D. Disc should be attached to your cat's collar
(NOT from a ring attached to the collar) so that it is as
high as possible and parallel to your cat flap. We
recommend the use of a fabric collar without large
metal attachments (other name discs etc.).
Program the new I.D. Disc to your specific Cat Mate
product model as follows:
3
Cat Mate Microchip Cat Flap (Ref. 360)
1. Partially remove the battery cover (A, Fig. 1) to
reveal the 'PROGRAM' button (B).
Fig. 1
2. Press and hold the 'PROGRAM' button for 5
seconds until the LED (C) illuminates. Wait a
minimum of 10 seconds.
3. Place the front of the I.D. Disc in the tunnel opening.
4. When programmed, the LED will flash.
5. Press the 'PROGRAM' button to save the setting.
© PET MATE Ltd · Lyon Road · Hersham · Surrey · KT12 3PU · England
Ref. 310
31001/1216
®
ELEKTRONISCHE I.D.-MARKE
DISQUE D'IDENTIFICATION
ÉLECTRONIQUE
DISCO DE I.D. ELECTRÓNICA
ELEKTRONISCHE I.D. DISC
A B
C
www.pet-mate.com
CAT MATE
ELECTRONIC I.D. DISC
ELEKTRONISCHE I.D.-MARKE
DISQUE D'IDENTIFICATION ÉLECTRONIQUE
DISCO DE I.D. ELECTRÓNICA
ELEKTRONISCHE I.D. DISC
Ref. 310
Cat Mate Elite I.D. Disc Cat Flap with Timer Control (Ref. 305) and Microchip
Cat Flap with Timer Control (Ref. 355) - current model
If your cat loses its I.D. Disc, you will need to re-program its replacement as follows:
1. Press the 'PROG' button (D, Fig. 2) for 5 seconds, the next unused Cat number
will flash and there will be lines moving around the first 'TWO ZEROS'.
Fig. 2
D
2. Press the '+' button (E) to select the appropriate Cat number you wish to
reprogram.
3. Place the front of the I.D. Disc in the tunnel opening.
4. When programmed, the 'TWO ZEROS' will disappear and 'Pr' will flash.
5. Press the 'PROG' button to save the setting.
Cat Mate Elite I.D. Disc Cat Flap with Timer Control (Ref. 305) and Microchip
Cat Flap with Timer Control (Ref. 355) - old model
If your cat loses its I.D. Disc, you will need to re-program its replacement as follows:
1. Press the 'PROGRAM' button on the circuit board under the battery cover
(F, Fig. 3), for 5 seconds. On the LCD 'CAT 1' and the 'NUMBER 1' will flash
- there will be lines moving around 'TWO ZEROS'.
Fig. 3
2. Press the '+' button to select the appropriate I.D. Disc number.
3. Move the I.D. Disc close to the flap and the rotating 'TWO ZEROS' will disappear.
4. Press 'SET' button to save the setting.
+44 (0)1932 700 001 · USA (936) 760 4333
N.America only: Ani Mate · 104A Longview Drive · Conroe · Texas 77301
®
