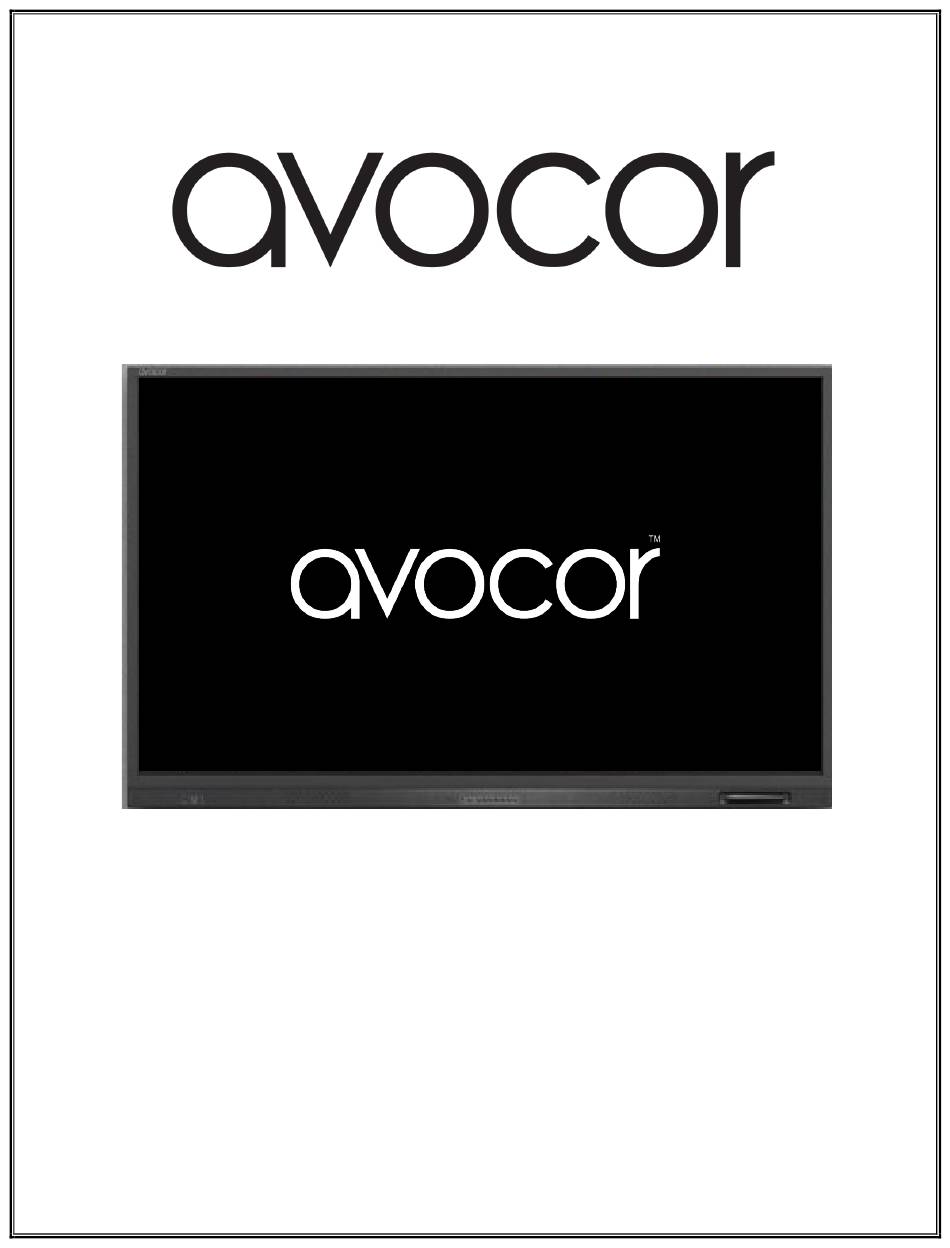

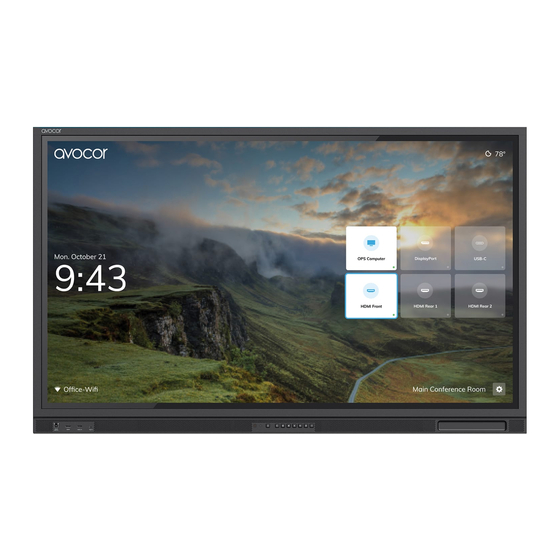

- Page 1 AVE-5530 User Manual...
-
Page 2: Table Of Contents
AVE-5530 User Manual | 1 TABLE OF CONTENTS Compliance Information ..........................3 Declaration of Conformity ..........................3 FCC Part 15 ......................Error! Bookmark not defined. Caution ................................3 Industry Canada (ICES-003) ..........................3 Product Disposal ............................... 3 Disposal of Old Electrical and Electronic Equipment ..................4 Introduction .............................. - Page 3 AVE-5530 User Manual | 2 Peripheral Connections ........................... 20 Front Ports ..............................20 Rear-Side Ports............................21 Lower Ports ..............................22 OPS Module ..............................23 OPS Installation Step-by-Step ........................23 Remote Control ............................... 25 Remote Control Batteries ........................... 26 Operation ..............................27 The Home Screen ............................
-
Page 4: Compliance Information
AVE-5530 User Manual | 3 COMPLIANCE INFORMATION Declaration of Conformity Avocor hereby declares that the following Product Model Number: AVE-5530 conforms to the provisions of the following regulations: FCC: • FCC CFR Title 47 Part 15 Subpart B Class A, CISPR22 ANSI C63.4... -
Page 5: Disposal Of Old Electrical And Electronic Equipment
AVE-5530 User Manual | 4 Disposal of Old Electrical and Electronic Equipment Applicable throughout the European Union and other European countries with separate collection programs This symbol, found on your product or on its packaging, indicates that this product should not be treated as household waste when you wish to dispose of it. -
Page 6: Introduction
4K@60hz resolution, up to 20 simultaneous touch points, multiple source inputs for your computers and peripheral devices, and our new intuitive UiQ. Our AVE-5530 display follows our agnostic approach to interactive displays: they are compatible with a wide range of hardware and software, making it a great addition to any interactive meeting-room solution. -
Page 7: Graphic Conventions
AVE-5530 User Manual | 6 Graphic Conventions The following symbols appear throughout this manual to emphasize key points. Keep these in mind not only to benefit from their advice, but also to avoid problems with the display or personal injury. -
Page 8: What's In The Box
AVE-5530 User Manual | 7 WHAT'S IN THE BOX? Avocor AVE-5530, 55" Interactive Display • Quick Start Guide with QR code • Remote Control & Batteries • (2) Touch Stylus 3mm • Power Cables • o US Cable 2m o UK Cable 2m... -
Page 9: Specifications
Supported Colors 30 Bit Deep Color Display Orientation Landscape Touch System Touch Up to 20 Point Avocor Intelligent Touch – Supports 1 fine tip stylus Glass 2mm Bonded, Anti-Glare, Anti-Fingerprint Glass Supported OS Windows 8 & 10; Mac OSX; Linux Connectivity Guest Inputs 1x HDMI 2.0, 1x USB-B Touch 3.0, 1x USB-A 3.0 Hub, 1x Type C... -
Page 10: The Display, At A Glance
AVE-5530 User Manual | 9 THE DISPLAY, AT A GLANCE The following diagrams depict the front, side, and bottom panels of the display. The physical interface and connections are labeled, and then described in the tables that follow. Front Panel HDMI 2.0, USB Type C, Touch USB 3.0, USB 3.0 (Accessory Port) -
Page 11: Back Panel
AVE-5530 User Manual | 10 Back Panel Main Power Switch A/C Rocker Switch; toggles all power to the display. Power Cord Socket Three-pin A/C Jack. OPS Slot TX25A-80P standard OPS input; compatible with non-standard OPS-C structure. Rear Source Inputs DisplayPort, HDMI 1, HDMI 2, USB Touch 3.0, USB 2.0 (Accessory), Audio Line Out,... -
Page 12: Front Panel Interface
AVE-5530 User Manual | 11 Front Panel Interface [FPO] LED Two-color Indicates the power status of the display. indicator Light inlet Ambient visible light detector. window Turn the display on/off. Power Switch sources. Source Open UiQ Settings. Menu Access the Home screen. -
Page 13: Front Panel Guest Inputs
AVE-5530 User Manual | 12 Front Panel Guest Inputs USB Touch USB Touch 3.0 Guest Input. USB 2.0 USB Accessory Input. HDMI HDMI Guest Input. Type C USB Type C Guest Input for video and Touch... -
Page 14: Rear Source Inputs
AVE-5530 User Manual | 13 Rear Source Inputs DP1.2 & HDCP2.2. HDMI1 HDMI2.0B & HDCP2.2. HDMI2 HDMI2.0B & HDCP2.2. USB Touch USB 3.0 Type B for touch control. USB 2.0 USB 2.0 accessory port. Line out 3.5mm Analog audio output (no mic). -
Page 15: Bottom-Rear Panel Inputs
AVE-5530 User Manual | 14 Bottom-Rear Panel Inputs Connect external and digital powered SPDIF Out Sony/Phillips Digital Interface speakers, or an audio receiver or amplifier. For interfacing with a PC or RS232 DB9 Female Input automation/control system. Ethernet In RJ45 Input Lan In, 10/100Mbps. -
Page 16: Installation
AVE-5530 User Manual | 15 INSTALLATION Please read the following precautions carefully before installing your new Avocor AVE-5530 display. Failure to comply may result in damage to the display and equipment and may result in personal injury or death. •... -
Page 17: Ambient Considerations
AVE-5530 User Manual | 16 Ambient Considerations Environmental and ambient factors play a considerable role in determining your viewing experience and the functional operation of the display. Make sure to follow these guidelines carefully to get the most out of your display. -
Page 18: Mounting The Display
AVE-5530 User Manual | 17 Mounting the Display The three primary types of mounting solutions are Stationary Stands, Rolling Carts, and Wall Mounts. This chapter will examine each type and how they might fit into your installation. NOTE Leave mounting to the installation specialists. -
Page 19: Rolling Cart
AVE-5530 User Manual | 18 ROLLING CART As the most mobile of mounting solutions, the rolling cart is perfect for those who want a flexible setup that can be taken to different rooms. WARNING At least two people are needed to move a rolling cart with a mounted display. -
Page 20: Wall Mount
AVE-5530 User Manual | 19 WALL MOUNT Though immobile and possibly the most time-consuming install, wall mounts benefit from the fact that they take up much less space than their counterparts. This is a great option for those who want a permanent sleek-looking setup, especially if extra time is taken to route any cabling through the wall. -
Page 21: Peripheral Connections
The below diagrams demonstrate how to connect your peripherals for the best possible results. FRONT PORTS The front ports on your AVE-5530 display are great for a plug-and-play session for up to two devices and an accompanying USB 2.0 compatible accessory. The Type C port will support both touch and video. If... -
Page 22: Rear-Side Ports
AVE-5530 User Manual | 21 REAR-SIDE PORTS The preferred method to properly connect a device to the panel is to connect your device to one of the video inputs via HDMI or DisplayPort and connect your USB-A—USB-A cable to your device and the... -
Page 23: Lower Ports
AVE-5530 User Manual | 22 LOWER PORTS This is where you can integrate your AVE-5530 with your rooms audio, network, and control/automation systems. Use a straight through DB9 connector to properly connect your control system to the RS-232 port on the display. -
Page 24: Ops Module
OPS INSTALLATION STEP-BY-STEP I. Turn off the main power switch on the display. II. Remove the OPS slot shield on the display input panel II. Install the Avocor OPS computer by carefully sliding it into the OPS slot as pictured below. - Page 25 AVE-5530 User Manual | 24 If installing an Avocor OPS module, the "OPS ===>" imprint should be upside down and facing the back panel of the display. If there is no imprint, then the small square fan vent should be facing the same direction as the back panel.
-
Page 26: Remote Control
AVE-5530 User Manual | 25 Remote Control POWER Power on/off the display Navigate to the OPS input Blanks the display. Press again to restore. BLANK FREEZE Freezes the display. Press again to restore. OK/Direction keys Menu navigation and selection Go back to the previous menu... -
Page 27: Remote Control Batteries
AVE-5530 User Manual | 26 REMOTE CONTROL BATTERIES To install batteries in the remote control: 1. Press down the tab on the cover plate and pull the cover plate up. 2. Insert the included batteries. Ensuring that the polarities correctly match the (+) and (-) markings inside the battery compartment. -
Page 28: Operation
The Home Screen The Home Screen is the default landing page and general hub for the AVE-5530's touch interface. Here, you can configure the display's settings via the OSD and select an input source without having to use the remote... -
Page 29: The Uiq
AVE-5530 User Manual | 28 The UiQ To access the UiQ, touch the gear icon on the home screen, or press the Menu key on your remote control. You can access the various menu settings by touching the icon squares in this interface (see the image above). - Page 30 AVE-5530 User Manual | 29 Avocor Logo Toggles the presence of the Avocor logo on the Home Screen. Name Changes the name assigned to the display, which is visible on the Home Screen. Wallpaper Set a default or custom User Images for the Home Screen. A Slideshow option is available.
-
Page 31: Display Settings Tips
Energy Saving This submenu provides options for helping you maximize power efficiency for your AVE-5530. Here you can… • Schedule an Auto Power On* cycle for every day of the week. - Page 32 M, T, W, T, F tiles, then your display will automatically power on at 8:30 AM, Monday thru Friday, while skipping Saturday and Sunday, every week. Utilizing these settings is highly recommended if you expect heavy use and long hours for your AVE-5530 display, as this will help maintain its longevity.
-
Page 33: Network Settings Tips
AVE-5530 User Manual | 32 Status Shows Network and LAN status (Cable Connected, Not Connected). Set a Static IP or DHCP. Wi-Fi Configure Wi-Fi settings (additional USB device required); locate the MAC Address. Wake On LAN Toggle Wake On LAN. - Page 34 AVE-5530 User Manual | 33 Language Set the language for the display's user interface.
- Page 35 AVE-5530 User Manual | 34 Timezone Set Timezone based on city and region. Auto Date & Time Toggle Auto Date & Time On (internet connection required) or Off. Set Date Manually set the date. Set Time Manually set the time.
- Page 36 AVE-5530 User Manual | 35 Favorite Source Set the favorite source (Home Screen, OPS Computer, HDMI Front, HDMI 1, HDMI 2, DisplayPort, Type C). Starting Source Set the default source the display will show automatically upon powering on the display (Home Screen, OPS Computer, HDMI Front, HDMI 1, HDMI 2, DisplayPort, Type C).
- Page 37 AVE-5530 User Manual | 36 Require Passkey Toggle Require Passkey on/off. Set Passkey Set a custom Passkey to access display settings. Lock Front Keys Locks the buttons on the front panel of the display.
- Page 38 AVE-5530 User Manual | 37 Name The full name and model of the display. System Version The active system version number. Firmware Version The active firmware version number. Serial Number The unique serial number for the display. Model Number The model number of the display.
-
Page 39: Update System - Firmware
2. USB Update This is a more manual process that requires you to • download the correct file from Avocor.com, and upload the file via the USB Service Port on the display. USB Update -... -
Page 40: External Control
The display must be connected to the network and must have a valid IP address. Configure your control system to run through TCP port 4884. Command and Response Format Any commands sent from an automation/control system or PC to an Avocor display must have the following format: [STX] [IDT] [TYPE] [CMD] [VALUE]/[REPLY] [ETX] [CR] [STX] indicates the start of the command data (always 07). -
Page 41: Serial Command List
AVE-5530 User Manual | 40 Serial Command List Main Item Control Item Type Value Reply Content (ASCII) Power 50 4F 57 Power Control IPC Control 49 50 43 HDMI 1 HDMI 2 Input Source Selection 4D 49 4E Source HDMI 3 (Front) - Page 42 AVE-5530 User Manual | 41 00~64 00~64 Blue Gain 55 53 42 00~64 00~64 Red Offset 55 4F 52 Color Gain/Offset Picture 00~64 00~64 Green Offset 55 4F 47 Settings 00~64 00~64 Blue Offset 55 4F 42 Sharpness 00~64 00~64...
- Page 43 AVE-5530 User Manual | 42 FREEZE Key MUTE Key Remote Control AUTO Key 52 43 55 VOLUME+ Key VOLUME- Key Reset all Factory Reset 41 4C 4C Reset all but communication Read Serial Number 53 45 52 bytes Display Information...
- Page 44 AVE-5530 User Manual | 43 EcoMode Set Never_Sleep 57 46 53 00~63 00~63 Set Real time Year 52 54 59 01~0C 01~0C Set Real time Month 52 54 4D RTC (2 bytes) 01~1F 01~1F Set Real time Day 52 54 44...
- Page 45 AVE-5530 User Manual | 44 Network Enable 4E 57 45 Ethernet Setup MAC ID Query 00~05 00~FF Querying MAC ID #0~#5 4D 41 43...
-
Page 46: Warranty Information
This warranty does not cover installation, signal reception problems, potential incompatibility with peripheral devices, or acts of nature. Avocor does not warrant nor shall it be liable for Products which have been subject to abuse, including, but not limited to, improper voltage, accident, misuse, negligence, lack of reasonable... - Page 47 If freight was arranged by Avocor, and patent or obvious physical damage to the packaging is not detected but found on the product or product accessories upon inspecting the product, the customer must report the damages to Avocor within 10 calendar days after the delivery date to receive warranty services.
- Page 48 GUIDELINES. CONTACT SUPPORT FOR FURTHER DETAILS. Defective on Arrival (DOA): If the Product is determined by Avocor to be defective within the first 90 days of the initial purchase by the Customer, it is deemed Defective on Arrival (DOA). In the case of a DOA, the Customer will be provided a brand-new equivalent Product.
