Summary of Contents for Bush NE-2151

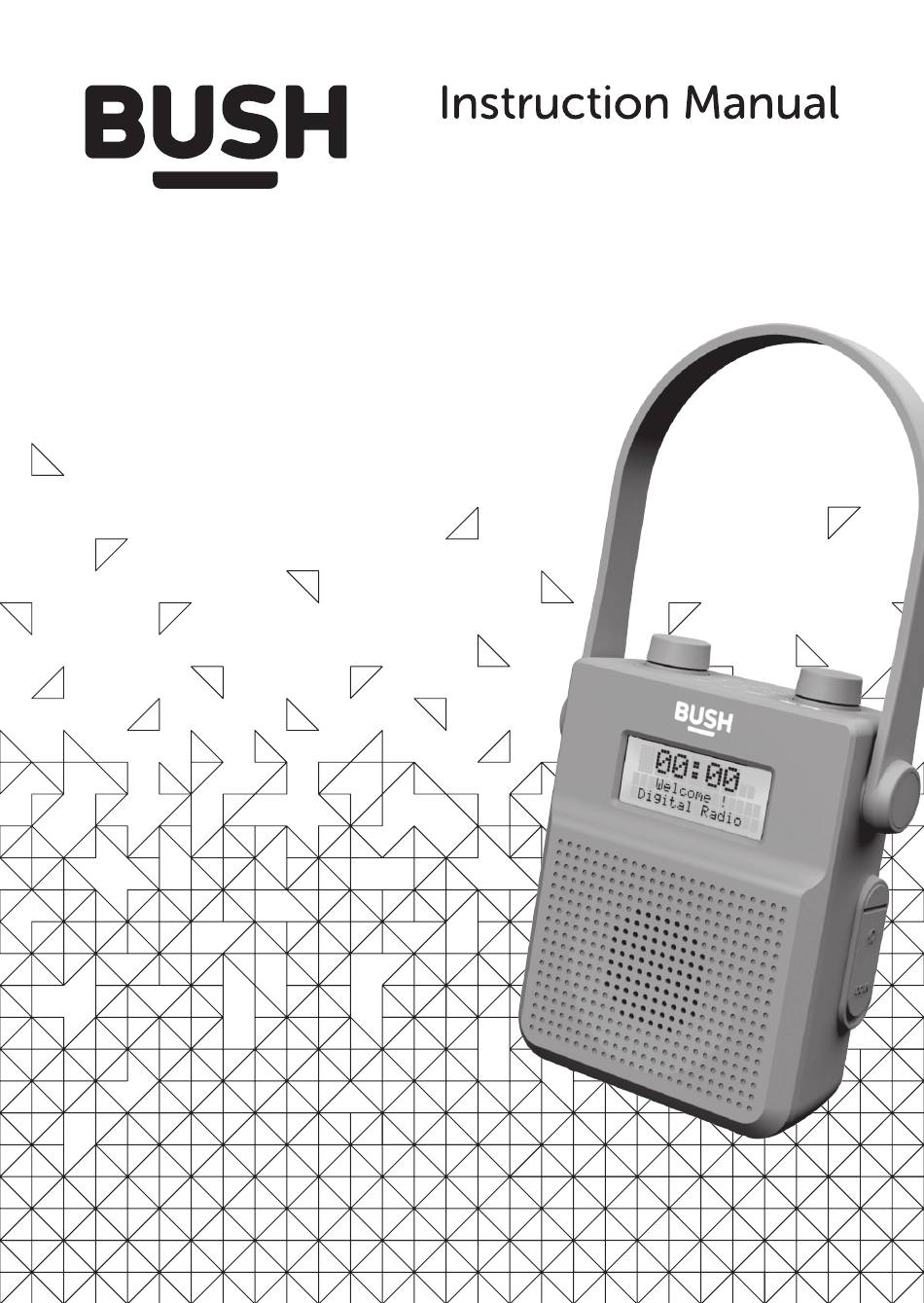

- Page 1 NE-2151...
- Page 2 You’ll soon be enjoying your new DAB/FM Digital Radio. It all begins here, with your instructions. Don’t worry, there’s nothing too technical coming up. Just simple, step-by-step guidance to get you up and running quickly. Sound good? Then let’s get started. Help and Guidance We’re here to help you get the most from your DAB/FM Digital Radio.
-
Page 3: Table Of Contents
Contents Safety information Safety information Getting to know your DAB/FM Digital Radio Ready? Let’s begin Product Overview Power Source Using your DAB/FM Digital Radio Basic Operation DAB Operation FM Operation ® Bluetooth Operation System setting Setting the Alarm Snooze Function Sleep Function Display Backlight Using Earphones... - Page 5 Safety information...
-
Page 6: Safety Information
Safety information Important - Please read these instructions fully before installing or operating SAFETY PRECAUTIONS • Read all the instructions carefully before using the unit and keep them for future reference. • Check that the voltage marked on the rating label matches your mains voltage. - Page 7 Safety information Important - Please read these instructions fully before installing or operating • Unplug the unit from the mains socket during a lightning storm. • This unit will become warm when used for a long period of time. This is normal and does not indicate a problem with the unit. C A UTION RISK OF ELECTRIC SHOCK DO NOT OPEN...
- Page 8 Safety information Important - Please read these instructions fully before installing or operating Supervision • Children should be supervised to ensure that they do not play with the unit. • Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.
-
Page 10: Getting To Know Your Dab/Fm Digital Radio
Getting to know your DAB/FM Digital Radio... -
Page 11: Ready? Let's Begin
Getting to know your DAB/FM Digital Radio You’ll be up and running in no time Ready? Let’s begin... Please read these instructions carefully. They contain important information which will help you get the best from your product and ensure safe and correct installation and operation. If you require any further assistance, our technical experts are happy to help. - Page 12 Getting to know your DAB/FM Digital Radio You’ll be up and running in no time Front view Side view Hanging strap (built-in antenna) 12. Socket Cover 10. Display 13. Earphones Jack 11. Speaker 14. DC IN Socket Getting to know your DAB/FM Digital Radio...
-
Page 13: Power Source
Getting to know your DAB/FM Digital Radio You’ll be up and running in no time Power Source Mains Power 1. Connecting the unit to any other power source may cause damage the unit. 2. Unwind the mains adaptor cable to its full length. 3. - Page 14 Getting to know your DAB/FM Digital Radio You’ll be up and running in no time • During battery operation, if the battery becomes flat (about 15%), the display will shows Battery Low, you should change to AC operation and recharge the battery. During battery operation, the STANDBY button will work as a POWER ON/OFF button.
-
Page 16: Using Your Dab/Fm Digital Radio
Using your DAB/FM Digital Radio... -
Page 17: Basic Operation
Using your DAB/FM Digital Radio Let’s get started Basic Operation Powering ON/OFF If the unit is connected to the mains power for the first time, the unit will in standby mode after showing “Welcome ! Digital Radio”. STANDBY button to switch the 1. - Page 18 Using your DAB/FM Digital Radio Let’s get started 3. Press the SCROLL/SELECT/SCAN dial to select an item in the menu.(F.2) Menu Full Scan Manual Tune Prune System Time/Date Set Time/Date ALARM Auto Update SLEEP Set 12/24 Hour Factory Reset Set Date Format SW Version Menu Scan Setting...
-
Page 19: Dab Operation
Using your DAB/FM Digital Radio Let’s get started DAB Operation If the unit is connected to the mains power and then switched on from standby for the first time, the unit will automatically enter into the DAB mode and perform auto scan function. During the scan the display will show “Scanning…”... - Page 20 Using your DAB/FM Digital Radio Let’s get started DAB Manual Tune As well as the full scan function, you can manually tune the radio. This can help if you know your radio has missed stations. You will need to know which multiplex the missing radio station is in. 1.
- Page 21 Using your DAB/FM Digital Radio Let’s get started DLS (Dynamic Label Segment) Dynamic label segment is a scrolling message that the broadcaster may include with their transmissions. The message usually includes information, such as program details etc. Signal strength The display will show a slide bar to indicate the signal strength, the stronger the signal, the longer the bar will be from left to right.
- Page 22 Using your DAB/FM Digital Radio Let’s get started Date The broadcaster (radio station) provides date information automatically so there is no need to manually set this information. Storing and Recalling Stored Stations In either DAB or FM, you can store up to 10 of your favourite stations to the memory.
-
Page 23: Fm Operation
Using your DAB/FM Digital Radio Let’s get started FM Operation Switching from DAB to FM Mode To switch the unit from DAB to FM mode, press the MODE button repeatedly; until the display shows FM and the frequency. Auto Scan To search for an FM station, press the SCROLL/SELECT/SCAN dial to start the auto scan. -
Page 24: Bluetooth® Operation
Using your DAB/FM Digital Radio Let’s get started Audio Setting This unit will automatically switch between stereo and mono mode, but you can override this and switch this function manually. This can be helpful when receiving poor signal reception. Press the MENU button then turn the SCROLL/SELECT/SCAN dial to select <Audio Setting>... -
Page 25: System Setting
Using your DAB/FM Digital Radio Let’s get started • The operational range between the unit and the device is approximately 8 metres. • If the signal strength is weak, your Bluetooth receiver may disconnect, but it will re-enter pairing mode automatically. •... - Page 26 Using your DAB/FM Digital Radio Let’s get started Turn the SCROLL/SELECT/SCAN dial to select <System>, and then press SCROLL/SELECT/SCAN dial to confirm. Turn the SCROLL/SELECT/SCAN dial to select <Time>, and then press SCROLL/SELECT/SCAN dial to confirm. Turn SCROLL/SELECT/SCAN dial to select the option below and then press SCROLL/SELECT/SCAN dial to confirm.
-
Page 27: Setting The Alarm
Using your DAB/FM Digital Radio Let’s get started Press SCROLL/SELECT/SCAN dial to start the system reset, “Restarting…” will show on the display. After the reset is complete, the unit will enter Standby mode if it is using mains power, or will start DAB full scan if it is using battery power. -
Page 28: Snooze Function
Using your DAB/FM Digital Radio Let’s get started to start the following parameters. Turn the SCROLL/SELECT/SCAN dial to select and then press SCROLL/SELECT/SCAN dial to select the option below: On time Alarm On time HH:MM Duration 15/30/45/60/90 mins Source Buzzer/ DAB/ FM If you have chosen DAB/FM;... -
Page 29: Sleep Function
Using your DAB/FM Digital Radio Let’s get started Sleep Function This function allows you to program the unit to switch off by itself after a set period of time. 1. Press the MENU button to enter the menu 2. Turn the SCROLL/SELECT/SCAN dial to select “System” and then press SCROLL/SELECT/SCAN dial to confirm. -
Page 30: Using Earphones
Using your DAB/FM Digital Radio Let’s get started Using Earphones A 3.5mm type headphone socket is located at the right side of the unit. Connect earphones (not included) to the earphone socket. Always set the volume level to minimum then slowly increase the volume to obtain the desired volume level. -
Page 32: Other Information
Other information... -
Page 33: Specifications
Other information Helpful technical information Specifications Mains Adaptor Input AC 100-240V ~ 50/60Hz, 0.3A Output DC 6V 1A Output Power 2W RMS Radio Frequency FM 87.5 - 108MHz DAB 174 - 240 MHz Dimension 136mm (W) x 57mm (D) x 162mm (H) Weight ~ 0.5kgs Other information... -
Page 35: Product Support
Product support... -
Page 36: Troubleshooting
Product support Help is always at hand Troubleshooting Potential cause / solution Observation The unit does not Has the adaptor lead been correctly work (display not plugged into the mains and the DC input illuminated) jack at the side of the unit? Does the socket that is being used have power? Has the power lead been removed from... - Page 37 Product support Help is always at hand Potential cause / solution Observation DAB ‘service not This usually means that reception is available’ weak, not that there is no service. Try re-orienting the antenna or moving the radio to a different location. Check that your local area has DAB coverage on http://www.ukdigitalradio.com/coverage/ postcodesearch/...
-
Page 38: Help And Assistance
Product support Help is always at hand Help and assistance If you require any technical guidance or find that your DAB/FM Digital Radio is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 0345 604 0105. -
Page 39: Disposal
Product support Help is always at hand This appliance complies with the following EEC directives: 2006/95/EEC Low voltage directive 2004/108/EMC directive Disposal This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. -
Page 40: Guarantee
Help is always at hand Call us now and activate your 12 month guarantee Thank you for choosing Bush. Your new product is guaranteed against faults and breakdowns for 12 months. Don’t forget to register it with us today so we can provide you with our best possible after-sales service and useful updates. - Page 41 Product support Help is always at hand Important Data Protection Information If you provide us with information For quality control and training about another person, you confirm purposes, we may monitor or record that they have appointed you to act for your communications with us.
- Page 42 Contact: www.argos-support.co.uk Helpline: 0345 604 0105...
