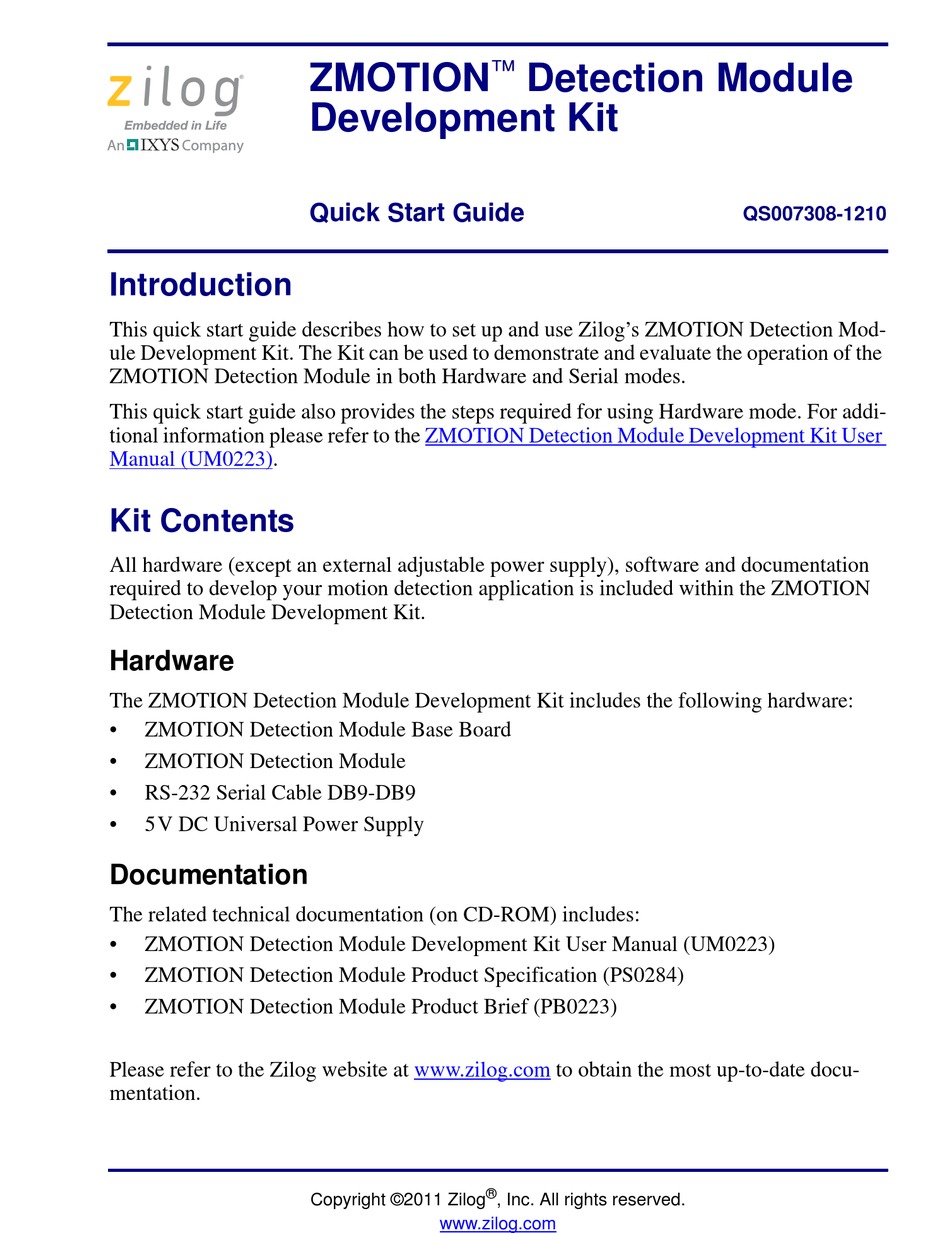

Introduction
This quick start guide describes how to set up and use Zilog's ZMOTION Detection Mod-
ule Development Kit. The Kit can be used to demonstrate and evaluate the operation of the
ZMOTION Detection Module in both Hardware and Serial modes.
This quick start guide also provides the steps required for using Hardware mode. For addi-
tional information please refer to the
Manual
(UM0223).
Kit Contents
All hardware (except an external adjustable power supply), software and documentation
required to develop your motion detection application is included within the ZMOTION
Detection Module Development Kit.
Hardware
The ZMOTION Detection Module Development Kit includes the following hardware:
•
ZMOTION Detection Module Base Board
•
ZMOTION Detection Module
•
RS-232 Serial Cable DB9-DB9
•
5 V DC Universal Power Supply
Documentation
The related technical documentation (on CD-ROM) includes:
•
ZMOTION Detection Module Development Kit User Manual (UM0223)
•
ZMOTION Detection Module Product Specification (PS0284)
•
ZMOTION Detection Module Product Brief (PB0223)
Please refer to the Zilog website at
mentation.
ZMOTION
Development Kit
Quick Start Guide
ZMOTION Detection Module Development Kit User
www.zilog.com
®
Copyright ©2011 Zilog
www.zilog.com
™
Detection Module
to obtain the most up-to-date docu-
, Inc. All rights reserved.
QS007308-1210
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for IXYS ZiLOG ZMOTION ZEPIR000102ZCOG
Summary of Contents for IXYS ZiLOG ZMOTION ZEPIR000102ZCOG
- Page 1 ™ ZMOTION Detection Module Development Kit Quick Start Guide QS007308-1210 Introduction This quick start guide describes how to set up and use Zilog’s ZMOTION Detection Mod- ule Development Kit. The Kit can be used to demonstrate and evaluate the operation of the ZMOTION Detection Module in both Hardware and Serial modes.
- Page 2 ZMOTION™ Detection Module Development Kit Quick Start Guide Figure 1. ZMOTION Detection Module Evaluation Kit Components Setting up for Initial Operation The simplest mode in which to use the module is Hardware Mode. In this mode, the sensi- tivity, ambient light level and LED “On” time are all adjusted using the controls on the Base Board.
- Page 3 ZMOTION™ Detection Module Development Kit Quick Start Guide Step 1: Unpack the Hardware Remove the ZMOTION Base Board, ZMOTION Module and Power Supply from their protective bags. ESD precautions must be used when handling the ZMOTION Base Board and the ZMOTION Module. Step 2: Attach the ZMOTION Detection Module Insert the ZMOTION Detection Module into J4 of the Base Board.
- Page 4 ZMOTION™ Detection Module Development Kit Quick Start Guide Step 3: Install the AC Plug Adapter The universal power supply kit features four different plug adapters in one box and the power supply by itself in another. The power supply ships with a slide-out plate that must be removed to insert the location-specific plug adapter.
- Page 5 ZMOTION™ Detection Module Development Kit Quick Start Guide Step 6: Demonstrate the ZMOTION Detection Module After no more than about 30 seconds, generate motion in front of the ZMOTION Detec- tion Module and observe the blue LED D1, which should flash for about 2 seconds. •...
- Page 6 ZMOTION™ Detection Module Development Kit Quick Start Guide Warning: DO NOT USE THIS PRODUCT IN LIFE SUPPORT SYSTEMS. LIFE SUPPORT POLICY ZILOG’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPO- NENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS PRIOR WRITTEN APPROVAL OF THE PRESIDENT AND GENERAL COUNSEL OF ZILOG CORPORATION.
