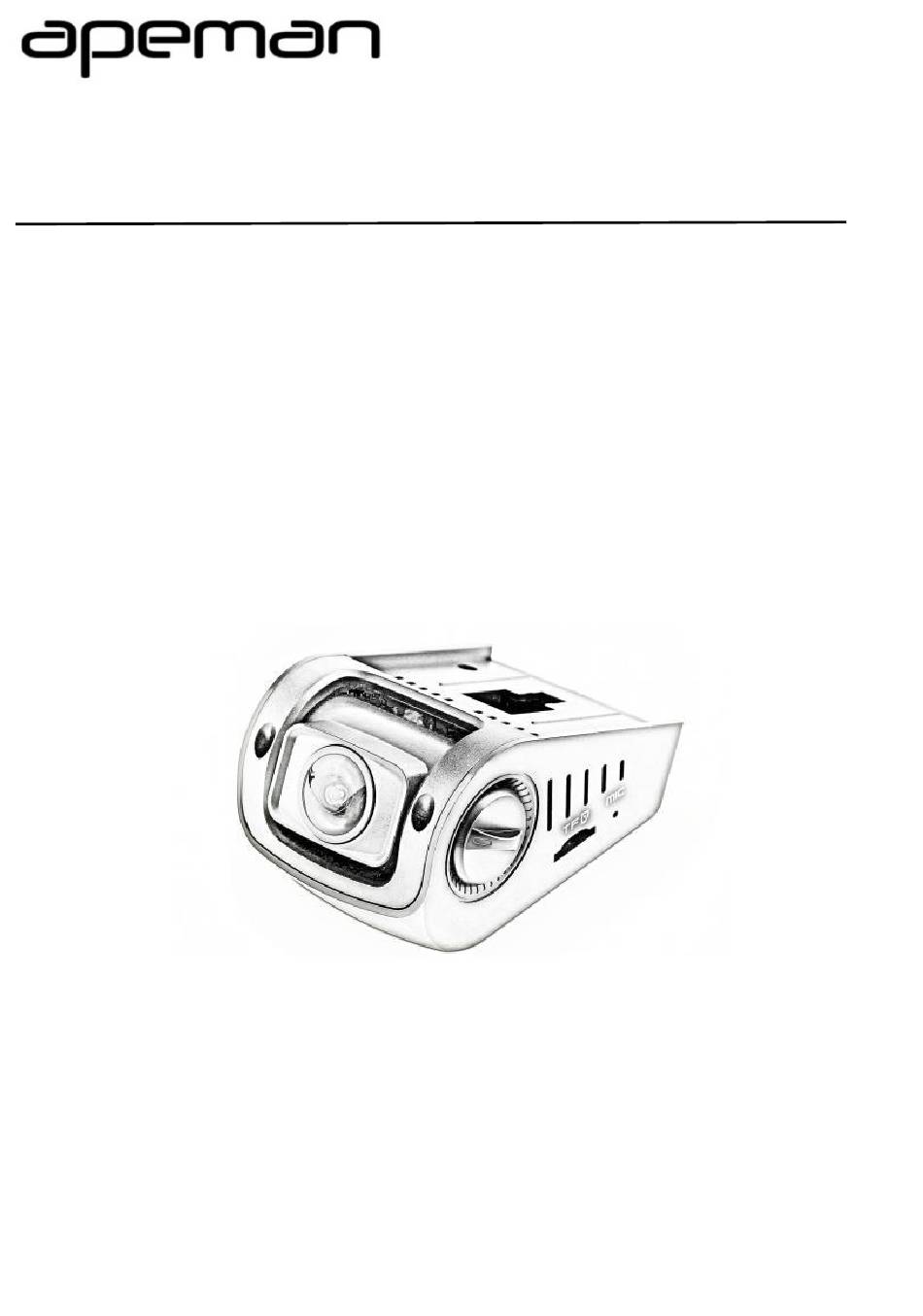

- Page 1 DASH CAMERA C560 model : Instruction Manual Thank you for purchasing an Apeman product. ■ Please read this instruction manual carefully and use it correctly. version：3.0...
-
Page 2: Package Contents
Package Contents cable cover C560 camera USB cable 5v power chord (3.5m) 3M adhesive mount Instructions Optional Accessories item product no: GR20 Apeman GPS module for DVR camera ※ Please contact our Amazon store to purchase optional items. -
Page 3: Functions And Features
Functions & features Microphone (records audo during video recording). ① micro SD (TF) card slot. ② lens angle adjustment knob (max. approx. 60') Twist adjust knob ③ USB power and data socket mini USB ④ optional GPS module socket ⑤ GPS socket external monitor connection socket ⑥... -
Page 4: Button Operation
Button operation button OFF state standby state power button long press power off after recording － screen OFF short press (screen ON with any button) start recording return to main menu MENU short press － button button recording preview still image during each setting in mode... - Page 5 mounting method 1. Install the micro SD card • use a micro SD card with a speed of class 10 or higher and a capacity of 4GB-32GB to ensure device stability. • turn the device off before inserting or removing the micro SD card. 2．Secure the connecting cable so that it does not hinder vehicle operation.
-
Page 6: Manual Recording
Basic operation and menu settings 1. Automatic recording Shooting starts when the vehicle's engine is turned on (power is turned on). At the same time, the microphone lamp and the power lamp light up, and the REC lamp starts blinking. Shooting ends when the engine is turned off (power is turned off). The unit automatically saves the video and then turns off. - Page 7 6. Date and time settings In standby mode, press the MENU button twice to display the setting screen. Move the move vernier down and select "Date and Time". Press the OK button to display the installation menu. [Hint] Press the UP / DOWN buttons to select a number. Use the MENU button to move to the next option.
-
Page 8: Specifications
Specifications storage temperature -20C ~70C range ※ 15% ~65% (RH) humidity condensation operating temperature -10C ~60C range ※ 15% ~65% (RH) humidity condensation power supply voltage DC12V/24V external voltage 48mm×71mm×43mm（ く） excl. protrusions . 67 ｇ weight approx CMOS image sensor Aptina -AR0330 visible area 170°...
