MX395 -- Low-Profile Boundary Microphone
General Description
®
Shure MX395 low-profile microphones are for use in boardrooms and other sites where aesthetics are important.
The MX395 is only 2.5 cm (1 in.) in diameter, and extends just 2 cm above the mounting surface when installed.
Despite its small size, the MX395 delivers clear, high quality sound.
Features
• Low profile, aesthetic design
• Wide dynamic range and smooth frequency response
• RF filtering with CommShield technology
• Available with logic-controlled bi-color status indicator
Model Variations
The MX395 is available in cardioid, omnidirectional, and bidirectional polar patterns, with or without an LED status
indicator, with a black, white, or aluminum finish.

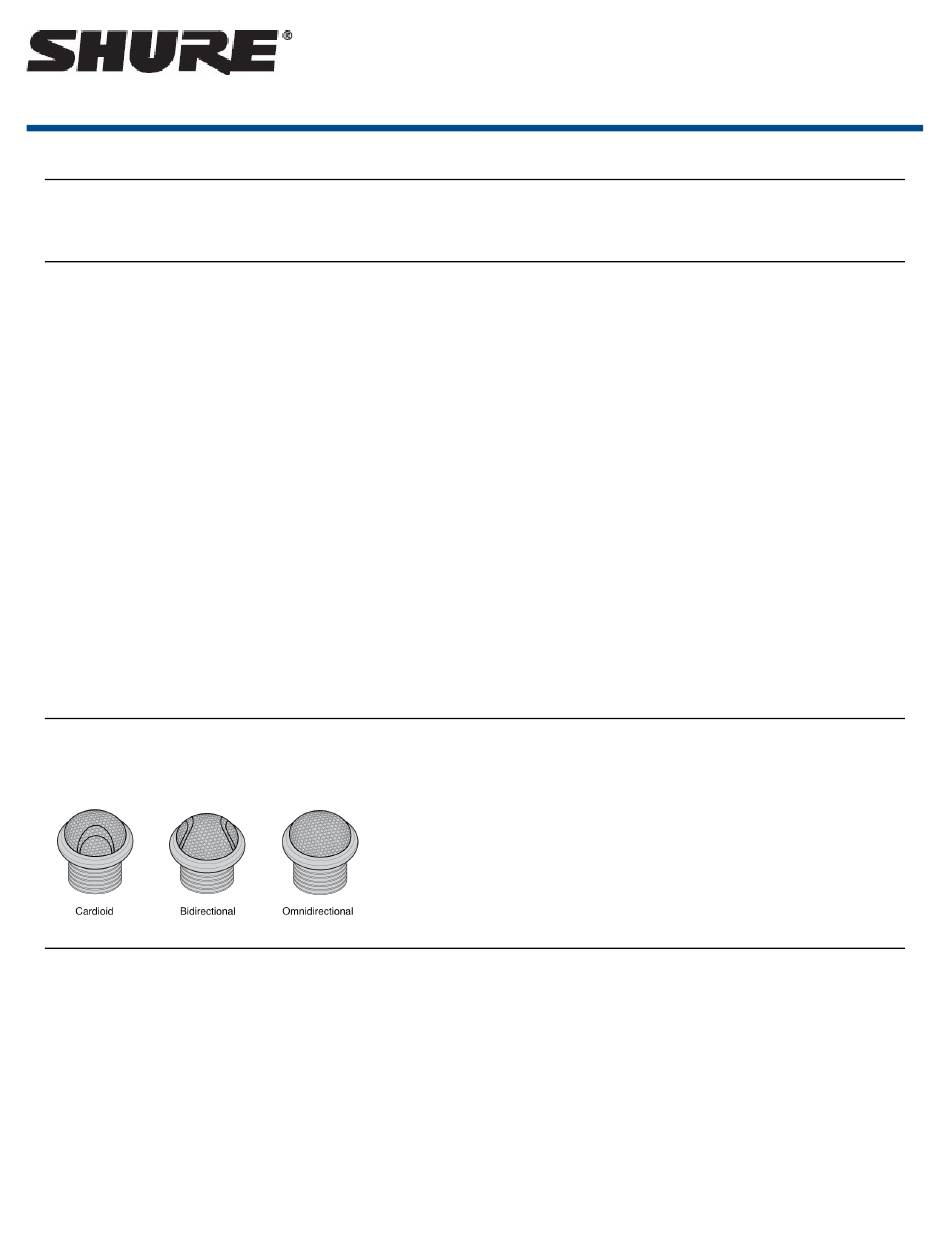

Polar Patterns
The polar pattern is indicated by the molded grille.
Microphone Placement
For best low-frequency response and rejection of background noise, place the microphone on a large, flat surface,
such as a floor, table, or lectern.
To reduce reverberance, avoid reflective surfaces above or to the side of the microphone, such as beveled sides
of pulpits or overhanging shelves.
®
1/9

Advertisement

Table of Contents
loading

Summary of Contents for Shure MX395

  • Page 1 Shure MX395 low-profile microphones are for use in boardrooms and other sites where aesthetics are important. The MX395 is only 2.5 cm (1 in.) in diameter, and extends just 2 cm above the mounting surface when installed. Despite its small size, the MX395 delivers clear, high quality sound.
  • Page 2: Dip Switches

    Shure Incorporated DIP Switches Set DIP Switch 1 up to engage the low cut filter, which attenuates frequencies by 6 dB per octave below 150 Hz. Switch Down (default) Full frequency response Low cut filter Installation Install the microphone into a tabletop as shown.
  • Page 3: Led Logic

    The LED logic may not function when connecting to devices that do not have internal "pull-up resistor" logic cir- cuits, such as ClearOne DSP products. External pull-up resistor circuits can be added for each microphone. Vistit www.shure.com/FAQ for detailed instructions. Logic Connection...
  • Page 4: Pin Assignments

    Shure Incorporated LED Indicator Response to Logic Signal at Pin 5 Pin Assignments 3-Pin XLR 5-Pin XLR...
  • Page 5: Specifications

    Shure Incorporated Accessories Furnished Accessories Specifications All measurements taken with microphone mounted on a wooden surface (76 x 76 cm) Cartridge Type Electret Condenser Frequency Response 50–17000 Hz Polar Pattern MX395/O Omnidirectional MX395/C Cardioid MX395/BI Bidirectional Output Impedance 170 Ω...
  • Page 6 Shure Incorporated Output Configuration Active Balanced Sensitivity @ 1 kHz, open circuit voltage Cardioid −35 dBV/Pa (18 mV) Omnidirectional −28 dBV/Pa (42 mV) Bidirectional −37 dBV/Pa (14 mV) 1 Pa=94 dB SPL Maximum SPL 1 kHz at 1% THD, 1 kΩ load...
  • Page 7 Shure Incorporated Cardioid 93 dB Omnidirectional 93 dB Bidirectional 94 dB Common Mode Rejection 10 to 100,000 kHz 45 dB, minimum Preamplifier Output Clipping Level at 1% THD −8 dBV (0.4 V) Logic Connections LED IN Active low (≤1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
  • Page 8 Shure Incorporated MX395/C MX395/BI MX395/O...
  • Page 9 Shure Incorporated Certifications This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking. The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance Authorized European representative: Shure Europe GmbH Headquarters Europe, Middle East & Africa Department: EMEA Approval Jakob-Dieffenbacher-Str.
