Bose ShowMatch DeltaQ SMGSB Safety And Installation Manual

ShowMatch DeltaQ
TM TM
Ground Stack Bracket Accessory: SMGSB
Safety Information
This product is intended for installation by professional installers only!
CAUTION:
• Make no modification to system or accessories. Unauthorized alterations may compromise safety, regulatory compliance, and system
performance.
• This accessory is intended for use with Bose ShowMatch DeltaQ Array loudspeakers only.
• Never use ShowMatch Ground Stack Bracket Accessory to suspend modules in overhead array applications.
• Never install the groundstack array on surfaces that are not level or even.
• Use care when adjusting the pitch bracket with full-range modules installed.
PRECAUCIÓN: Solo un instalador profesional deberá montar este producto!
• No realice alteraciones no autorizadas a este producto; esto podría comprometer la seguridad, el cumplimiento de las normas y el
rendimiento del sistema.
• Este accesorio está diseñado para usarse únicamente con altavoces Bose ShowMatch DeltaQ Array.
• No utilice nunca los accesorios de apilamiento en suelo ShowMatch para suspender los módulos en aplicaciones de matriz en suspensión.
• No instale nunca el conjunto apilado en suelo sobre superficies que no sean planas o regulares.
• Tenga cuidado al ajustar el soporte de inclinación con módulos de rango completo instalados.
L'installation de ce produit est réservée à un technicien professionnel!
ATTENTION:
• Ne pas faire des modifications non autorisées à ce produit; ce qui pourrait compromettre la sécurité, la conformité réglementaire et la
performance du système.
• Cet accessoire est destiné pour l'usage avec les haut-parleurs Bose ShowMatch Delta Q exclusivement.
• Ne jamais utiliser des accessoires d'empilage au sol ShowMatch pour suspendre des modules au-dessus du sol.
• N'installez jamais une pile d'enceintes Array sur des surfaces irrégulières ou en pente.
• Procédez avec prudence lorsque vous l'inclinaison avec des modules large bande installés.
Dieses Produkt darf nur von fachkundigen Monteuren installiert werden!
ACHTUNG:
• Keine nicht autorisierten Veränderungen am Produkt vornehmen. Diese können die Sicherheit, die Einhaltung von Richtlinien und die
Systemleistung beeinträchtigen.
• Dieses Zubehör ist ausschließlich zur Verwendung mit Bose ShowMatch DeltaQ Array Lautsprechern vorgesehen.
• Verwenden Sie das ShowMatch Ground Stack-Zubehör nie, um Module in Überkopf-Array-Anwendungen aufzuhängen.
• Installieren Sie das Ground Stack-Array nie auf Flächen, die nicht eben oder flach sind.
• Gehen Sie beim Einstellen der Querachsenhalterung vorsichtig vor, wenn alle Breitbandmodule installiert sind.
Additional Information
For additional information on ShowMatch DeltaQ Array loudspeaker modules and accessories, refer to the installation guide available at pro.Bose.com. To
request a printed copy, use the phone numbers provided.
Contact Information
Bose Corporation
The Mountain
Framingham, MA 01701 USA
Corporate Center: 508-879-7330
Americas Professional Systems,
Technical Support: 800-994-2673
Importer Information
European Union
Bose GP, Castleblayney Road, Carrickmacross, County Monaghan, Ireland
China
Bose Electronics (Shanghai) Company Limited, Part C, Plan 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone
Taiwan
Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan
Tel: 886 2 2514 7977
Mexico
Bose de México, S. de R.L. de C. V ., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F.
Tel: 001 800 900 2673
Limited Warranty
Your product is covered by a limited warranty, Visit pro.Bose.com for warranty details.
The warranty information provided with this product does not apply in Australian and New Zealand. See our website at www.bose.com/au/warranty or
www.bose.com/nz/warranty for details of the Australian and New Zealand warranty.
Array Loudspeaker
©2016 Bose Corporation. All rights reserved.
The Mountain, Framingham, MA 01701-9168 USA,
www.pro.Bose.com
All trademarks are the property of their respective owners
AM772972 Rev. 00
ShowMatch DeltaQ
TM TM
Ground Stack Bracket Accessory: SMGSB
Installation Information
Thank you for selecting Bose® ShowMatch DeltaQ array loudspeakers. This document is intended to
provide professional installers with basic installation and safety guidelines for using the ground stack
bracket accessory with ShowMatch loudspeakers. Please read this document before attempting
installation.
Use the ShowMatch Ground Stack Bracket (SMGSB) to build ground stack arrays that contain ShowMatch DeltaQ full-range
loudspeaker modules (SM5, SM10, and SM20), subwoofer modules (SMS118), or a combination of both.
The ground stack can include up to 8 full-range modules. When using subwoofer modules, one subwoofer module
replaces two full-range modules. For example, the ground stack can include a maximum of 1 subwoofer and 6 full-
range modules, or 2 subwoofers and 4 full-range modules, etc.
If the ground stack contains one or more subwoofer modules, the subwoofers must be placed on the bottom of the
stack. You can place the bottom subwoofer module directly on the ground, or attach the subwoofer module to a
ShowMatch Array Frame (SMAF) and place the frame on the ground. If you use an array frame as the stack base, it is
recommended to attach the included leveling feet to the bottom of the frame.
If the ground stack contains one or more subwoofers and one or more full-range modules, you must use the
ground stack bracket to attach the full-range modules. You can attach the ground stack bracket directly to the top
subwoofer, or attach a ShowMatch Array Frame (SMAF) to the top subwoofer, and then attach the bracket to the
frame.
If the ground stack contains full-range modules only, use the ShowMatch Array Frame (SMAF) as the base and attach
the ground stack bracket to the frame.
CAUTION: Always evaluate the safety and stability of the array to ensure it is within acceptable limits
before building. For support with evaluating array safety, contact your local Bose Sales Engineer.

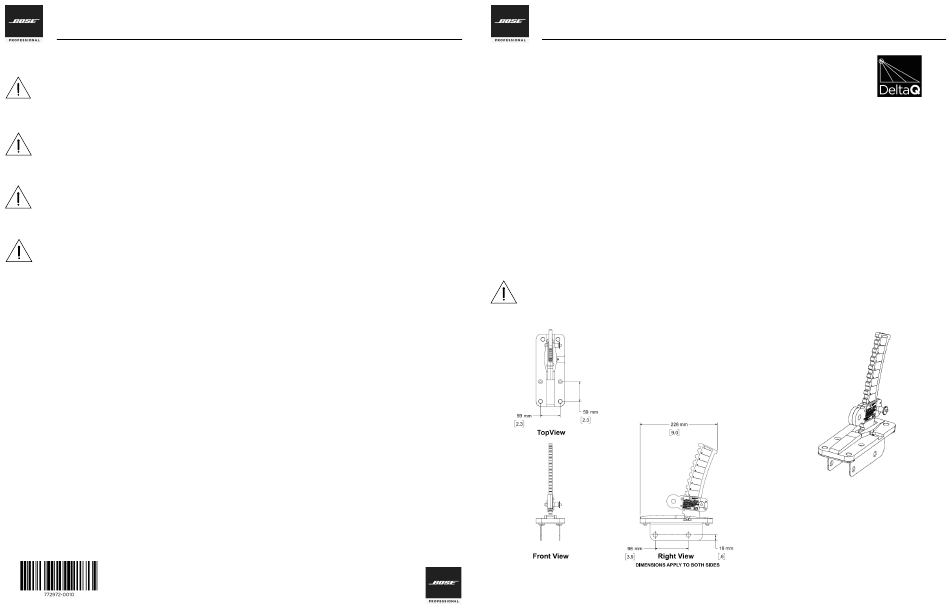

Product Dimensions
Array Loudspeaker
Ground stack bracket
