ControlSpace® EX
EX-UH USB/Headset Dante® Endpoint
EX-4ML 4-channel Mic/GPIO Dante® Endpoint
EX-8ML 8-channel Mic/GPIO Dante® Endpoint
Installation and Operation Guide
Guía de instalación y funcionamiento
Guide d'installation et d'utilisation
Installations- und Bedienungsanleitung
Manuale di installazione e funzionamento
Installatie- en bedieningshandleiding
Advertisement
Table of Contents
Related Manuals for Bose ControlSpace EX-UH
Summary of Contents for Bose ControlSpace EX-UH

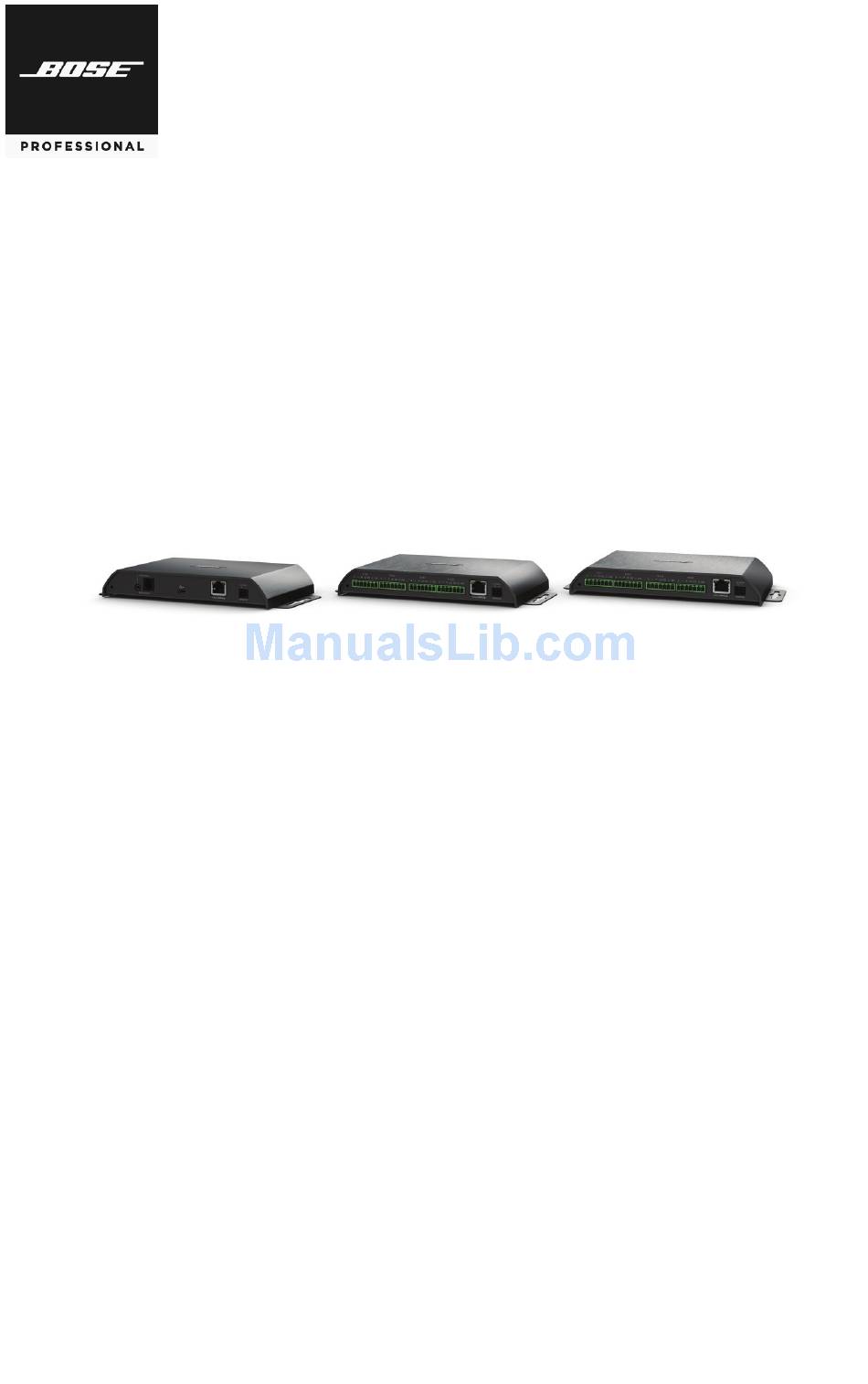

- Page 1 ControlSpace® EX EX-UH USB/Headset Dante® Endpoint EX-4ML 4-channel Mic/GPIO Dante® Endpoint EX-8ML 8-channel Mic/GPIO Dante® Endpoint Installation and Operation Guide Guía de instalación y funcionamiento Guide d’installation et d’utilisation Installations- und Bedienungsanleitung Manuale di installazione e funzionamento Installatie- en bedieningshandleiding...
-
Page 2: Important Safety Instructions
• All Bose products must be installed in accordance with local, state, federal and industry regulations. It is the installer’s responsibility to ensure installation of the product is performed in accordance with all applicable codes, including local building codes and regulations. -
Page 3: Instrucciones De Seguridad Importantes
área residencial podría llegar a provocar interferencias perjudiciales, en cuyo caso el usuario deberá corregir dichas interferencias por cuenta propia. Los cambios o las modificaciones no aprobadas expresamente por Bose Corporation podrían invalidar la autoridad del usuario para operar el equipo. -
Page 4: Instructions Importantes Relatives À La Sécurité
• Tous les produits Bose doivent être installés dans le respect des réglementations locales et nationales. Il est de la responsabilité de l’installateur professionnel de s’assurer que l’installation du produit est effectuée conformément à tous les codes applicables et dans le respect des réglementations en vigueur, y compris dans le cadre des réglementations du bâtiment où... -
Page 5: Wichtige Sicherheitshinweise
Wohnungen können erhebliche Störungen des Funkverkehrs verursacht werden. Eventuell daraus entstehende Kosten trägt allein der Benutzer des Geräts. Veränderungen am Gerät, die nicht durch die Bose Corporation autorisiert wurden, können zur Folge haben, dass die Betriebserlaubnis für das Gerät erlischt. - Page 6 AVVERTENZE: • Tutti i prodotti Bose devono essere installati in conformità con gli standard locali, statali, federali e di settore. È responsabilità dell’installatore assicurare che l’installazione del prodotto sia eseguita in conformità con tutte le normative vigenti, compresi i regolamenti locali per l’integrazione degli apparati. Prima di installare il prodotto, chiedere informazioni all’autorità locale preposta.
-
Page 7: Belangrijke Veiligheidsinstructies
Gebruik van dit apparaat in een woonwijk kan schadelijke storing veroorzaken. In dit geval moet de gebruiker de storing op eigen kosten verhelpen. Veranderingen of aanpassingen die niet uitdrukkelijk zijn goedgekeurd door Bose Corporation kunnen leiden tot het vervallen van de bevoegdheid van de gebruiker om dit apparaat te gebruiken. -
Page 8: Product Overview
Product Overview Thank you for purchasing a Bose® ControlSpace® EX Dante® endpoint. Each endpoint provides an audio interface for using Dante, a digital media networking technology from Audinate®. ControlSpace EX Dante endpoints are available in three models: EX-UH (USB/headset), EX-4ML (4-channel mic/GPIO), and EX-8ML (8-channel mic/GPIO). -
Page 9: Mounting Instructions
Installation and Operation pro.Bose.com Mounting Instructions The EX endpoints can be mounted using one of three methods: Mounting wing brackets as shipped (outside mount), mounting wing brackets rotated 180 degrees (inside mount), mounting using the the optional EX Mounting Bracket (PN 790080). - Page 10 Installation and Operation pro.Bose.com Mount Using EX Mounting Bracket Install the Mounting Bracket To mount the endpoints using the optional EX Mounting Bracket Accessory (PN 790080):: Use the included template to mark the correct drilling locations on the mounting surface.
-
Page 11: Front And Rear Panels
Installation and Operation pro.Bose.com Front and Rear Panels EX-UH USB/Headset Endpoint EX-UH Front View q +12 V DC in w Dante/PoE+ in e USB (MicroUSB) EX-UH Rear View r RJ-9 telephone headset in/out t 3.5 mm TRRS analog in/out y Reset button... - Page 12 With PoE+, the total power must not exceed 24 watts. If you exceed the total power available on one PoE/PoE+ cable, consider running a second CAT 5 cable, or use a Bose accessory power supply. Powering Using Optional External Power Supply...
-
Page 13: Network Configuration
(2) USB outputs (USB L, USB R) and one (1) analog output (Hset Mic). The USB and analog IO are transmitted or received over Dante; thus, the EX-UH appears as a 4-input, 3-output device in the Bose ControlSpace Designer software and the Dante controller software. ControlSpace Designer supports “Auto Dante Programming”... -
Page 14: Additional Information
The device can be set to a static IP address using Audinate’s Dante Controller software or Bose’s ControlSpace Designer software, assuming the PC IP address is on the same subnet. If a static IP address is set and then lost, such that ControlSpace Designer no longer connects to the device, press and hold the reset button for five seconds to restore the factory default IP settings. -
Page 15: Audio Connections
Installation and Operation pro.Bose.com Audio Connections EX-UH Connections The EX-UH allows you to use a telephone handset, cell phone, or PC to connect a call. The EX-UH supports both analog and USB audio connections to cellphones/PCs. Telephone Handset Connection To connect to a call using a telephone handset, connect the headset jack on the telephone handset to the RJ-9 HEADSET connection on the EX-UH endpoint, using the included RJ-9 cable. - Page 16 Installation and Operation pro.Bose.com USB Audio Cellphone/PC Connection Use the supplied USB cable (USB micro to USB A), or a cable appropriate to your device, to connect the USB port on the EX-UH to a PC or cellphone. Using the EX-UH with a telephone or PC equipped with a USB port...
-
Page 17: Audio Wiring
Installation and Operation pro.Bose.com EX-4ML and EX-8ML Connections Audio Wiring The EX-4ML and EX-8ML endpoints include four (4) or eight (8) balanced, mic/line analog audio inputs, respectively. Connect devices to these inputs using the included 3.81 mm, 7-pin Euroblock connectors. - Page 18 Installation and Operation pro.Bose.com Shure MX396 Tri-Element Mic Signal Mic Wire Function EX UTB Color Connector Mic 1 Audio + White Audio + Ch 1 + Mic 1 Audio - Green Audio - Ch 1 - Mic 2 Audio +...
- Page 19 Installation and Operation pro.Bose.com Clock Audio CS 1S Mic Signal Function CAT 5 CAT 5 Color EX UTB Wire Connector Color Mic 1 Audio + Audio + Ch 1 + Mic 1 Audio - Black or Audio - Ch 1 -...
- Page 20 Installation and Operation pro.Bose.com Clock Audio CS 3S-RF Mic Signal Mic Wire Function CAT 5 CAT 5 Color EX UTB Color Connector Mic 1 Audio + Audio + Ch 1 + Mic 1 Audio - Black Audio - Ch 1 -...
- Page 21 Installation and Operation pro.Bose.com Audio Technica ES947 Microphone and AE8657/LED Mount Mic Signal Mic XLR Function EX UTB Connector Audio + Pin 2 Audio + Ch 1 + Audio - Pin 3 Audio - Ch 1 - Shield Pin 1...
-
Page 22: Technical Information
Technical Information pro.Bose.com Technical Specifications Audio Inputs Input Channels EX-UH: RJ-9 mic/speaker headset jack; 3.5 mm TTRS unbalanced stereo input/microphone jack; Type B/Device USB EX-4ML: Four (4) analog, balanced microphone/line level 3.81 mm Euroblock connectors, 7-pin EX-8ML: Eight (8) analog, balanced microphone/line level 3.81 mm... -
Page 23: Contact Information
Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan Tel: 886 2 2514 7977 Mexico Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Tel: 001 800 900 2673... - Page 24 ©2017 Bose Corporation, All rights reserved Framingham, MA 01701-9168 USA pro.Bose.com All trademarks are property of their respective owners AM788759 Rev. 00 November 2017...
