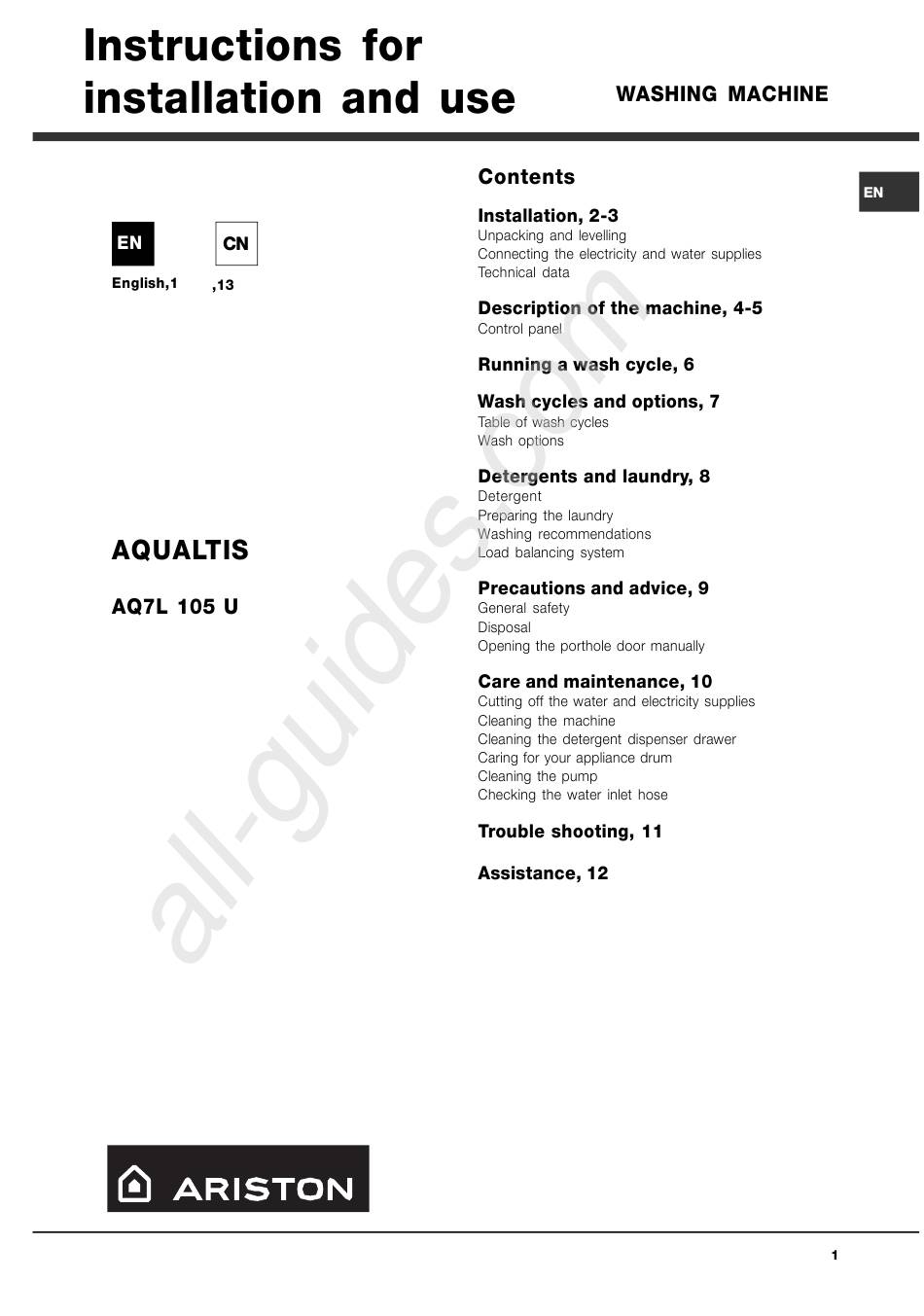

Summary of Contents for Ariston AQUALTIS AQ7L 105 U
Page 1
All manuals and user guides at all-guides.com...
Page 2
All manuals and user guides at all-guides.com Before connecting the inlet hose to the water supply, run the water until it is perfectly clear. (see figure) see figure (see figure) (see next page).
Page 3
All manuals and user guides at all-guides.com (see figure). (see opposite); (see opposite);...
Page 4
All manuals and user guides at all-guides.com pre-wash compartment Before pouring in the (see detergent, make sure that figure). extra compartment 3 has been removed. main wash compartment extra compartment: The use of extra compartment 3 excludes the pre- wash function.
Page 5
All manuals and user guides at all-guides.com Table of wash cycles. (see Running a wash Running a wash cycle cycle). (see Running a wash cycle). (see Running a wash cycle). (see Running a wash cycle).
Page 6
All manuals and user guides at all-guides.com Description of the machine. Cottons...
Page 7
All manuals and user guides at all-guides.com Detergent and additives Max. Max. Max. Cycle Icon Description of the wash cycle temp. speed load duration Detergent Fabric (°C) (rpm) (kg) Bleach for wash softener Cottons wash cycles Cottons (Add detergent to the relevant compartment). Cottons (1): Cottons (2): Cottons (3)
Page 8
All manuals and user guides at all-guides.com (see figure) ¾ Table of wash cycles...
Page 9
All manuals and user guides at all-guides.com figure see overleaf...
Page 10
All manuals and user guides at all-guides.com (see figures); figure ; (see figure). figure ;...
Page 11
All manuals and user guides at all-guides.com see Assistance see Installation). see Installation). see Wash cycles and options (Wash cycles and options). see Installation see Installation). see Installation see Installation). see Detergents and laundry Installation see Care and maintenance Installation see Precautions and tips).
Page 12
All manuals and user guides at all-guides.com Trouble shooting...
Page 13
All manuals and user guides at all-guides.com AQ7L 105U 安装使用说明书 洗衣机 内容 安装 拆包和校平 水电连接 技术参数 洗衣机 控制面板 程序开始 程序表 洗涤选择 洗涤剂和衣物 洗涤剂 准备衣物 洗涤建议 负载平衡系统...
Page 14
All manuals and user guides at all-guides.com 建议 安全 安排 手动开门 维护 关闭水电 清洁电器 清洗洗涤剂盒 保养洗衣机门和鼓 清洁泵 检查进水管 故障排除 帮助...
Page 15
All manuals and user guides at all-guides.com 安装 将此使用说明书放在安全的地方以备使用。 如果洗衣机搬动或出 售,可将此说明书和机器一起给使用者。 仔细阅读此说明书,它包含了安装,使用和安全的重要事项。 拆包和校平 1. 拆开包装,先检查洗衣机是否完好无损,如果有疑问,迅速与有 资格的技术人员联系。 2.机器面后面板用四个螺丝支撑固定。如图示: 使用机器前,去掉螺丝和与橡胶管相 连的隔板 3.用所提供的 4 个塑料塞堵住孔洞。 4.保存所有部件, 以备今后搬动机器所用。 !包装材料请不要作为儿童的玩具...
Page 16
All manuals and user guides at all-guides.com 校平 1. 将机器安放在平地上,不要靠墙,家具等等。 2. 如果不是很平, 调整洗衣机前脚,上盖的倾斜角度不超过 2 度。 !正确校平 洗衣机可避免噪音和晃动等等。 !如放置在地毯上,要保持通风良好。 水电连接 连接进水管 1. 进水软管连接到机器后面右上角有螺纹的连接口上。...
Page 17
All manuals and user guides at all-guides.com 2. 将密封圈 A 插入进水管的底部并用螺丝将进水软管与 3/4” BSP 螺纹的凉水龙头连接。连接前,试验水的流动性。 3. 确认水管不要弯曲。 !水压大小要符合数据板上数据范围 !请确定用新的进水管 连接排水管 洗衣机背后有两个钩子, (右或左) ,排水软管固定在上面;将另一端 插在一个竖管中或放在水池的边上,防止进分管弯曲,放置高度范围 65—100cm;如果低于 65cm(从地面算起) ,一定要将其固定在机器 背面板上部的钩子上。 如果软管注入水池,装配上塑料导向管并固定在水龙头上。软管一端 必须固定,使之不会浸于水中。 建议:加长排水管没有好处,万一确实需要,加长管直径一定与原软 管直径一致而长度不要超过 150cm;如果居住在楼上,可能存在放泄 弯管问题,导致洗衣机连续不断地注水和排水。 为避免这类问题的出现,可在商店购买到专用的防泄弯管阀门。...
Page 18
All manuals and user guides at all-guides.com 电源连接 洗衣机接电前必须确认: 电源插座是否能负荷洗衣机最大耗电量并且符合有关规定; 电压在机器要求范围内; 插座要与洗衣机插头相配,如果不相配,不能使用转换器,要更 换插座或插头; 家用电器必须装备“接地”系统。...
Page 19
All manuals and user guides at all-guides.com 技术参数 AQ7L 105 U 型号 外型尺寸 宽 59.5 cm;高 85 cm;厚 58 cm 1—7 kg 能力 电源 请参照铭牌 最高水压 1MPa(10bar); 水 最低水压 0.05Mpa(0.5bar); 筒容积 52 升 转速 最高达 1000rpm 棉织物程序;温度 60℃,负荷 7 kg 控制程序符合...
Page 20
All manuals and user guides at all-guides.com 洗衣机 门 用把手来开关门(如图所示)...
Page 21
All manuals and user guides at all-guides.com 洗涤剂盒 在洗衣机内部,具体信息可参阅“洗涤剂盒和织物”一节 1:预洗涤用的洗涤剂(洗衣粉) 2:洗涤用洗涤剂(粉状或液状) 液体洗涤剂放入后请及时开始洗衣工作。 3:添加剂(柔软剂,香料等)漂白等 !洗涤剂盒 3 不包括预洗功能 添加剂不要超过格架。 备用 模式 为了 更好的节能 此款型号带有备用模式,如果 30 分钟不进行操作情况将自动 进入备用模式。按开始/关闭按钮机器会再次开始。...
Page 22
All manuals and user guides at all-guides.com 控制面板 开 - 关/取消 有指示灯 ,按此键可以方便的开关机器。绿灯亮表示机器开 着,要在洗涤过程中关闭机器,按住此按钮 3 秒钟即可。如果 在洗涤过程中关闭机器,程序也随之取消。 洗涤程序键 可以任意旋转调节,合适的程序设置可参阅“程序 表”这节,洗涤过程中此按钮被锁定。 温度: 按此钮调节温度或免除温度设定, 显示灯可指示 (参阅 “开 始洗涤”一节) 。 转速:调节甩干速度或免除甩干,显示灯可指示(参阅“开始洗 涤”一节) 。 延迟洗涤:设置延时洗涤程序,显示灯可指示(参阅“开始洗涤” 一节) 。...
Page 23
