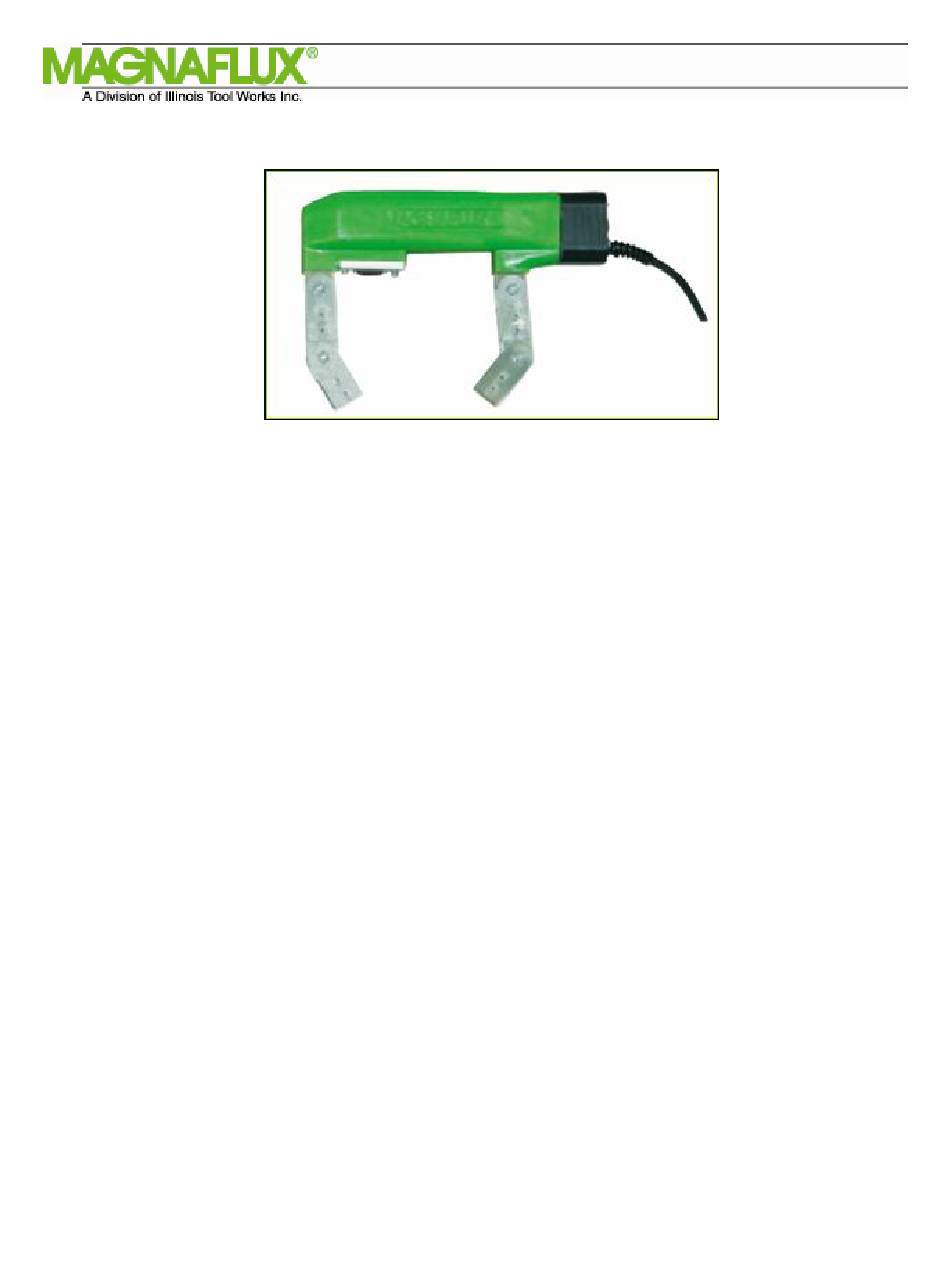

Y-7 AC/DC Yoke Operating Instructions
The Y-7 is an articulating leg magnetic yoke providing A.C. or D.C. magnetic fields for defect detection in
ferromagnetic materials. The Y-7 has the capability of demagnetization, if required.
Specifications:
Power Source:
Current Draw:
Mechanical Capacity:
Magnetic Field:
Pull Force:
Yoke Weight:
Controls:
Manual:
Duty Cycle:
Caution!
1. DO NOT connect the power cord to a battery for portable work-power source must be as
noted on the nameplate.
2. DO NOT change the AC/DC selector switch while the unit is energized.
The Y-7 is configured for 115 volt, 50/60Hz.1 phase, OR 220 volt, 50 Hz.1 phase.
115V version - 4 amps / 230V version - 2 amps.
Minimum-maximum distance across poles: 1" to 12".
A.C: Constant level. D.C: Pulsed.
The Magnaflux Y-7 yoke is designed to lift 10 lbs or 40 lbs as specified in
ASTM E-444. Please refer to this specification for more details.
7.7 pounds.
Electronic - Solid state contained within the housing.
Momentary, push to test switch A.C./D.C. selector switch
33% with 80 seconds "ON" maximum.
www.magnaflux.com
Advertisement
Related Manuals for Magnaflux Y-7
Summary of Contents for Magnaflux Y-7
-
Page 1: Specifications
Y-7 AC/DC Yoke Operating Instructions The Y-7 is an articulating leg magnetic yoke providing A.C. or D.C. magnetic fields for defect detection in ferromagnetic materials. The Y-7 has the capability of demagnetization, if required. Specifications: Power Source: The Y-7 is configured for 115 volt, 50/60Hz.1 phase, OR 220 volt, 50 Hz.1 phase. - Page 2 90 degrees for the second inspection. Using the powder blower bulb, the area between the legs of the yoke is dusted lightly with MAGNAFLUX powder and inspected closely for cracks or other indications. Current should remain "on" (continuous method).
- Page 3 Warranty: The Y-7 yoke is warranted against defective material and workmanship for 1 year. In the event service is required, the yoke must be returned, transportation prepaid, to our factory. The obligation of MAGNAFLUX Corporation is limited to the repair or replacement of the defective unit. No other obligation is expressed or implied.
