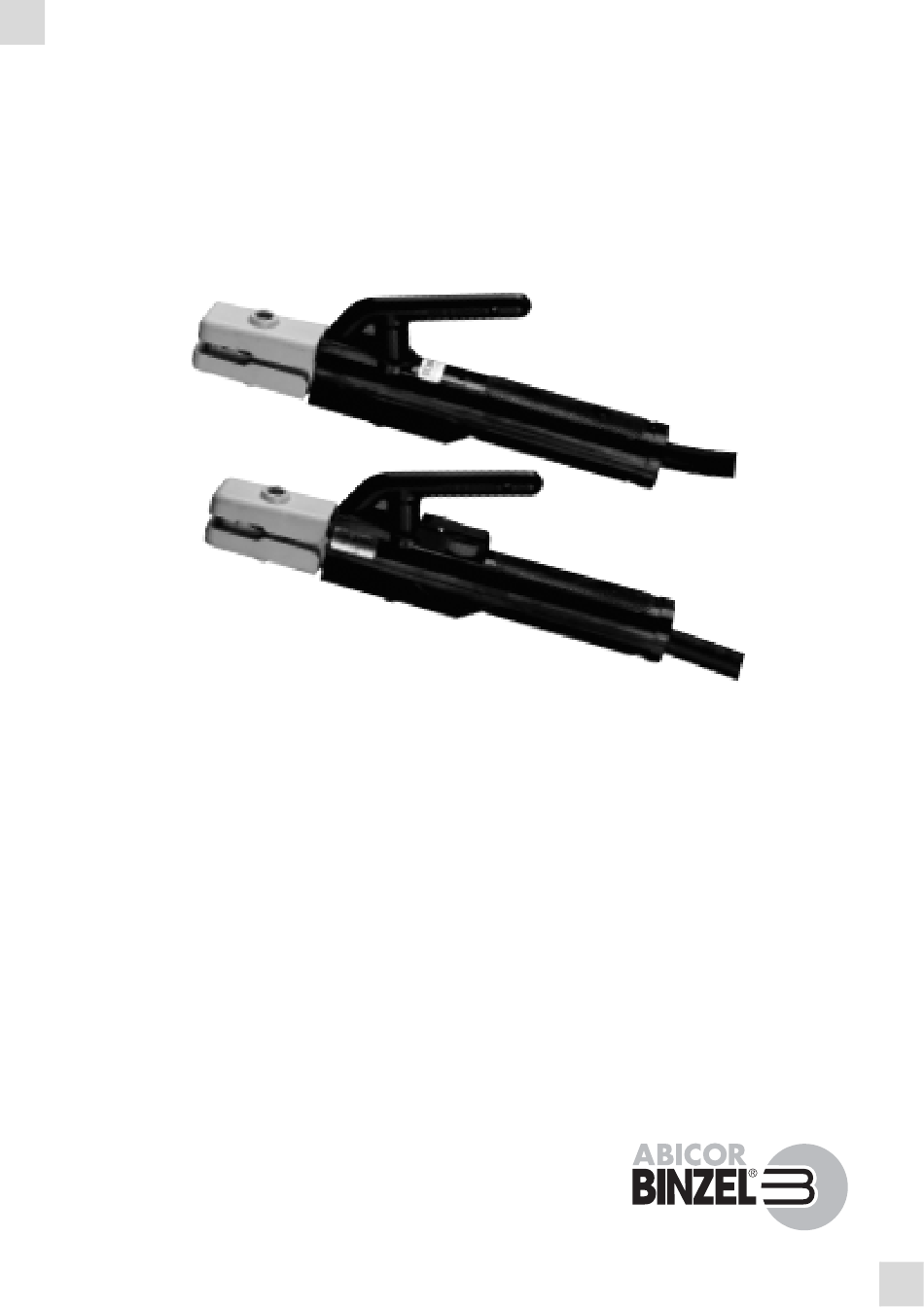

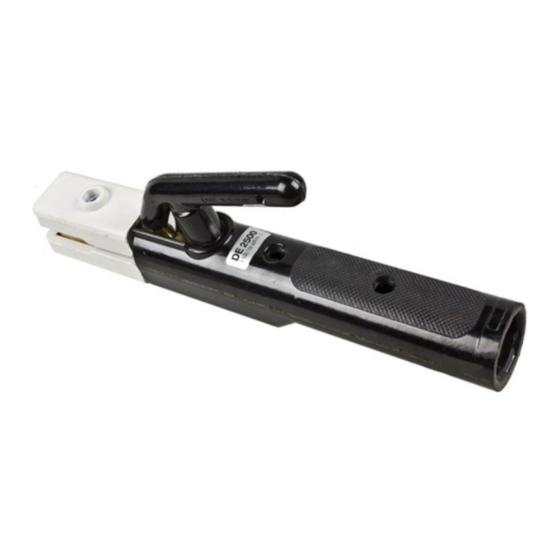

- Page 1 T E C H N O L O G Y F O R T H E W E L D E R ´ S W O R L D . EN Operating instructions Electrode holders EN Series 2000/2000K/2000P with welding line and welding current connector www.binzel-abicor.com...
- Page 2 All brand names and trademarks that appear in these operating instructions are the property of their respective owners/ manufacturers. Our latest product documents as well as all contact details for the ABICOR BINZEL national subsidiaries and partners worldwide can be found on our website at www.binzel-abicor.com...
- Page 3 These operating instructions describe the handling of the spring loaded electrode holder. The spring loaded electrode holder may only be operated using original ABICOR BINZEL spare parts. 1.1 Marking This product fulfills the requirements that apply to the market to which it has been introduced.
-
Page 4: Product Description
3 Product description EH 2000/2000K/2000P 3 Product description WARNING Hazards caused by improper use If improperly used, the device can present risks to persons, animals and material property. • Use the device according to its designated use only. • Do not convert and modify the device to enhance its performance without authorization. •... - Page 5 EH 2000/2000K/2000P 4 Putting into operation 4 Putting into operation NOTICE • Only qualified personnel are permitted to perform work on the device or system. • Make sure that the rod electrode is tightened properly. 1 Connect the electrode holder to the welding power source. 4.1 Equipping the electrode holder 1 Clamp the rod electrode into the provided clamping slots of the spring loaded electrode holder.
- Page 6 7 Spare parts EH 2000/2000K/2000P Electrode holder Welding line plug Fore part Welding line Handle Insulating jaw Fig. 1 Electrode holders of the Series 2000 with cable lug connection Type DE 2200 DE 2300 DE 2400 DE2500 Electrode holder 512.060.1 512.070.1 512.080.1 512.090.1...
- Page 7 EH 2000/2000K/2000P 7 Spare parts Type DE 2200 K DE 2300 K DE 2400 K DE 2500 K Handle 512.D022 512.D033 512.D043 512.D043 Ferrule for welding cable 16 mm 511.D097 cross-section 25 mm 511.0048 35 mm 511.D010 511.D010 50 mm 511.0065 511.0065 70 mm...
- Page 8 118.D018.1 Insulating jaw 512.D031 512.D041 Tab. 1 Spare parts of the Series 2000P with potentiometer ABICOR BINZEL Schweißtechnik Dresden GmbH & Co.KG Postfach 28 01 38 • D–01159 Dresden Tel.: ++49 (0) 351/ 4203–30 Fax: ++49 (0) 351 / 4203–340 Email: abd@binzel-abicor.com...
